Challenger MX750 EPS Yellow (37CYCCKK010) - Cub Cadet 4x4 Utility Vehicle (2020) Engine - Crankshaft Parts Diagram

4x4 Utility Vehicle

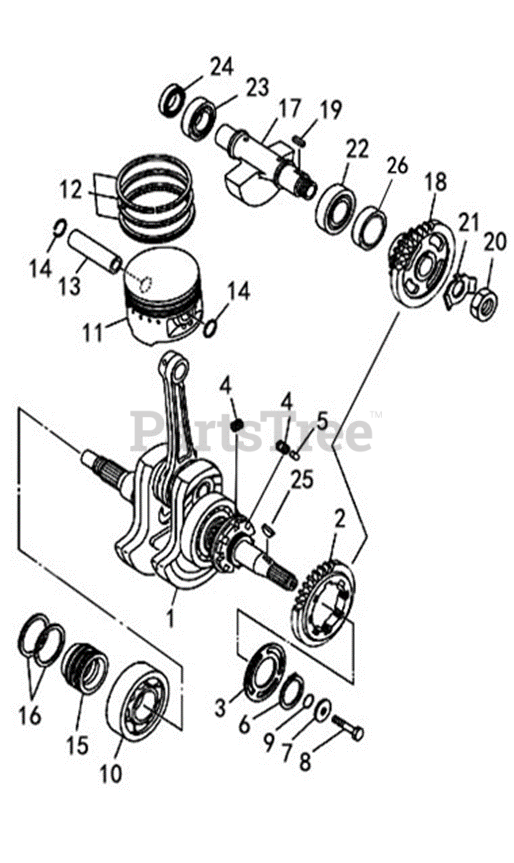

Engine - Crankshaft Parts Diagram

  • Title
1

Cub Cadet 503-02859

CRANKSHAFT ASSEMBLY

$1775.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00994

DRIVING GEAR BALANCE SHAFT

$205.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00995

OUTER BALANCE GEAR LOC PLATE

$

$

Not available

4

Cub Cadet 503-01296

BALANCE GEAR BUFFER SPRING

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00997

BALANCE GEAR SPACER PIN

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00998

CIRCLIP FOR SHAFT

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01297

WASHER 10 x 32 x 5

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01000

HEX HEAD BOLTS M10X1.25X40

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01001

O-RING 16X3

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01002

BEARING 6307

$101.99

$

Usually ships in 3-6 days

0

$248.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01004P

PISTON RING SET

$162.99

$

In Stock, only 2 left!

0

13

Cub Cadet 503-01005

PISTON PIN

$27.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01006

PISTON PIN CLIP

$5.99

$

In Stock, Qty 6

0

15

Cub Cadet 503-01007

SEALING RING BUSHING

$66.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01008

SEALING RING

$27.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01009

BALANCE SHAFT ASSEMBLY

$183.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-01010

BALANCE DRIVEN GEAR ASSEMBLY

$240.99

$

Usually ships in 3-6 days

0

19

$18.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-01012

HEX NUT M18X1

$16.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-01013

TAB WASHER A

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet 503-01014

BEARING 6305

$113.99

$

In Stock, only 1 left!

0

23

Cub Cadet 503-01015

BEARING 6304

$54.99

$

In Stock, only 1 left!

0

24

Cub Cadet 503-01016

OIL SEAL 20X30X7

$33.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

26

Cub Cadet 503-01018

BALANCE DRIVEN GEAR BUSHING

$30.99

$

In Stock, only 1 left!

0
