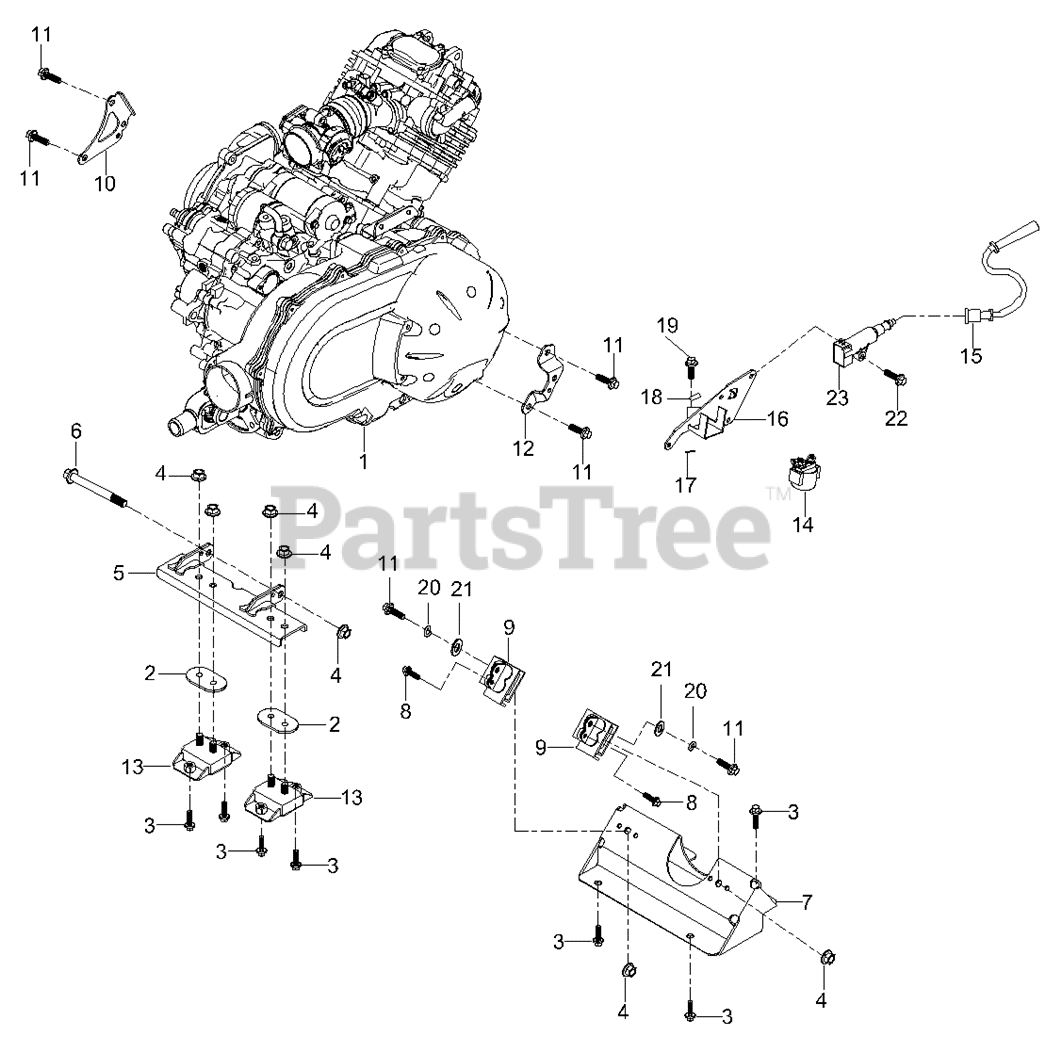

Engine Parts Diagram

  • Title
1

Cub Cadet 503-02846

COMPLETE ENGINE - 750
(Superseded to 503P02846)

$6842.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 503-02847

COMPLETE ENGINE - 550
(Superseded to 503P02847B)

$

$

Not available

2

Cub Cadet 503-01374

ENGINE DAMPENING WASHER

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-02223

HEX BOLT & WASHER ASSEMBLY

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01375

LOCK NUT M10X1.25

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01376

ENGINE MOUNTING BRACKET ASM

$107.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-02036

HEX BOLT (M10x1.25x180)

$9.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01378

ENGINE MOUNTING BRACKET II

$130.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00011

HEXAGON FLANGE BOLT M6X16

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01379

ENGINE MOUNTING REAR ASSEMBLY

$25.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-02734

ENGINE MOUNT BRACKET (REAR RH)

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00042

HEXAGON FLANGE BOLT M8X20

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-02733

ENGINE MOUNT BRACKET (REAR LH)

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-02016

ENGINE MOUNTING DAMPENER

$51.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-02735

STARTER RELAY

$72.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00545

IGNITION CABLE (750cc Engine)

$81.99

$

In Stock, only 3 left!

0

15

Cub Cadet 503-01855

IGNITION CABLE (550cc Engine)

$60.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-02761

IGNITION COIL MOUNT

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-02826

FOAM CUSHION

$1.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-02770

STARTER RELAY LATCH

$1.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00021

CROSS PLATE HEAD SCREW M6X12

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00005

SPRING WASHER-8

$6.49

$

In Stock, only 4 left!

0

21

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 503-00398

HEXAGON FLANGE BOLT M6X40

$5.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-00543

IGNITION COIL

$159.99

$

In Stock, only 1 left!

0
