Challenger MX750 EPS Camo (37DYCCLK010) - Cub Cadet 4x4 Utility Vehicle (2021) Differential - Rear Parts Diagram

4x4 Utility Vehicle

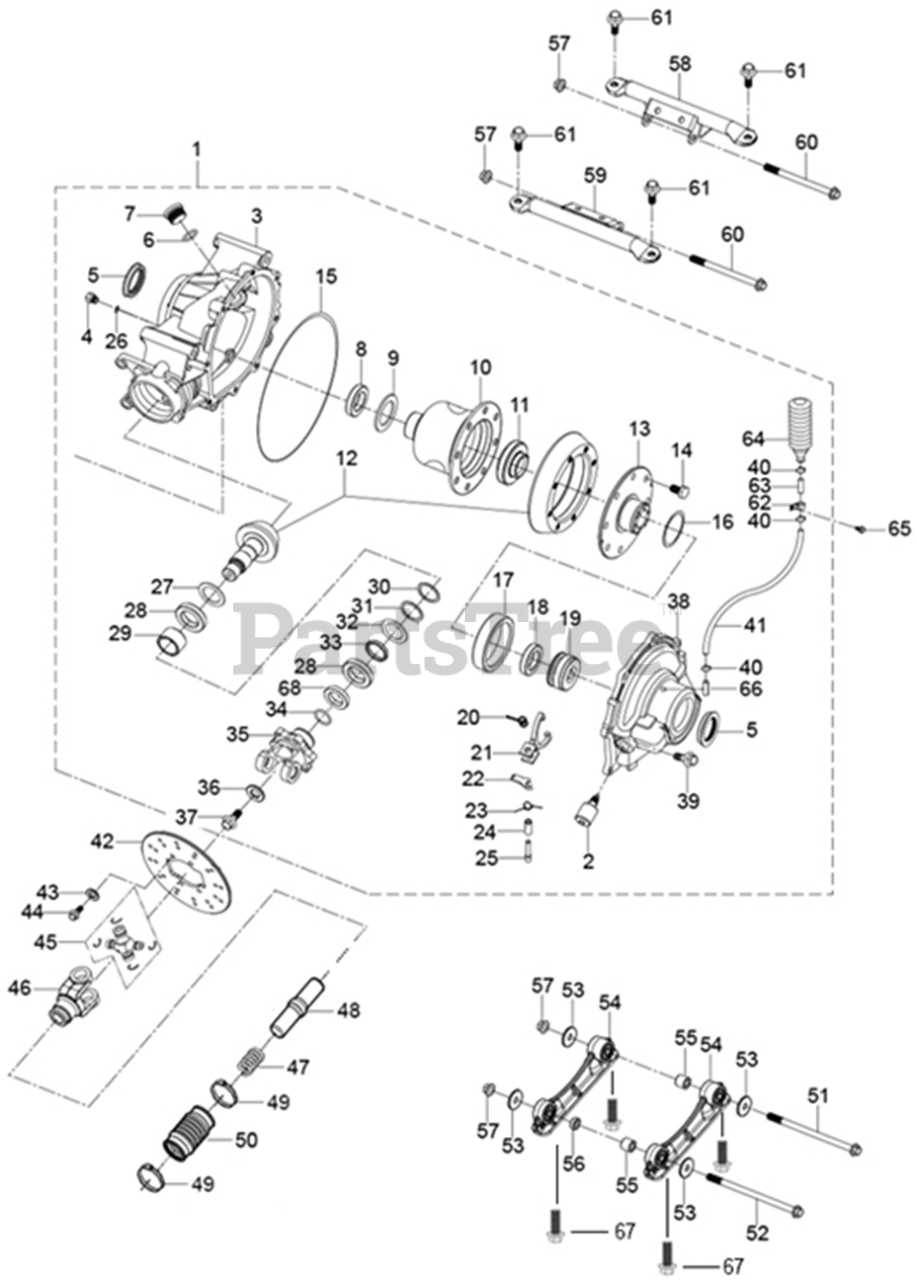

Differential - Rear Parts Diagram

  • Title

1

Cub Cadet 503-01418B

REAR DIFFERENTIAL ASSEMBLY

$2495.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01419A

REAR DIFF LOCK SOLENOID

$201.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01420

GEARCASE - RH

$714.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01421

DRAIN PLUG

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01422

SEAL 35X52X7

$34.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01423

O-RING 23X3

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01424

OIL FILL PLUG

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01425

BEARING - ROLLER BALL 32008

$53.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01426

SPACER 40.5X57X0.1

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01428

DIFFERENTIAL CASE

$780.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01429

SIDE GEAR

$305.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-02747

DIFF RING GEAR

$752.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01431

SEAT SIDE GEAR

$81.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01432

HEX HEAD BOLT M10X1.25-20

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-01433

O-RING 12X192

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01434

SPACER 50.5X60X0.1

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01435

BEARING CONE

$59.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-01436

BEARING ROLLER BALL 32010

$95.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-01437

DRIVE CLUTCH

$92.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-01438

TORSION SPRING II

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-01439

SHAFT FORK

$28.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-01440

LIMIT STOP FORK

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01441

TORSION SPRING I

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-01442

TUBE

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01443

BOLT STOPPER

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01444

O-RING 8X1

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01445

SPACER 30.6X46X0.1

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-01446P

BEARING ROLLER BALL 32206

$69.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-02748

SPACER 30.5x38x15

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01448

SEAL 40X72X7

$42.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-01449

WASHER - FLAT 30.5X38X2

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 503-01445

SPACER 30.6X46X0.1

$7.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-01450

TUBE 30.5X38X6.4

$8.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 503-01451

O-RING 3X24

$6.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 503-03609

U-JOINT YOKE (REAR)

$33.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 503-02746

U-JOINT GASKET

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 503-02749

HEX FLANGE BOLT

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 503-01455

COVER GEARCASE

$448.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 503-02354

HEX HEAD FLANGE BOLT M8X25

$1.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 503-00344

CIRCLE CLIP

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 503-01456A

FUEL LINE

$5.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 503-01457

DISC BRAKE

$70.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 503-00005

SPRING WASHER-8

$6.49

$

In Stock, only 4 left!

0

44

Cub Cadet 503-00042

HEXAGON FLANGE BOLT M8X20

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 503-03604

U-JOINT

$88.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 503-03606

U-JOINT YOKE (SPLINED)

$38.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 503-02814

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 503-02815

SHAFT

$50.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 503-01459

NARROW BAND CLAMP

$5.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 503-02848

NARROW BAND CLAMP I

$11.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 503-01461

HEX HEAD FLANGE BOLT

$28.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 503-01462

HEX HEAD BOLT M10X1.25-195

$8.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 503-01463

WASHER 10X35X3

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 503-01464

STRAP DIFFERENTIAL-REAR SEAT

$107.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 503-01465

TUBE 10.5X20X18

$11.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 503-01466

TUBE 10.5X20X7.5

$5.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 503-01375

LOCK NUT M10X1.25

$6.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 503-02849

REAR DIFFERENTIAL BRACKET

$23.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 503-01468

REAR DIFFERENTIAL SHELF KIT -FRONT

$25.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 503-01469

HEX HEAD BOLT M10X1.25-115

$16.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 503-02222

BOLT & WASHER ASSEMBLY M8x25

$5.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 503-01210

PIPE CLAMP I

$4.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 503-01470

CONNECTOR

$8.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 503-01401

AIRBAG

$58.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 503-00011

HEXAGON FLANGE BOLT M6X16

$6.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 503-00182

REAR DIFFERENTIAL FITTING

$8.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 503-02223

HEX BOLT & WASHER ASSEMBLY

$6.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 503-02750

LOCK SPACER

$11.99

$

Usually ships in 3-6 days

0
