Challenger MX550 Red (37BZ7CMK010) - Cub Cadet 4x4 Utility Vehicle (2019) Suspension - Rear Parts Diagram

4x4 Utility Vehicle

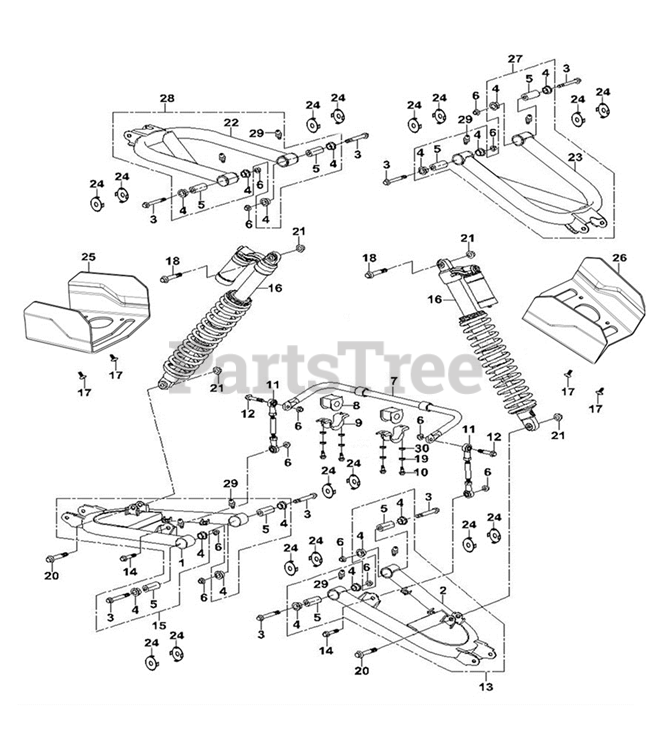

Suspension - Rear Parts Diagram

  • Title
1

Arm Welding Kit(Rear Right Lower)

Note: Not Serviced Individually

$

$

Not available

2

Arm Welding Kit(Rear Left Lower)

Note: Not Serviced Individually

$

$

Not available

3

Cub Cadet 503-01554

HEX HEAD FLANGE BOLT M10X1.25-80

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-02821

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-02006

BUSHING 10.3X23X49.4

$13.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01375

LOCK NUT M10X1.25

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-02780

REAR SWAY BAR

$175.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-02233

STABILIZER BUSHING 20mm

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-02122

SWAY BAR MOUNT BRACKET

$1.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00409

HEX FLANGE BOLT M10X1.25X20

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01566A

ROD BALL KIT - REAR

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00319

HEX FLANGE BOLT M10X1.25X50

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-02737

LOWER A-ARM ASSEMBLY (REAR LH)

$254.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00044

HEX FLANGE BOLT M10X1.25X45

$7.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-02738

LOWER A-ARM ASSEMBLY (REAR RH)

$236.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01569

REAR SHOCK ABSORBER

$462.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00091

SCREW M6X16

$6.49

$

In Stock, only 4 left!

0

18

Cub Cadet 503-01570

HEX HEAD BOLT M12X1.25-70

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00064

SPRING WASHER

$6.49

$

In Stock, only 3 left!

0

20

Cub Cadet 503-01571

HEX HEAD BOLT M12X1.25-65

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-01572

LOCK NUT M12X1.25

$5.49

$

Usually ships in 3-6 days

0

22

Arm Welding Kit(Rear Right Upper)

Note: Not Serviced Individually

$

$

Not available

23

Arm Welding Kit(Rear Left Upper)

Note: Not Serviced Individually

$

$

Not available

24

Cub Cadet 503-01556

BUSHING CAP I

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-02071

SHIELD CV IV

$242.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01573

BUSHING CAP ASSEMBLY - RIGHT

$363.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-02288

SHIELD CV II

$273.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01574

BUSHING CAP ASSEMBLY - LEFT

$418.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-02729

UPPER ARM ASSEMBLY (REAR LH )

$219.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-02730

UPPER ARM ASSEMBLY (REAR RH)

$177.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-00305

SWING ARM NOZZLE

$12.99

$

Usually ships in 3-6 days

0

30

$4.49

$

Usually ships in 3-6 days

0
