Challenger M750 EPS Yellow (37DYCDKP010) - Cub Cadet 4x4 Utility Vehicle (2021) Door Parts Diagram

4x4 Utility Vehicle

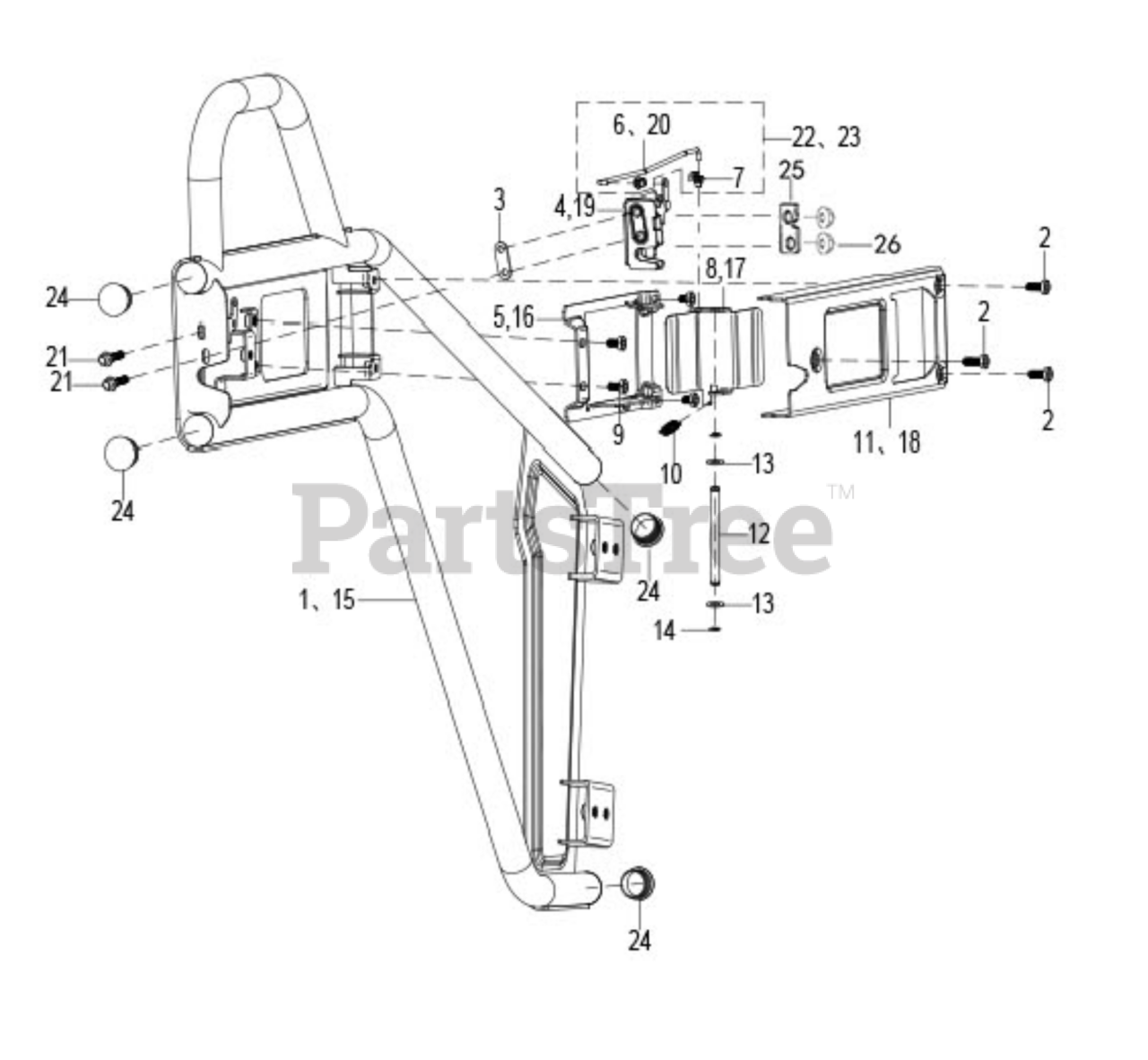

Door Parts Diagram

  • Title
1

Cub Cadet 503-03832

DOOR ASM (LH)

$129.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00129

SOCKET HEX FLAT HEAD BOLT M6X16

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01852

DOOR LOCK ADJUSTMENT GASKET

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-03906

DOOR LATCH (LH)
(Superseded to 503-03932)

$37.99

$

In Stock, only 1 left!

0

5

Cub Cadet 503-03834

LOCK MOUNTING PLATE (LH)
(Superseded to 503-03834A)

$9.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-03835

LOCK ROD (LH)

$23.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-03836

PLASTIC ROD CLIP

$17.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-03837

DOOR HANDLE (LH)

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-02819

FLANGED HED HEAD BOLT M6X8

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-03839

TENSION SPRING

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-03840

LOCK MOUNT PLATE (LH)

$22.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-03841

SLOTTED ROD 8 X 91

$2.99

$

Usually ships in 3-6 days

0

$2.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-03843

DOOR ASM (RH)

$120.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-03844

LOCK MOUNT PLATE (RH)
(Superseded to 503-03844A)

$9.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-03845

DOOR HANDLE (RH)

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-03846

LOCK MOUNT PLATE (RH)

$22.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-03905

DOOR LATCH (RH)
(Superseded to 503-03933)

$37.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-03847

LOCK ROD (RH)

$23.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00089

HEXAGON FLANGE BOLT M6X35

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-03884

LOCK ROD (LH)

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-03883

LOCK ROD (RH)

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-03849

ROUND PLASTIC PLUG

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-03920

LOCK REINFORCEMENT PLATE

$39.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01590

LOCK NUT M6

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 759-05911

DOOR LATCH KIT (M-SERIES)

$

$

Currently unavailable
