Challenger M550 Yellow (37DZ7DKP710) - Cub Cadet 4x4 Utility Vehicle (2021) Suspension Front Parts Diagram

4x4 Utility Vehicle

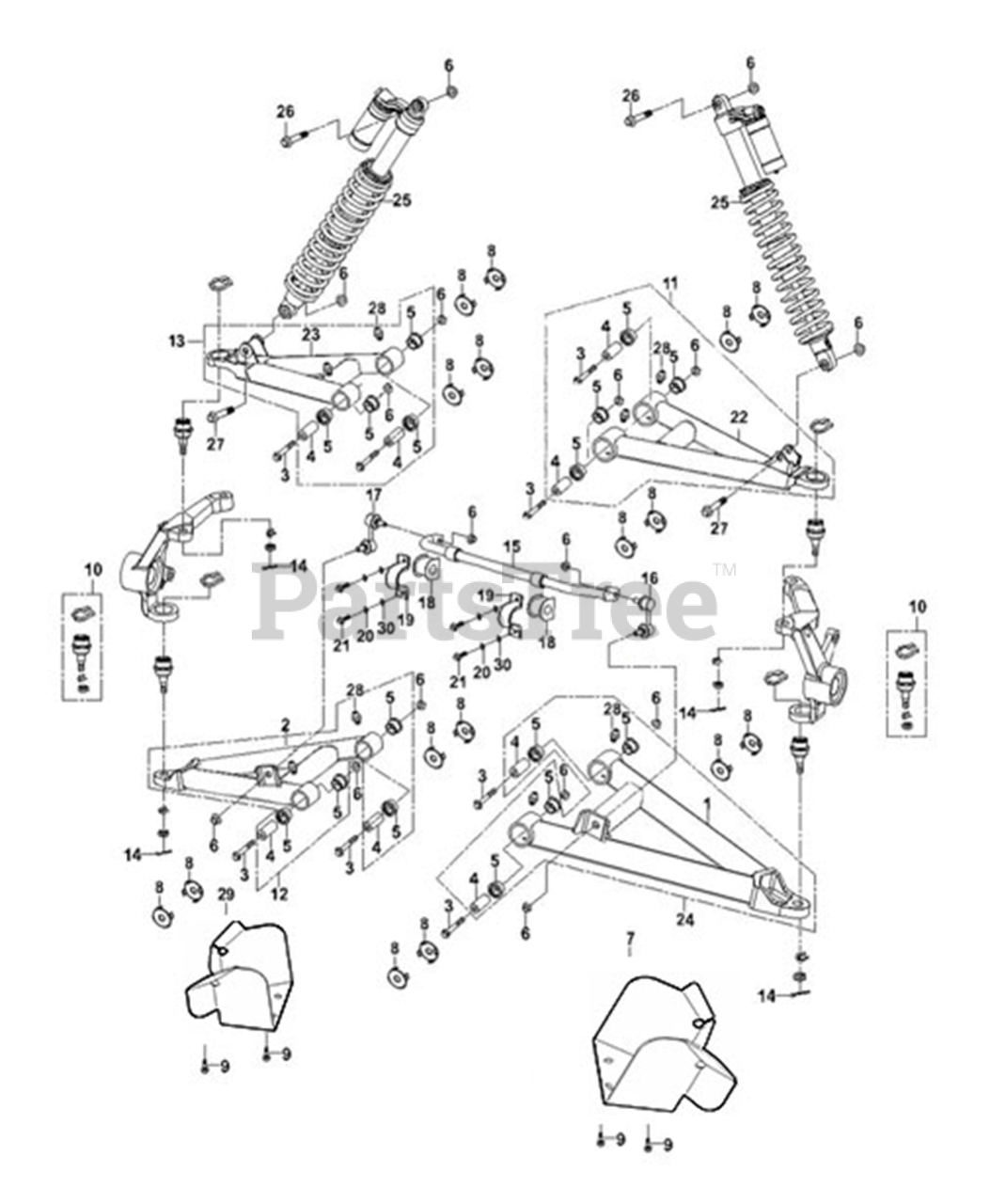

Suspension Front Parts Diagram

  • Title
1

Arm Welding Kit(Front Left Lower)

Note: Not Serviced Individually

$

$

Not available

2

Arm Welding Kit(Front Right Lower)

Note: Not Serviced Individually

$

$

Not available

3

Cub Cadet 503-01554

HEX HEAD FLANGE BOLT M10X1.25-80

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-02006

BUSHING 10.3X23X49.4

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-02821

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01375

LOCK NUT M10X1.25

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-03757

CV SHIELD-FRONT (LH)
(Superseded to 503-03919)

$141.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01556

BUSHING CAP I

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00011

HEXAGON FLANGE BOLT M6X16

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503P0307B

BALL JOINT KIT

$60.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-02774

UPPER A-ARM ASSEMBLY (FRONT LH)

$206.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-02851

LOWER ARM ASSEMBLY (FRONT RH)

$239.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-02775

UPPER A-ARM ASSEMBLY (FRONT RH)

$206.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00096

COTTER PIN 2.5X30

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-01560A

STABILIZER BAR (FRONT)

$184.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503P01561

ROD BALL KIT (RIGHT)

$67.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503P01562

ROD BALL KIT (LEFT)

$69.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00297

BUSHING - RUBBER U-TYPE

$15.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00298A

PRESS BLOCK REAR ANTI-ROLL BAR

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00064

SPRING WASHER

$6.49

$

In Stock, only 3 left!

0

21

Cub Cadet 503-00409

HEX FLANGE BOLT M10X1.25X20

$6.49

$

Usually ships in 3-6 days

0

22

Arm Welding Kit(Front Left Upper )

Note: Not Serviced Individually

$

$

Not available

23

Arm Welding Kit(Front Right Upper)

Note: Not Serviced Individually

$

$

Not available

24

Cub Cadet 503-02852

LOWER ARM ASSEMBLY (FRONT LH)

$255.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01564

FRONT SHOCK ABSORBER

$721.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00682

HEX FLANGE BOLT M10X1.25X55

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00056

HEX FLANGE BOLT M10X1.25X60

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00305

SWING ARM NOZZLE

$12.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-03758

CV SHIELD-FRONT (RH)
(Superseded to 503-03918)

$141.99

$

Usually ships in 3-6 days

0

30

$4.49

$

Usually ships in 3-6 days

0
