Challenger M550 Black (37DZ7DPP010) - Cub Cadet 4x4 Utility Vehicle (2021) Engine - Air Throttle Parts Diagram

4x4 Utility Vehicle

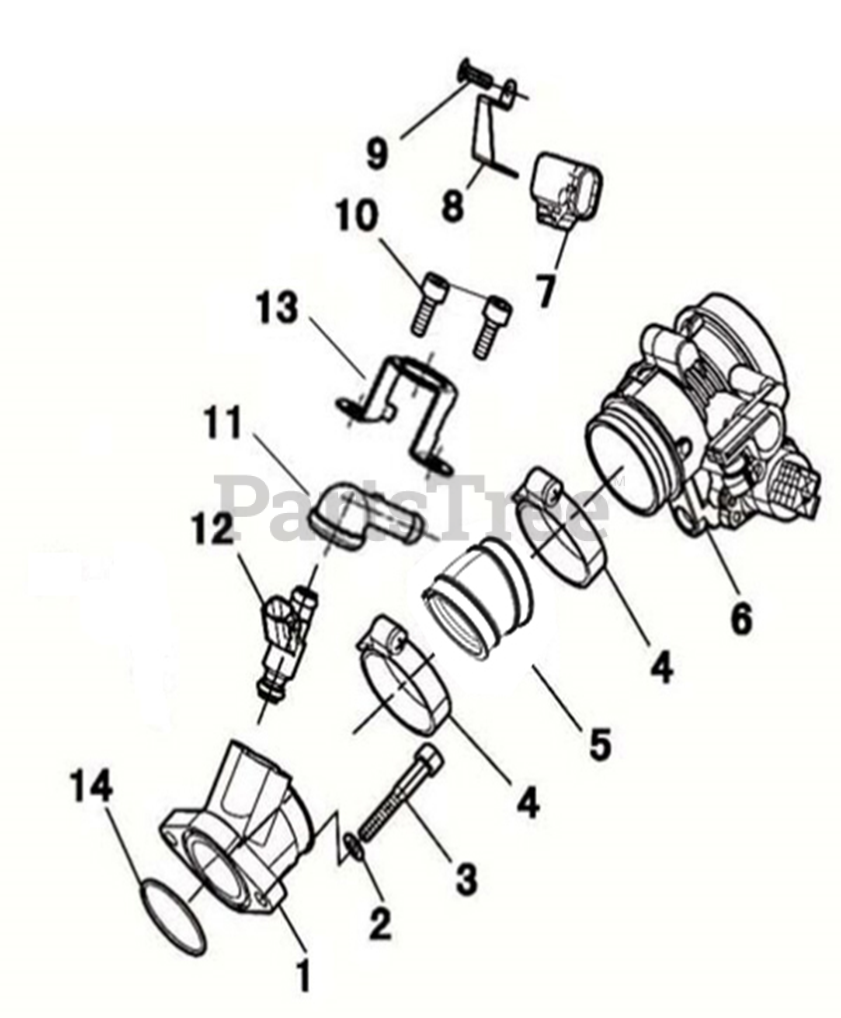

Engine - Air Throttle Parts Diagram

  • Title

1

Cub Cadet 503-01265

ADAPTER ASSEMBLY

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01266

WASHER 8 x 16 x 1.5

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01267

HEX SOCKET HEAD CAP SCREW M8 x 50

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00950

HOSE CLAMP ASSEMBLY

$14.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01268

INLET PIPE JOINT CURVED

$39.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-03857

THROTTLE VALVE

$421.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00947

TEMPERATURE/PRESSURE SENSOR

$503.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00949

PRESS PLATE

$33.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00948

CROSS RECESSED PANHEAD SCREW

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01270

HEX SOCKET HEAD CAP SCREW M6 x 12

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01271

FUEL INJECTOR FIXED SEAT

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01272

FUEL INJECTOR

$213.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01274

FUEL INJECTOR CLAMP

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01273

O-RING 44 x 2

$5.49

$

In Stock, only 2 left!

0
