Challenger 750 Red (37AY8CMD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Engine Clutch Parts Diagram

4x4 Crew Utility Vehicle

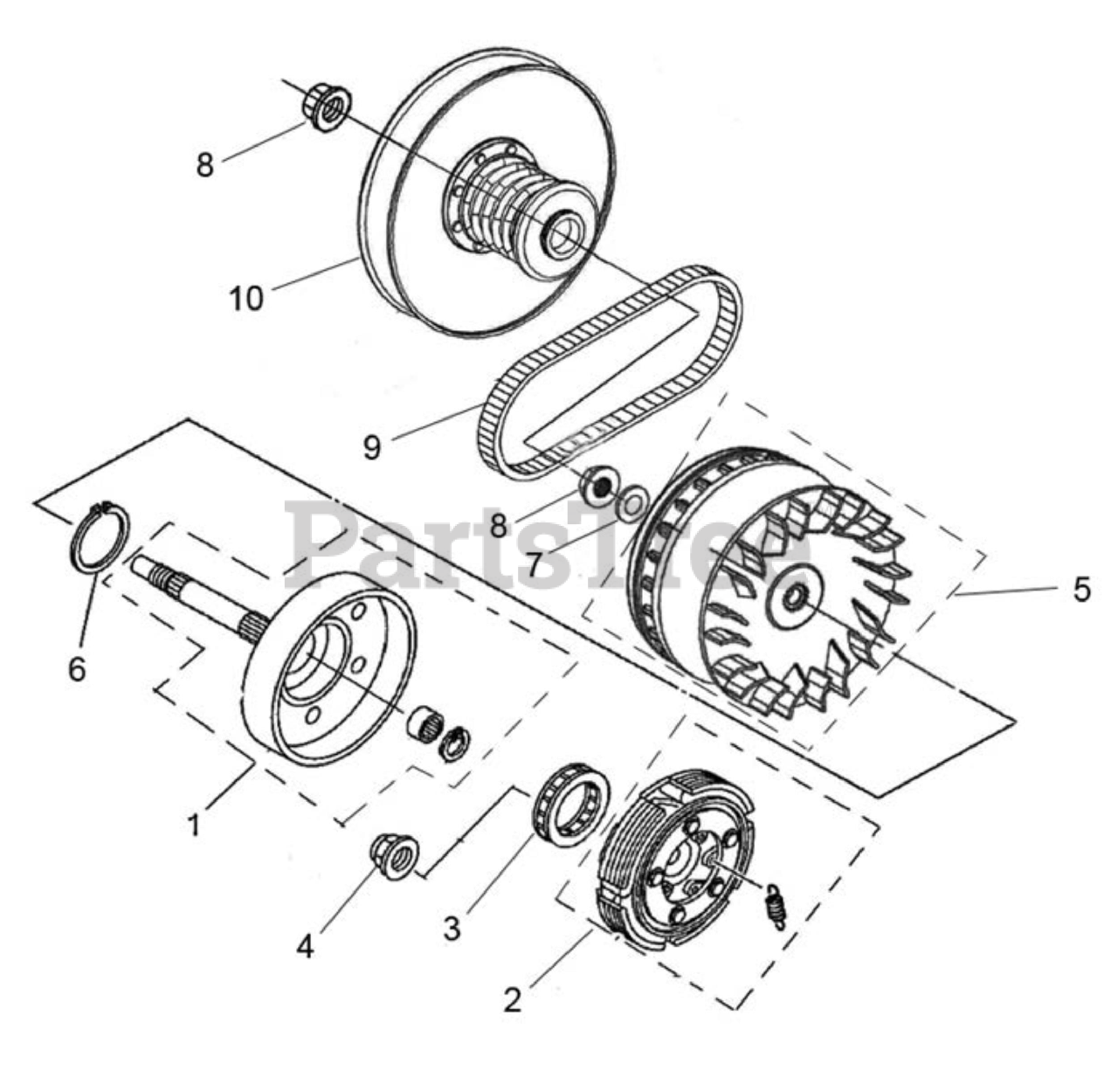

Engine Clutch Parts Diagram

  • Title
1

Cub Cadet 503-01121

Friction Wheel Assy,Clutch

$450.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01122

Friction Plate Assy,Clutch

$327.99

$

In Stock, only 1 left!

0

3

Cub Cadet 503-01123

Overrunning Clutch Assy
(Superseded to 503P01123)

$80.99

$

In Stock, only 2 left!

0

4

Cub Cadet 503-01092

Hexagon Flange Nut M22X1

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01124

Primary Disc Assy
(Superseded to 503-02911)

$570.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01125

Circlip for shaft 52

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01126

Washer 19.2X35X3.2

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01127

Hexagon Flange Nut M16X1

$8.49

$

In Stock, only 1 left!

0

9

$327.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01129

Driven Pulley Assy

$664.99

$

Usually ships in 3-6 days

0
