Challenger 750 EPS Red (37AYCCMK710) - Cub Cadet 4x4 Utility Vehicle (2017) OIL PUMP Parts Diagram

4x4 Utility Vehicle

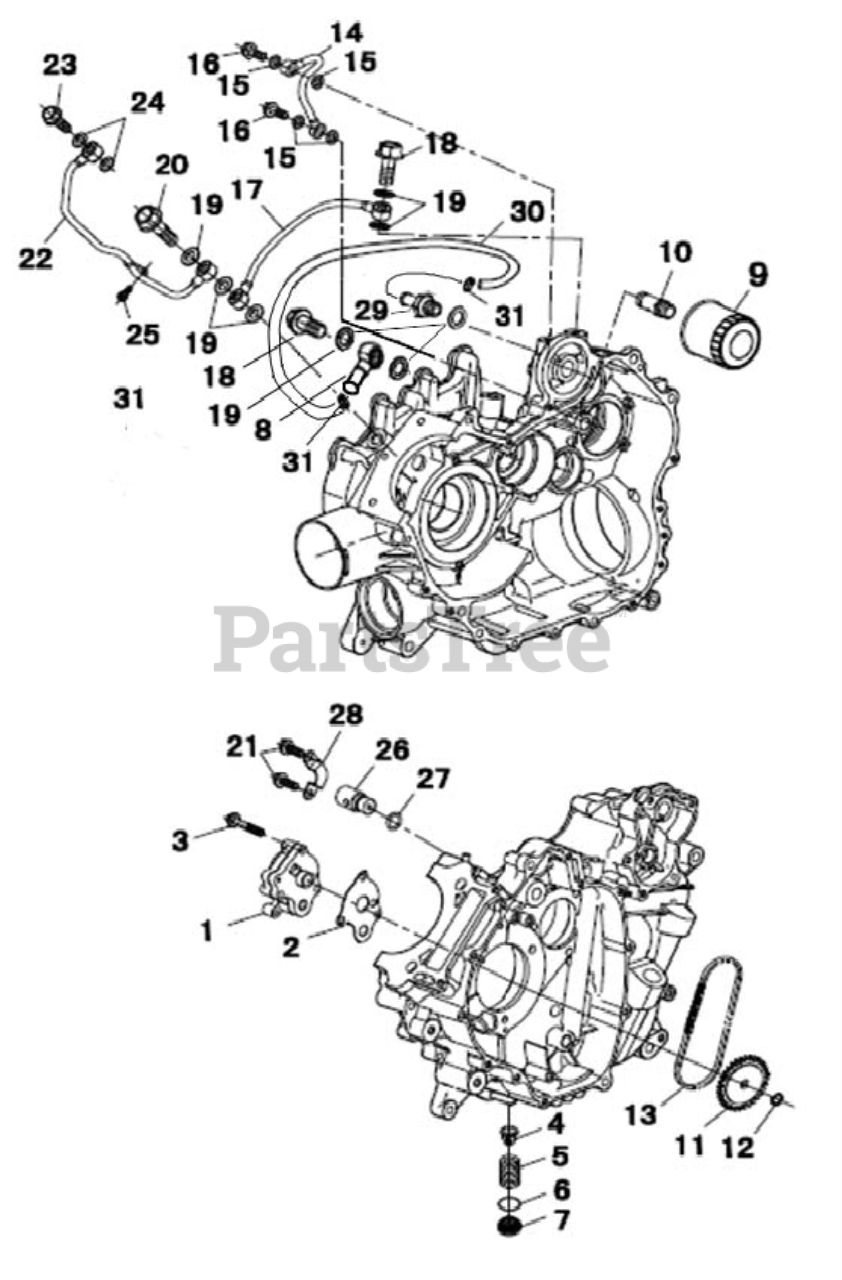

OIL PUMP Parts Diagram

  • Title
1

Cub Cadet 503-01149

Oil Pump Assy

$89.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01150

Gasket,Oil Pump

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01023

Hex flange bolts M6x40

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01151

Oil Filter Strainer

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01152

Filter Spring

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01153

O-Ring 36x3.5

$23.99

$

In Stock, only 1 left!

0

7

Cub Cadet 503-01154

Blind Nut,Oil Drainage
(Superseded to 503-01154A)

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01320

BANJO BOLT

$18.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01156

Oil Filter
(Superseded to 503P01156)

$20.99

$

In Stock, Qty 14

0

10

Cub Cadet 503-01157

Filter joint

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01158

Oil Pump Driven Sprocket

$65.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01159

Circlip for shaft 11

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01160

Chain,Oil Pump

$27.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01161

Oil Tube Welding Assy A

$57.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-01162

Aluminum Washer 8x15x2

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01163

Bolts for oil tube M8x25

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01164

Oil Tube Welding Assy B

$76.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-01165

Bolts for oil tube M14x1.5x28

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-01166

Aluminum Washer 14x22x1.5

$8.99

$

In Stock, only 4 left!

0

20

Cub Cadet 503-01167

Bolts for oil tube M14x1.5x50

$14.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-01168

Hex flange bolts M6x14

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-01169

Oil Tube Welding Assy C

$76.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01170

Bolts for oil tube M10x1.25x30

$8.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-01171

Aluminum Washer 10x16x1.2

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-00921

Hex flange bolts M6x12

$6.49

$

In Stock, only 1 left!

0

26

Cub Cadet 503-01172

Pressure Regulating Valve Assy,Engine Oil

$65.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01173

O-Ring 10x2.45

$14.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-01174

Press Plate,Pressure Regulating Valve

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01175

Oil Pipe Joint

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01322

RUBBER PIPE

$159.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-00703

Lock Clamp A

$12.99

$

Usually ships in 3-6 days

0
