Challenger 750 EPS Red (37AYCCMK710) - Cub Cadet 4x4 Utility Vehicle (2017) CARGO BED Parts Diagram

4x4 Utility Vehicle

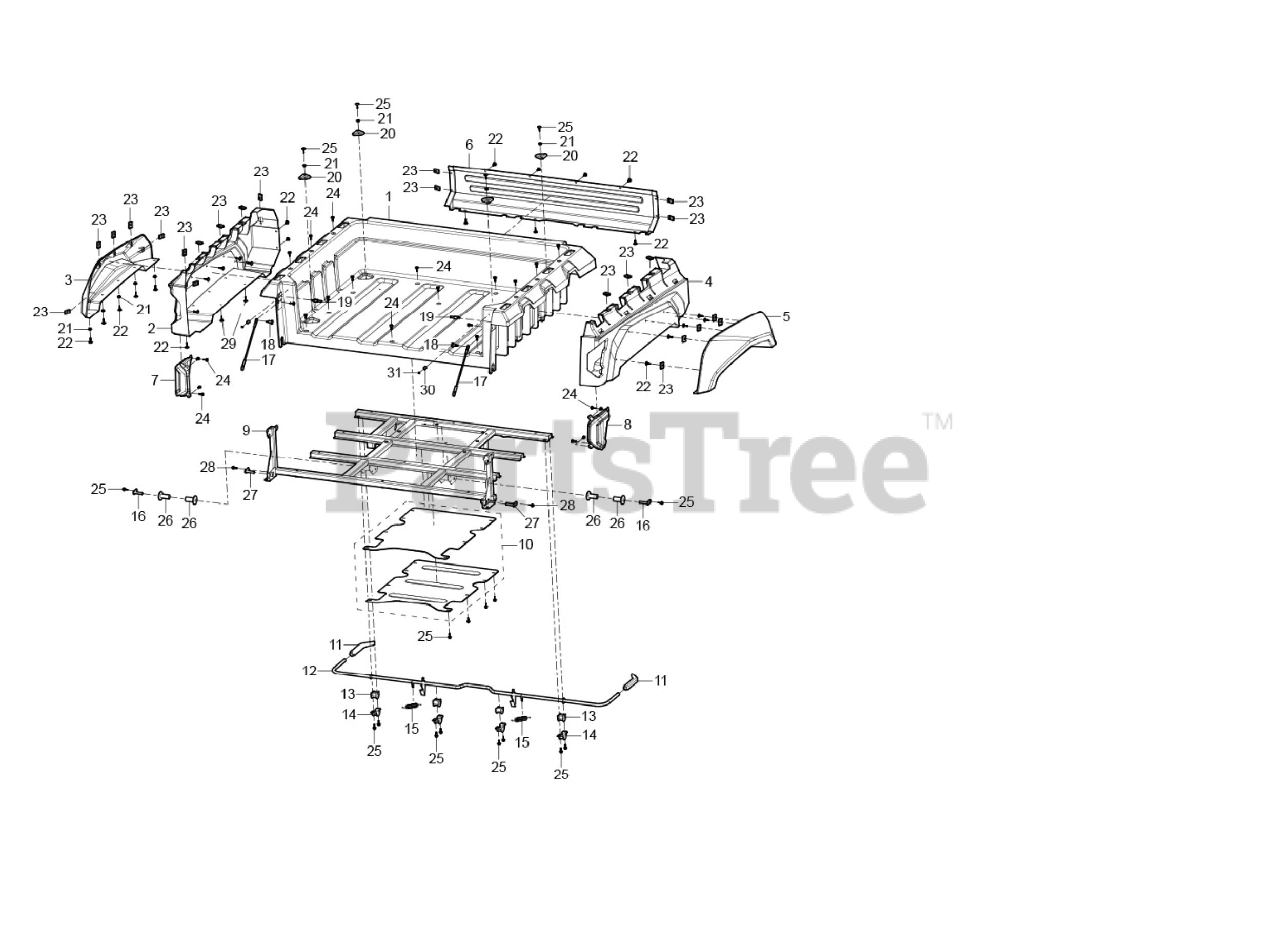

CARGO BED Parts Diagram

  • Title

1

Cub Cadet 503-01818

CARGO BED
(Superseded to 503-01818B)

$986.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01949

CARGO BED SIDE PANEL LEFT RED

$138.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01950

CARGO BED SIDE PANEL LEFT YELLOW
(Superseded to 503-01950A)

$138.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01951

CARGO BED SIDE PANEL LEFT BLUE

$125.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01952

CARGO BED SIDE PANEL LEFT BLACK

$138.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01953

CARGO BED SIDE PANEL LEFT CAMO

$262.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01819

FENDER - REAR LEFT TOP

$60.99

$

In Stock, only 1 left!

0

4

Cub Cadet 503-01954

CARGO BED SIDE PANEL RIGHT RED

$138.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01955

CARGO BED SIDE PANEL RIGHT YELLOW
(Superseded to 503-01955A)

$138.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01956

CARGO BED SIDE PANEL RIGHT BLUE

$125.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01957

CARGO BED SIDE PANEL RIGHT BLACK

$138.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01958

CARGO BED SIDE PANEL RIGHT CAMO

$262.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01820

FENDER - REAR RIGHT TOP

$62.99

$

In Stock, only 1 left!

0

6

Cub Cadet 503-01821

CARGO BED FRONT PANEL

$72.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01822

TAIL BRAKE LIGHT ASSEMBLY - REAR LEFT
(Superseded to 503-01822A)

$139.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01823

TAIL BRAKE LIGHT ASSEMBLY - REAR RIGHT
(Superseded to 503-01823A)

$161.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01824

CARGO BED FRAME

$682.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01825

HEAT PROTECTOR - CARGO BED

$60.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01826

RELEASE LEVER GRIP

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01827

CARGO BED RELEASE LEVER KIT

$112.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01828

RELEASE LEVER CUSHION

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01829

BRACKET

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00633

Tension Spring 2x 14x40

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01830

PIN - CARGO BED KIT

$31.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01831

CABLE - CARGO BED DOOR J

$22.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-01832

BLOT HExAGON SOCKET SHOULDER M8x15-10x14.5

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-01833

BLOT HExAGON SOCKET SHOULDER M8x15-10x10-53

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-01834

HOOK - CARGO BED

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-01350

HExAGON FLANGE HEAD NUT M6

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00091

Cross Large Plate Head Screw M6x16

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01702

CLAMP NUT M6x6

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-00129

Socket Hex Flat Head Bolt M6x16

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-00011

Hexagon Flange Bolt M6x16

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01835

BUSHING - PLASTIC 12x18

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01836

HINGE STRAP PLATED

$18.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-01837

BOLT HExAGON FLANGE HEAD M8x12

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01838

SCREW - CROSS HEAD SELF DRILLING ST4.8x16

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01839

CARGO DOOR SHOCK ABSORBER

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-01840

SCREW CROSS HEAD SELF DRILLING ST4.2x13

$4.49

$

Usually ships in 3-6 days

0
