Challenger 750 Camo (37AY8CLD710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Frame 2 Parts Diagram

4x4 Crew Utility Vehicle

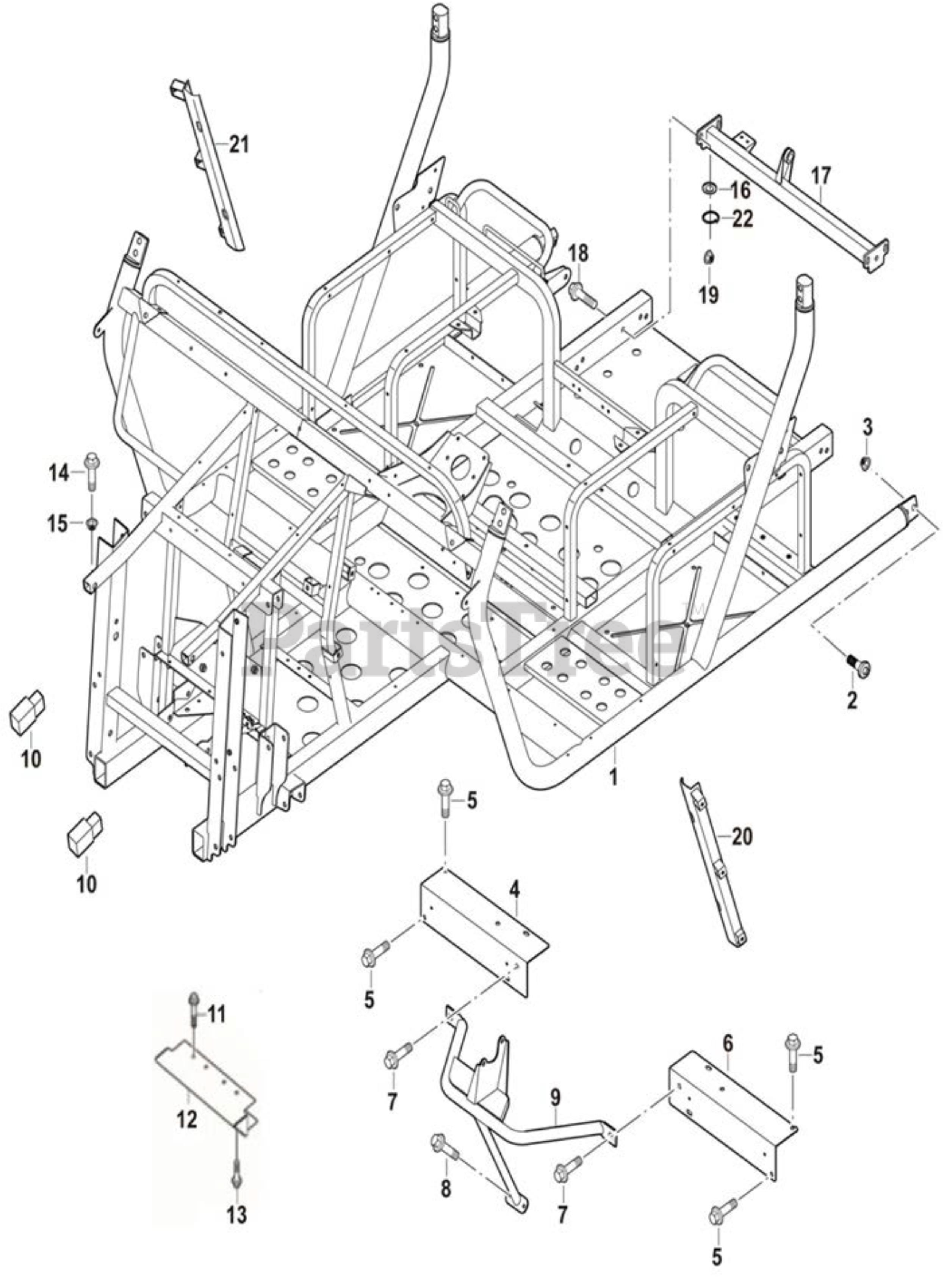

Frame 2 Parts Diagram

  • Title
1

Cub Cadet 503-00043

Frame Forepart Assy

$

$

Not available

2

Cub Cadet 503-00044

Hexagon Flange BoltM10X1.25X45

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00045

Hexagon Flange Self-Lock Nuts M10x1.25

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00031

Seat Support Plate II

$46.99

$

Usually ships in 3-6 days

0

5

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M8X16

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet 503-00035

Seat Support Plate I

$35.99

$

Usually ships in 3-6 days

0

7

Cub Cadet B06-M10X1.25X25

Hexagon Flange bolt M10X1.25X25

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00011

Hexagon Flange Bolt M6X16

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00051

Assembling Assy, selector mechanism

$145.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00052

Left Hinge Plate, Front Panel

$27.99

$

Usually ships in 3-6 days

0

11

Cub Cadet B06-M12X1.25X35

Hexagon Flange Bolt M12X1.25X35

$2.49

$

In Stock, only 1 left!

0

12

Cub Cadet 503-00054

Mounting plate for winch

$115.99

$

Usually ships in 3-6 days

0

13

Cub Cadet B06-M12X1.25X25

Hexagon Flange Bolt M10X1.25X25

$2.49

$

In Stock, only 1 left!

0

14

Cub Cadet B06-M10X1.25X60

Hexagon Flange Bolt M10X1.25X60

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00045

Hexagon Flange Self-Lock Nuts M10x1.25

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-00058

Flat Washer 10

$5.49

$

In Stock, only 4 left!

0

17

Cub Cadet 503-00059

Gearshift Bracket

$83.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00056

Hexagon Flange BoltM10X1.2560

$9.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-00045

Hexagon Flange Self-Lock Nuts M10x1.25

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00062

Mounting Bracket, Left Fender

$38.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00063

Mounting Bracket, Right Fender

$38.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00064

Spring Washer10

$6.49

$

In Stock, only 3 left!

0
