Challenger 750 Blue (37AY8CND710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Trailer Plug & Misc Parts Diagram

4x4 Crew Utility Vehicle

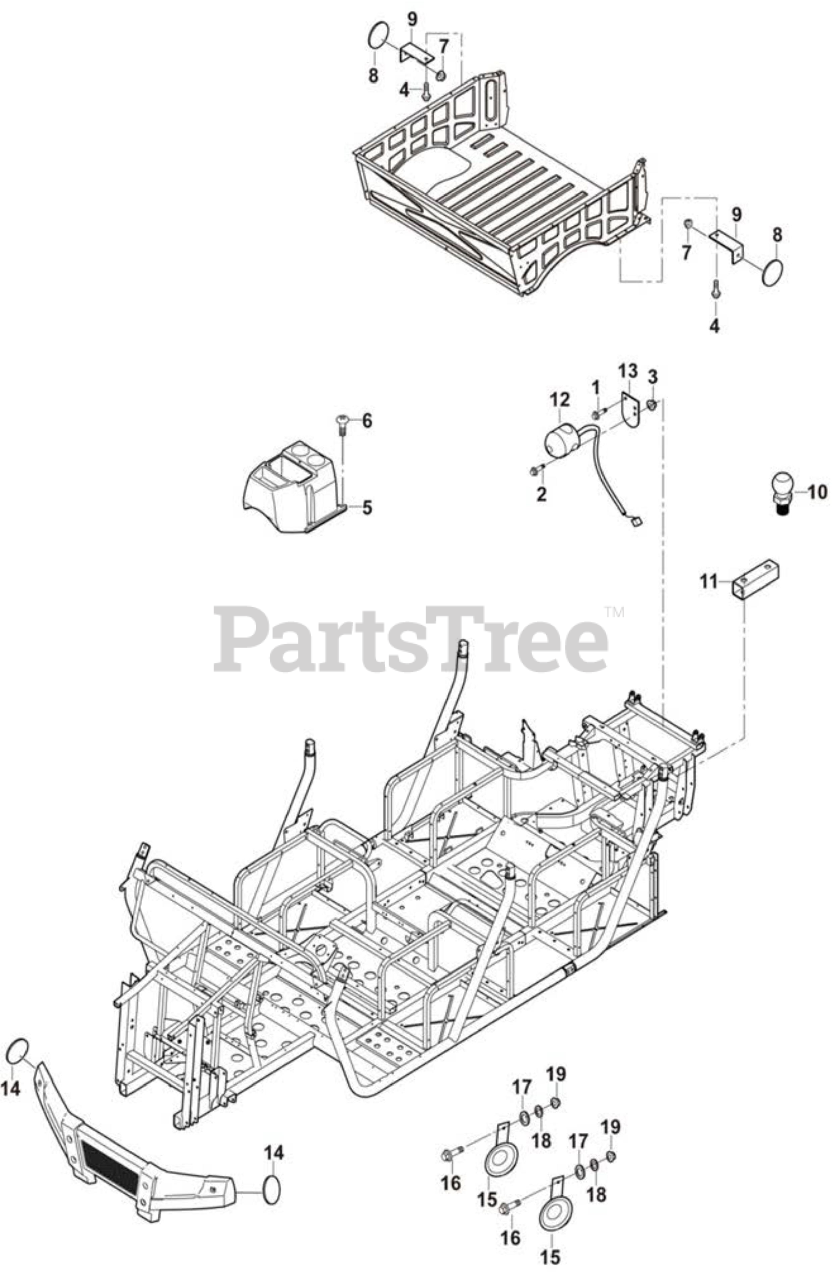

Trailer Plug & Misc Parts Diagram

  • Title

1

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6X16

$2.49

$

In Stock, only 1 left!

0

2

Cub Cadet B19-M5X30-27

Cross Plate Head Screw M5X30

$1.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00374

Hexagon Flange nut M5

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet B05-M6X12-57

Cross Large Plate Head Screw M6X12

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00863

Sundry Box

$142.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00864

Pan head screw with cross recess M6X30

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00399

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00866

Side Reflector Assy (Red)

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00867

Mounting Plate,Rear Reflector

$9.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00868

Hitch Bar Assy A

$116.99

$

Usually ships in 3-6 days

0

11

n/a

Rear Hitch Bar G

Note: No Longer Available

$

$

Not available

11

n/a

Rear Hitch Bar E

Note: No Longer Available

$

$

Not available

11

n/a

Rear Hitch Bar D

Note: No Longer Available

$

$

Not available

11

Cub Cadet 503-00872

Rear Hitch Bar F

$79.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00873

Trailer Plug Assy

$121.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00874

Mounting Plate,Trailer Plug

$19.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00596

Side Reflector Assy (Yellow)

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00876

Horn Assy.

$43.99

$

Usually ships in 3-6 days

0

16

Cub Cadet B05-M6X12-57

Hexagon Flange Bolt M6X16

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00019

Washer6

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 503-00879

Spring Washer 6

$4.99

$

In Stock, only 4 left!

0

19

Cub Cadet 503-00399

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0
