Challenger 750 Black (37AY7CPK710) - Cub Cadet 4x4 Utility Vehicle (2017) CRANKCASE Parts Diagram

4x4 Utility Vehicle

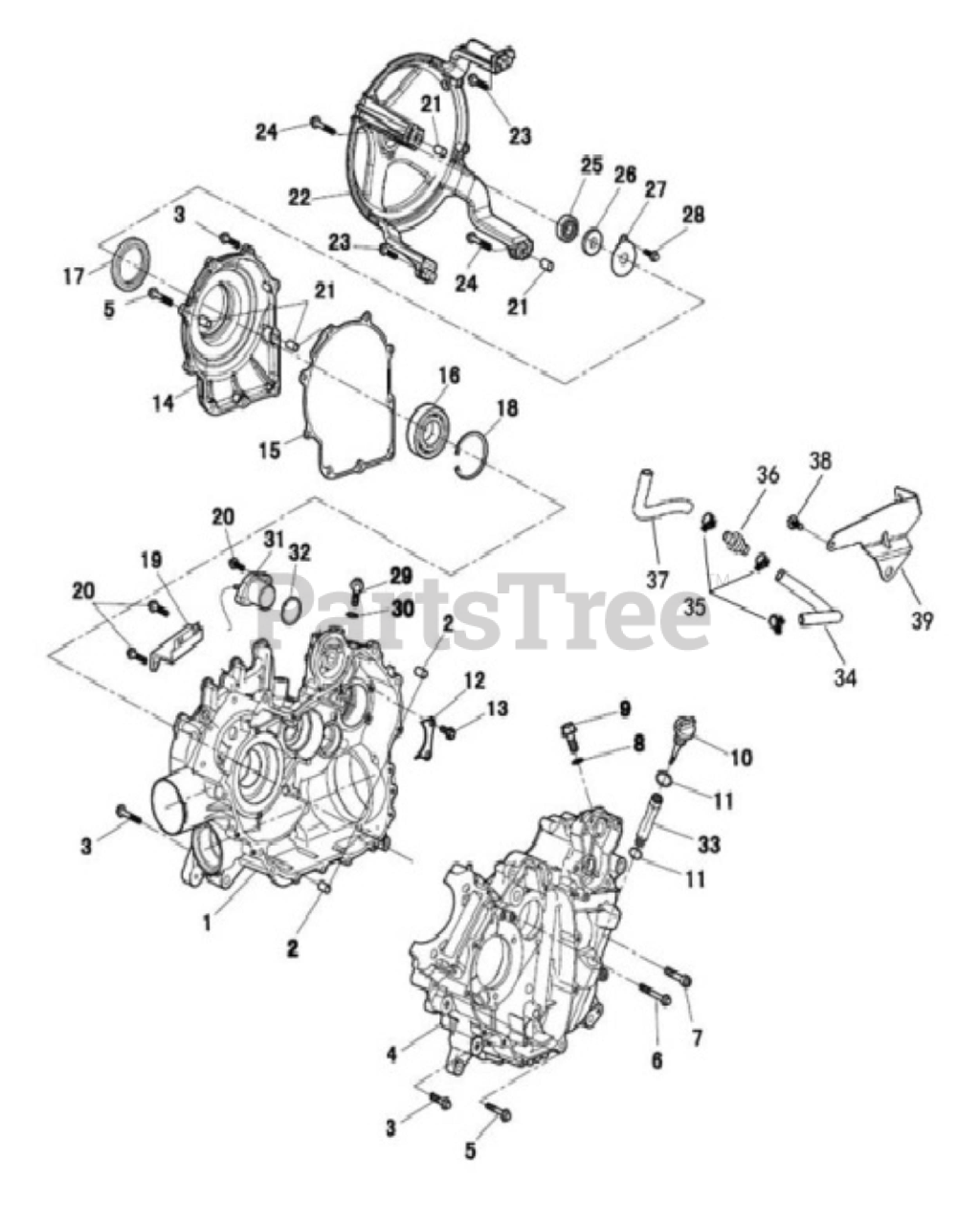

CRANKCASE Parts Diagram

  • Title

1

Cub Cadet 503-01019

Right Crankcase Assy

$606.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01020

Pin,Dowel 9x12x16

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01021

Hex flange bolts M6x30

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01022

Left Crankcase Assy

$605.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01023

Hex flange bolts M6x40

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01024

Hex flange bolts M6x85

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01025

Hex head cap screw M8x40

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01026

Aluminum Washer 14x20x1.5

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01027

Hex flange Screw Plug M14x1.5x16

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01028

Plug,Oil Level

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01029

O-Ring 18x3.5

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01030

Press Plate,Main Shaft Bearing

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01031

Hex flange bolts M6x16

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-01032

Bearing Block,outer cover

$163.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-01033

Gasket,Bearing Block
(Superseded to 503P01033)

$15.99

$

In Stock, only 2 left!

0

16

Cub Cadet 503-01034

Bearing 16010

$115.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01035

Oil Seal 35x65x9

$68.99

$

In Stock, only 4 left!

0

18

Cub Cadet 503-01036

Circlip for hole 80

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-01307

STRAP CVT VENT-PIPE PLATED

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00990

Hex head bolt & plain washer M6x16

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00928

Pin,Dowel 10x16

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-01038

Shield Bracket,Clutch

$304.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01039

Hex flange bolts M6x32

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-01040

Hex flange bolts M6x40

$5.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01331

BEARING 62012Z

$34.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-01042

Oil Seal 12x32x6

$27.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01043

Press Plate,Bracket oil seal

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00921

Hex flange bolts M6x12

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-01044

Hex flange bolts M10x1.25x16

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01045

Copper Washer 10x16x1

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 503-01046

Sensor,Gear Indicator

$99.99

$

In Stock, only 1 left!

0

32

Cub Cadet 503-01047

O-Ring 29.6x2.4

$21.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 503-01048

Guiding Tube,Oil Level

$59.99

$

Usually ships in 3-6 days

0

34

n/a

ExHAUST GAS RECOVERY TUBEIII

$

$

Not available

35

n/a

SPRING CLAMP

$

$

Not available

36

n/a

NON PRESSURE CHECK VALVE

$

$

Not available

37

n/a

ExHAUST GAS RECOVERY TUBE

$

$

Not available

38

Cub Cadet 503-01021

Hex flange bolts M6x30

$5.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 503-01312

AIR CLEANER STRAP - PLATED

$29.99

$

Usually ships in 3-6 days

0
