Challenger 750 Black (37AY7CPK710) - Cub Cadet 4x4 Utility Vehicle (2017) AIR THROTTLE ASSEMBLY Parts Diagram

4x4 Utility Vehicle

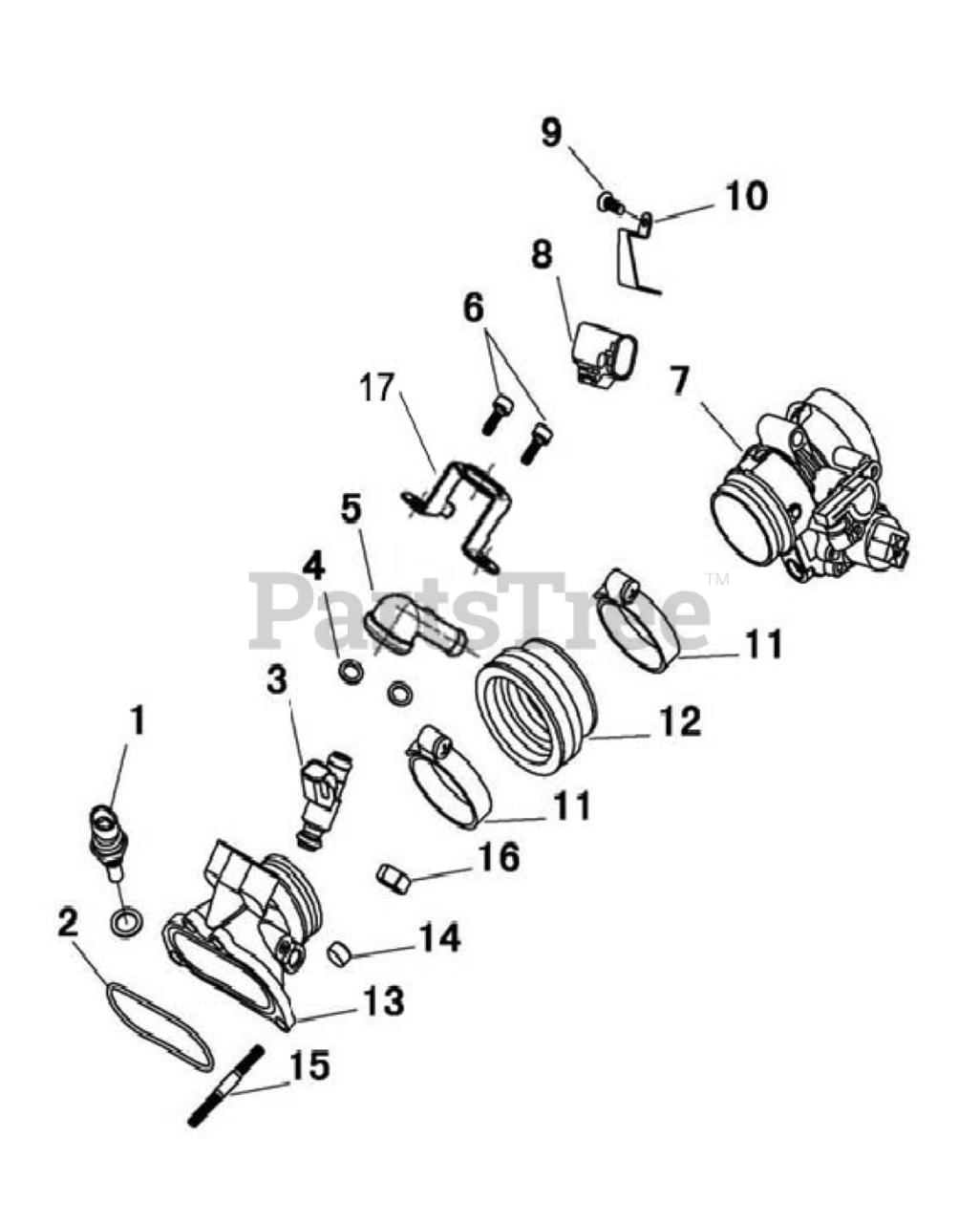

AIR THROTTLE ASSEMBLY Parts Diagram

  • Title

1

Cub Cadet 503-00930

Water Temperature Sensor

$92.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00942

Seal,intake-tube

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00943

Fuel Injector?25377439?
(Superseded to 503-00943P)

$210.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00922

Aluminum Washer 6x12x1.5

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 503-01271

FUEL INJECTOR FIxED SEAT

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01270

HExAGON SOCKET HEAD CAP SCREW M6 x 12

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01330

THROTTLE BODY ASSEMBLY

$566.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00947

Temperature/Pressure Sensor

$503.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00948

Cross recessed pan head screw, single coil spring lock washer assemblies M4x8

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00949

Press Plate,TMAP

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00950

Hose Clamp Assy 50?70

$14.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-01268

INLET PIPE JOINT

$39.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00952

Intake-tube Assy

$45.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00953

Bushing 7x9x8

$18.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00954

Stud M6x32

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-00399

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01274

FUEL INJECTOR CLAMP

$10.99

$

Usually ships in 3-6 days

0
