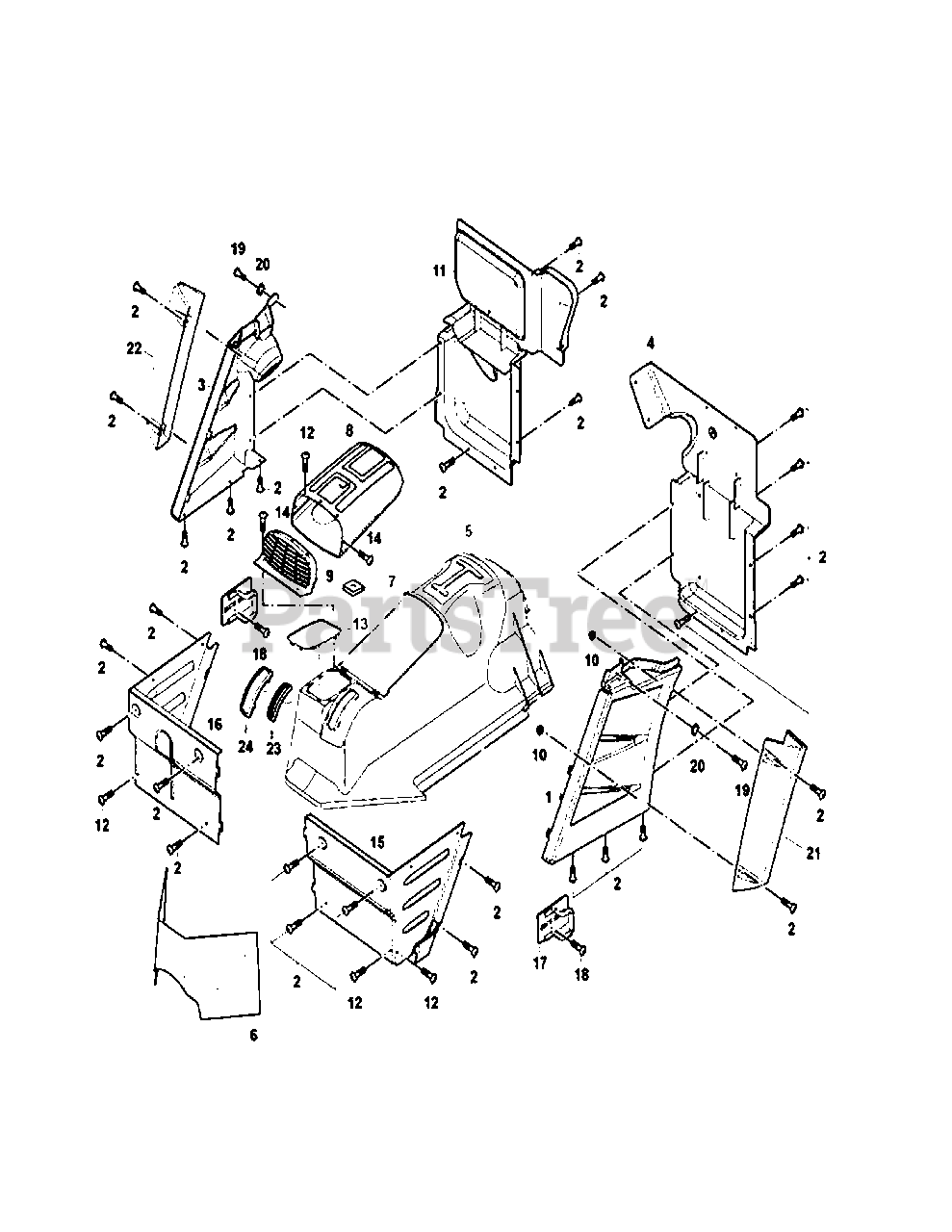

Challenger 700 Yellow (37AX7CKD010) - Cub Cadet 4x4 Utility Vehicle Side Cover Parts Diagram

4x4 Utility Vehicle

Side Cover Parts Diagram

  • Title

1

Cub Cadet 82311-115-0000

Left Seat Board
(Superseded to 503-00124)

Note:

$102.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 90531-102-0000

Cross large plate head screw M6×16
(Superseded to 503-00091)

Note:

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 82321-115-0000

Right Seat Board
(Superseded to 503-00126)

Note:

$118.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 82334-115-0000

Rear Left Board, Seat
(Superseded to 503-00127)

Note:

$148.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 82331-115-0000

Engine Cover Board
(Superseded to 503-00128)

Note:

$172.99

$

In Stock, only 1 left!

0

6

Cub Cadet 04053710

Insulation Paper VI

Note:

$

$

Currently unavailable

7

Cub Cadet 90441-115-0002

Screw Thread Clip M5

Note:

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet 17151-115-0000

Primary Air Filter Box

Note:

$41.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 17152-115-0000

Primary Air Filter Cap

Note:

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet B09-M6-27

Hexagon Flange Self-Lock Nuts M6
(Superseded to 503-00007)

Note:

$6.49

$

In Stock, Qty 5

0

11

Cub Cadet 82335-115-0000

Rear Right Board, Seat
(Superseded to 503-00132)

Note:

$145.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 90212-115-0000

Expansion Bolt (Plastic)
(Superseded to 503-00133)

Note:

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 82563-115-0000

Gear Shift Decoration Cover

Note:

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet 90542-102-0001

Cross Large Plate Head Screw M5×16
(Superseded to 503-00142)

Note:

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 82332-115-0000

Front Left Board, Seat
(Superseded to 503-00136)

Note:

$85.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 82333-115-0000

Front Right Board, Seat
(Superseded to 503-00137)

Note:

$72.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 8450A-115-0000

Door Locker
(Superseded to 503-00138)

Note:

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6×16

Note:

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet 90542-103-0002

Cross Large Plate Head Screw M6×12
(Superseded to 503-00140)

Note:

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 90402-115-0000

Nut Clip M6
(Superseded to 503-00147)

Note:

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 83209-115N-0000

Left side board decorative plate, carrier II
(Superseded to 503-00152)

Note:

$51.99

$

In Stock, only 1 left!

0

22

Cub Cadet 83208-115N-0000

Right side board decorative plate, carrier II
(Superseded to 503-00153)

Note:

$51.99

$

In Stock, only 1 left!

0

23

Cub Cadet 94005-120-0000

Dust P. Cover

Note:

$2.99

$

In Stock, only 1 left!

0

24

Cub Cadet 56151-120-0000

Parking Decoration Cover

Note:

$9.49

$

Usually ships in 3-6 days

0
