Challenger 700 Yellow (37AX7CKD010) - Cub Cadet 4x4 Utility Vehicle 700UTV Engine Middle Drive Parts Diagram

4x4 Utility Vehicle

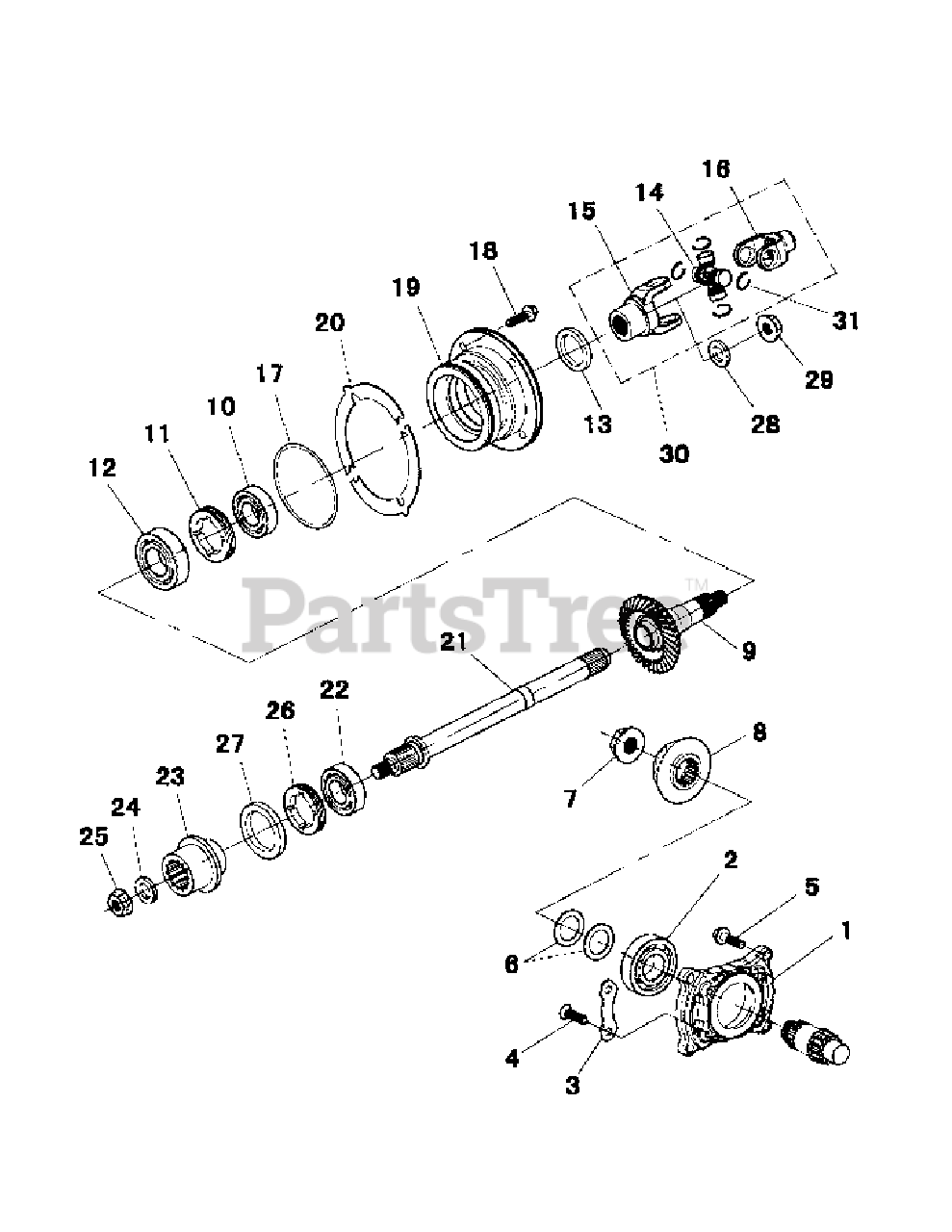

700UTV Engine Middle Drive Parts Diagram

  • Title

1

Cub Cadet 22140-004-0000

Bearing Seat-Output

$64.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 93706-3050-0000

Bearing-6305

$45.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 93116-003-0000

Press Plate Bearin

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 93409-0802-5060

Screw M8X25

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 93107-0803-0060

Flangebolt M6X30

$1.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 90606-003-0000

Washer

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 93202-2200-0060

Nut M22X1

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 22141-004-0000

Gear Wheel-Driver

$51.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 22150-004-0000

Gear Wheel-Driven

$261.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 93706-3220-0000

Bearing-63/22

$77.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 22158-004-0000

Locked Ring-M60

$7.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 93706-2070-0000

Bearing-6207

$50.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 91106-003-0000

Oil Seal

$27.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 22160-010-0000

Crossing
(Superseded to 22165-010-000AP)

$160.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 22161-004D-0000

Universal Joint A
(Superseded to 503-01100)

$81.99

$

In Stock, only 2 left!

0

16

Cub Cadet 22165-010-0000

Universal Joint B
(Superseded to 22165-010-000AP)

$160.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 91207-004-0000

O-Ring 88X2.8

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 93146-0803-0060

Bolt M8X30

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet 22151-004-0000

Output Shaft-Beari

$40.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 93115-004-0000

Washer
(Superseded to 503-01105)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 22156-004-0000

Output Shaft

$89.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 93706-2050-0000

Bearing-6205

$29.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 22181-004D-0000

Coupling-Flange

$101.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 90607-003-0000

Washer

$2.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 90301-003-0000

Nut M14X1.5

$2.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 22159-003-0000

Lock Ring-M55

$36.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 91103-004-0000

Seal
(Superseded to 503-01116)

$78.99

$

In Stock, only 1 left!

0

28

Cub Cadet 90607-004-0000

Washer

$2.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 90301-004-0000

Nut M16X1.5

$2.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 2216A-004D-0000

Universal Join tComp
(Superseded to 2216A-004-0000P)

$135.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 26414-110-0000

Clip
(Superseded to 503-00233)

$10.99

$

Usually ships in 3-6 days

0
