Challenger 700 Camo (37AX7CLD710) - Cub Cadet 4x4 Utility Vehicle Sidedoor Parts Diagram

4x4 Utility Vehicle

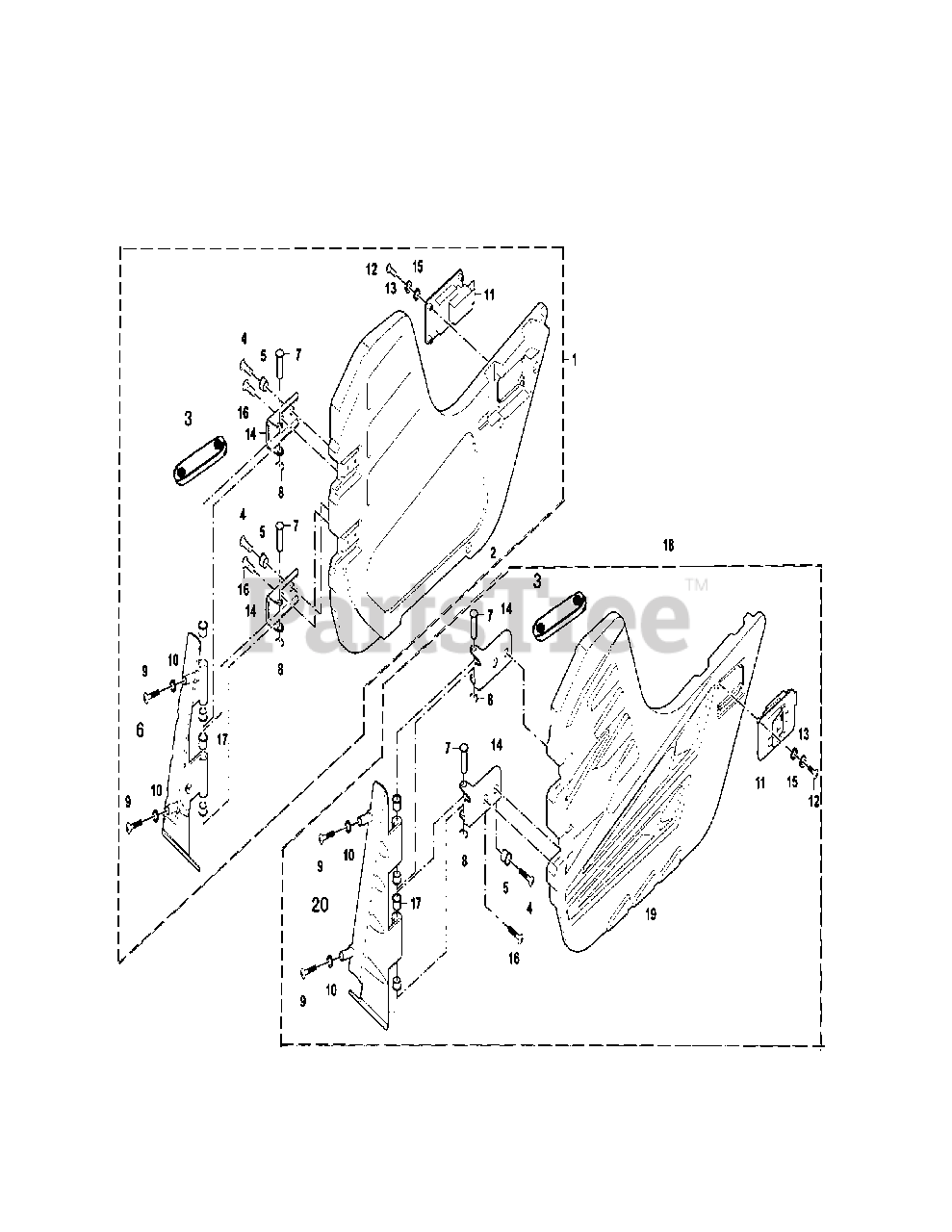

Sidedoor Parts Diagram

  • Title
1

Cub Cadet n/a

Right Door Comp.

Note: Service with components

$

$

Currently unavailable

2

Cub Cadet 84531-115-0000

Right Door
(Superseded to 503-00824)

$212.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 94053-115-0000

Position Return Band III
(Superseded to 503-00825)

$15.99

$

In Stock, only 4 left!

0

4

Cub Cadet 90531-102-0000

Cross large plate head screw M6x16
(Superseded to 503-00091)

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 90692-115-0002

Bushing 6.5x9x22x6.5

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 84532-115-0000

Right Door Mounting Bracket
(Superseded to 503-00828)

$58.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 90694-115-0003

Pin 10x17x44
(Superseded to 503-00829)

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 90753-115-0001

Split Washer 8x1
(Superseded to 503-00830)

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 90122-115-0000

Hexagon Socket Head Bolt M8x22-10x16
(Superseded to 503-00565)

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 54625-115-0000

Curved Washer
(Superseded to 503-00566)

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 84550-115-0000

Right Side Door Locker
(Superseded to 503-00833)

$77.99

$

In Stock, only 4 left!

0

12

$

$

Not available

13

Cub Cadet B01-5-B7

Spring Gasket-5

$2.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 84501-115-0000

Side Door Gemel
(Superseded to 503-00836)

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet PB28-5-B2

Washer5x12x1

$

$

Not available

16

Cub Cadet 90542-103-0002

Cross Large Plate Head Screw M6x12
(Superseded to 503-00140)

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet n/a

Nylon Bushing IV

$

$

Currently unavailable

18

Cub Cadet n/a

Left Door Comp.

Note: Service with components

$

$

Currently unavailable

19

Cub Cadet 84511-115-0000

Left Door
(Superseded to 503-00839)

$212.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 84512-115-0000

Left Door Mounting Bracket
(Superseded to 503-00840)

$45.99

$

Usually ships in 3-6 days

0
