Challenger 700 Camo (37AX7CLD710) - Cub Cadet 4x4 Utility Vehicle Frame Parts Diagram

4x4 Utility Vehicle

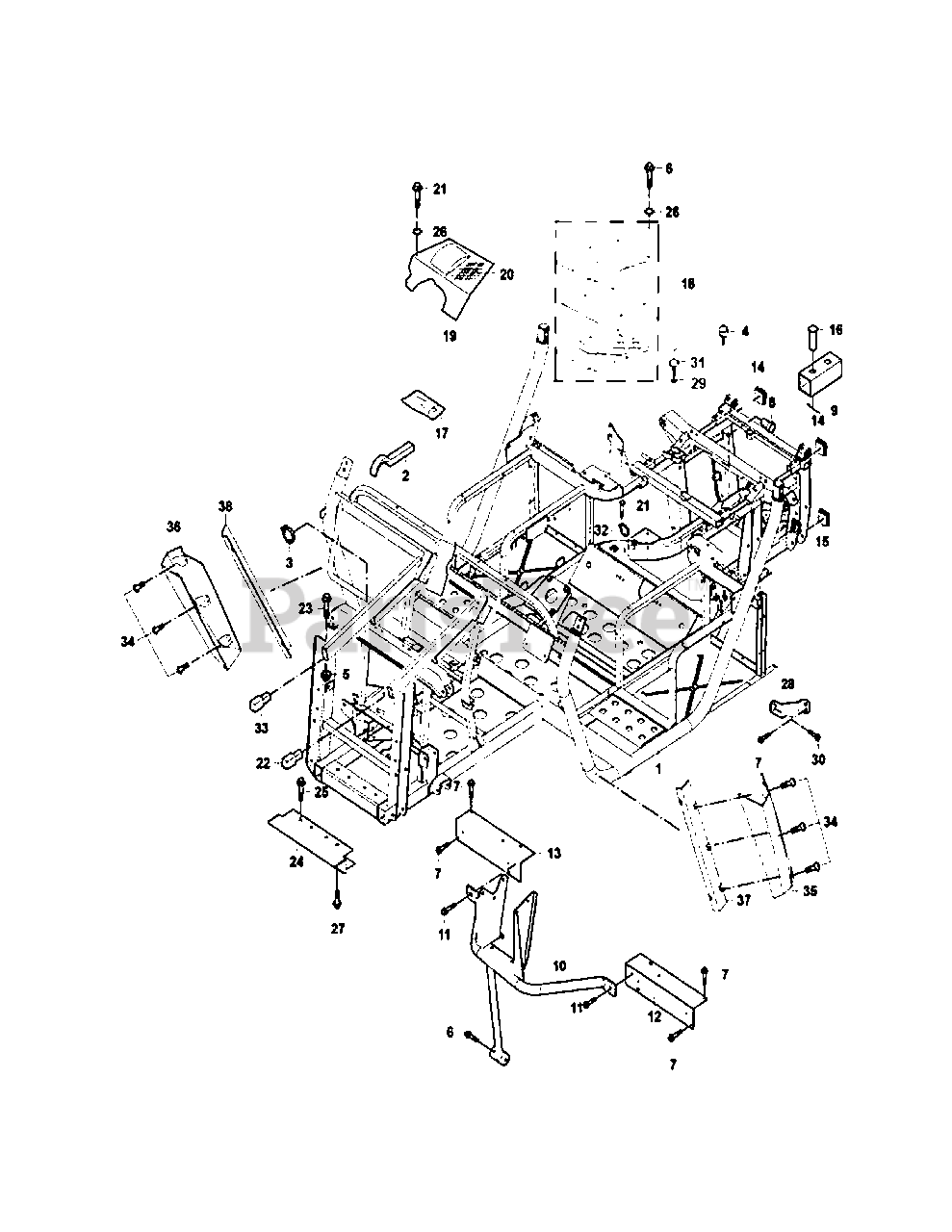

Frame Parts Diagram

  • Title
1

Cub Cadet 5110A-115N-0000

Frame joint parts

$

$

Not available

2

Cub Cadet 89102-116-0000

Shock absorber adjusting wrench

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 90776-115-0000

Clip9
(Superseded to 503-00041)

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 94142-115-0003

Rubber Cushion (Round)24-28

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet B10-M10X1.25-27

Hexagon flange nut M10×1.25

$2.49

$

Usually ships in 3-6 days

0

6

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6×16

$2.49

$

In Stock, only 1 left!

0

7

Cub Cadet B05-M8X16-57

Hexagon Flange Bolt M8×16

$2.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 94142-115-0001

Shock Absorber Cushion 24-11

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 90809-115-0000

R type pin24
(Superseded to 503-00028)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 5425A-115-0000

Middle protective bracket
(Superseded to 503-00051)

$145.99

$

Usually ships in 3-6 days

0

11

Cub Cadet B06-M10X1.25X20

Hexagon flange bolt M10×1.25×20
(Superseded to B06-M10X1.25X22)

$2.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 72101-115-0000

Bracket, left seat
(Superseded to 503-00035)

$35.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 72102-115-0000

Bracket, right seat
(Superseded to 503-00031)

$46.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 82021-115-0001

Frame Pipe Plug 40×25

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 82021-115-0002

Frame Pipe Plug 60×40

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 90694-115-0004

Hitch Bar Pin
(Superseded to 503-00026)

$23.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 89100-115-0000

Tool kit
(Superseded to 89100-115-0100)

$84.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 18323-115N-0000

Insulation board, muffler

$160.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 18324-115-0000

Insulation board, rear bridge
(Superseded to 503-00022)

$64.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 04053710

Insulation paper i

$

$

Currently unavailable

21

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6×16

$2.49

$

In Stock, only 1 left!

0

22

Cub Cadet 5462A-115N-0000

Hinge (L)
(Superseded to 5463A-115N-0000)

$32.99

$

Usually ships in 3-6 days

0

23

Cub Cadet B06-M10X1.25X55

Hexagon Bolt M10×1.25×55

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 73604-115-0000

Bumper holder
(Superseded to 503-00054)

$115.99

$

Usually ships in 3-6 days

0

25

Cub Cadet B06-M12X1.25X35

Hexagon flange bolt M12×1.25×35

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet B03-6-B7

Washer 6×18×1.6
(Superseded to 503-00019)

$4.49

$

In Stock, only 4 left!

0

27

Cub Cadet B06-M12X1.25X25

Hexagon flange bolt M12×1.25×25

$2.49

$

In Stock, only 1 left!

0

28

Cub Cadet 54626-115-0000

Lower installing support, rear bridge
(Superseded to 503-00030)

$14.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 95343-115N-0002

Heat Inslation Foam
(Superseded to 18323-115N-0000)

$160.99

$

Usually ships in 3-6 days

0

30

Cub Cadet B06-M10X1.25X20

Hexagon flange bolt M10×1.25×20
(Superseded to B06-M10X1.25X22)

$2.49

$

Usually ships in 3-6 days

0

31

Cub Cadet B14-3.2X11-53

Screw 3.2×11

$2.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 19031-112-0000

Clip , metal water pipe

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 5463A-115N-0000

Mounting bracket,front body cover

$32.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 90531-102-0000

Cross large plate head screw M6×16
(Superseded to 503-00091)

$6.49

$

In Stock, only 4 left!

0

35

Cub Cadet 83206-115-0000

Left Fender- Front Cover II
(Superseded to 503-00149)

$50.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 83207-115-0000

Right Fender-Front Cover II
(Superseded to 503-00150)

$53.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 54679-115N-0000

Mounting Bracket, Left Fender
(Superseded to 503-00062)

$38.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 54681-115N-0000

Mounting Bracket, Right Fender
(Superseded to 503-00063)

$38.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 94122-119E-0000

Adjust Damping Washer

$3.49

$

Usually ships in 3-6 days

0

40

Cub Cadet B22-M8-27

Nut M8
(Superseded to 503-00002)

$6.49

$

Usually ships in 3-6 days

0
