Challenger 700 Camo (37AX7CLD010) - Cub Cadet 4x4 Utility Vehicle 700UTV Engine Oil Pump Parts Diagram

4x4 Utility Vehicle

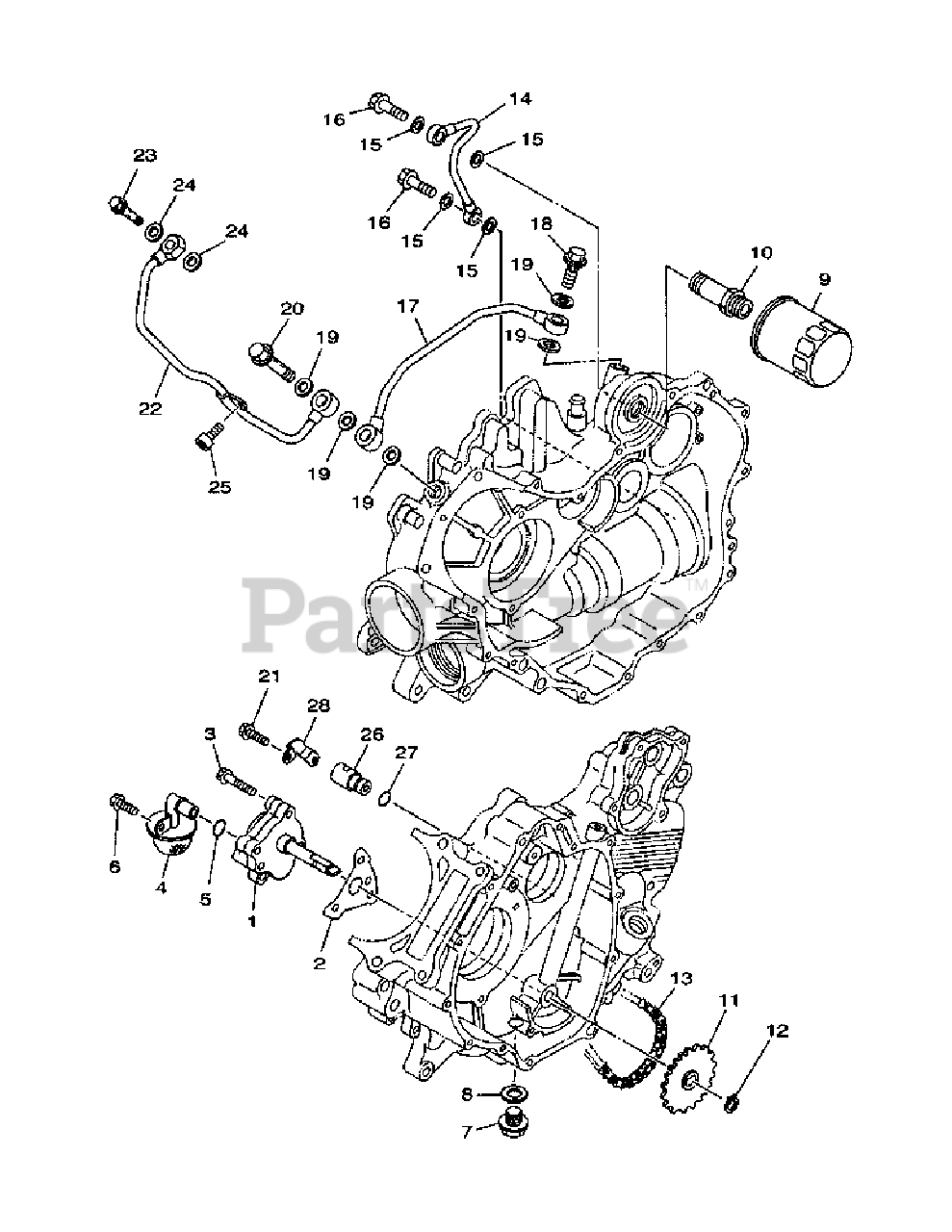

700UTV Engine Oil Pump Parts Diagram

  • Title
1

Cub Cadet 15100-004-0000

Oil Pump-Comp

$39.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 15101-004-0000

Paper Gasket-Oil Pump

$0.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 93107-0604-0060

Flangebolt M6X40

$2.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 15300-004-0000

Oil Filter Net-Comp

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 91206-002-0000

O-Ring 14X2.3

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 93107-0601-4060

Flangebolt M6X14

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 93004-002-0000

Screwm 14X1.5X16

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 90622-004-0000

Aluminum Washer

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 15200-003-0000

Oil Filter-Comp
(Superseded to 503P01156)

$20.99

$

In Stock, Qty 13

0

10

Cub Cadet 15201-004D-0000

Filter-Connecting Head

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 15161-004-0000

Sprocket-Drive

$19.99

$

Usually ships in 3-6 days

0

12

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 15203-004-0000

Chain-Oil Pump 04CH-70 Oil Pump
(Superseded to 503-01160)

$27.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 15301-004-0000

Pipe-Delivery I

$18.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 90613-004-0000

Washer 8×15×2

$2.99

$

Usually ships in 3-6 days

0

16

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 15302-004-0000

Pipe-Delivery II

$23.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 93013-004-0000

Bolt M14X1.5X28

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 90612-004-0000

Washer
(Superseded to 503-01166)

$8.99

$

In Stock, only 4 left!

0

20

Cub Cadet 93014-004-0000

Bolt M14X1.5X50

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 93107-0601-4060

Flangebolt M6X14

$2.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 15303-007-0000

Pipe-Delivery III

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 93012-004-0000

Bolt M10X1.25X30

$2.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 90614-004-0000

Washer10.2×16×1.2

$2.99

$

In Stock, only 3 left!

0

25

Cub Cadet 93107-0601-2060

Flangebolt M6X12

$2.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 15360-004-0000

Relief Valve-Comp

$17.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 91211-004-0000

O-Ring 10X2.45

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 93134-004-0000

Plate-Relief Valve

$2.49

$

Usually ships in 3-6 days

0
