Challenger 500 Yellow (37AW7CKD010) - Cub Cadet 4x4 Utility Vehicle Seat Parts Diagram

4x4 Utility Vehicle

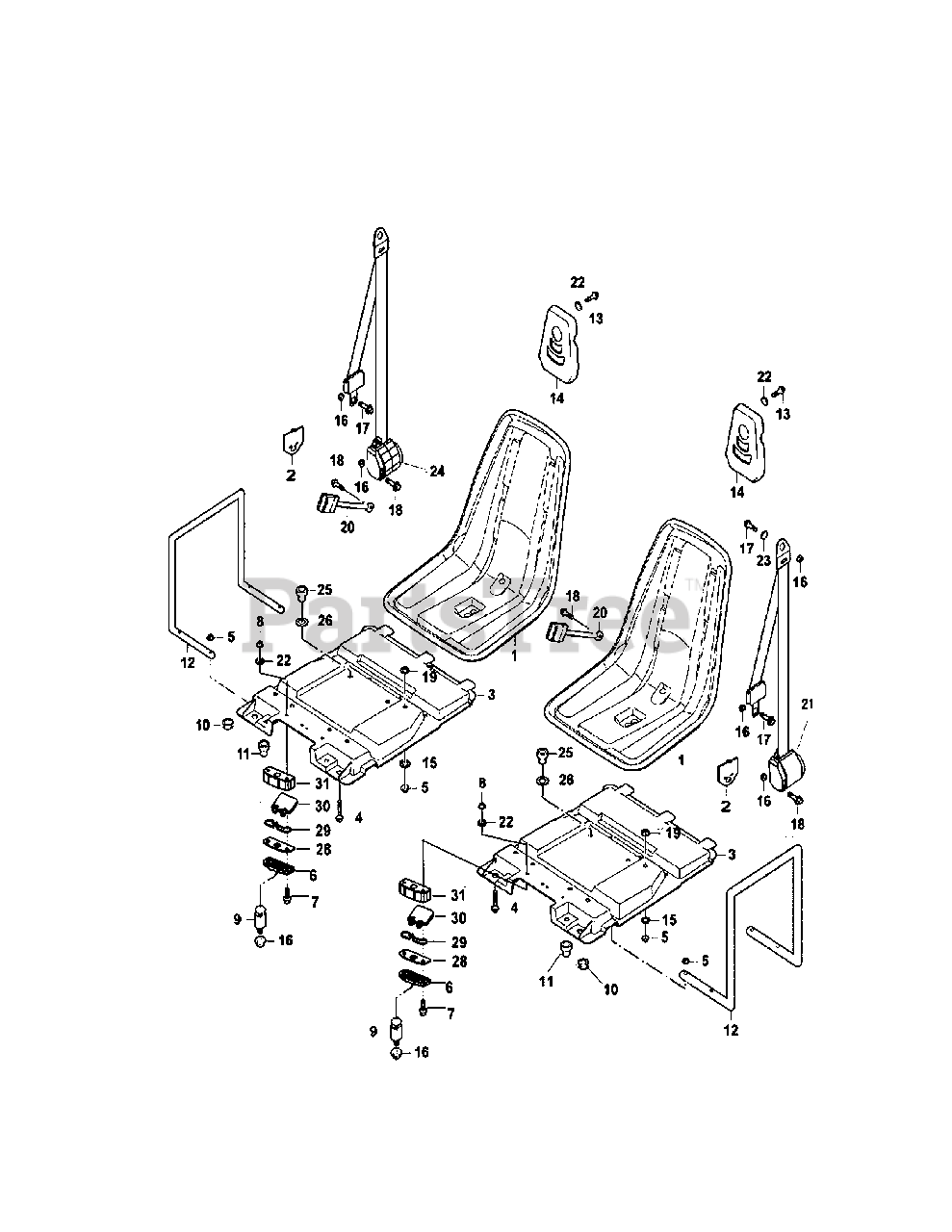

Seat Parts Diagram

  • Title

1

Cub Cadet 71610-115-0000

Seat Assy
(Superseded to 503-00392)

$464.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 71701-115-0000

Safty Belt Placing Plate

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 72104-115-0000

Seat Mounting Board
(Superseded to 503-00394)

$175.99

$

Usually ships in 3-6 days

0

4

Cub Cadet B05-M8X30-57

Hexagon Flange Bolt M8×30

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet B22-M8-27

Hexagon Flange Nut M8
(Superseded to 503-00002)

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 71263-119H-0000

Seat Locker Cover

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet B05-M6X40-57

Hexagon flange bolt M6×40
(Superseded to 503-00864)

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet B22-M6-27

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 37251-115-0000

Locker Bracket, Seat
(Superseded to 503-00400)

$24.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 94142-115-0002

Shock Absorber Cushion III
(Superseded to 503-00401)

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 94142-103-0004

Shock Absorber Cushion VII
(Superseded to 503-00402)

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 72203-115-0000

Side Armrest
(Superseded to 503-00403)

$40.99

$

Usually ships in 3-6 days

0

13

Cub Cadet B05-M6X25-57

Hexagon Flange Bolt M6×25

$2.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 71420-115-0000

Head Rest
(Superseded to 503-00405)

$69.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 90691-102-0001

Cushion 8.5×28×1.5
(Superseded to 503-00407)

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet B10-M10X1.25-27

Hexagon flange nut M10×1.25

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 90181-115-0002

Hexagon Flange Step Bolt M10×1.25×20-14×5
(Superseded to 503-00408)

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet B06-M10X1.25X20

Hexagon flange bolt M10×1.25×20
(Superseded to B06-M10X1.25X22)

$2.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 90691-102-0002

Cushion 10.5×25×3
(Superseded to 503-00407)

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 71750-115N-0000

Safety Belt Buckle
(Superseded to 503-00393)

$71.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 71710-115N-0000

Safety Belt Assy (L)

$94.99

$

Usually ships in 3-6 days

0

22

Cub Cadet B03-6-B7

Washer6×18×1.6
(Superseded to 503-00019)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet n/a

Cushion 10×19×5

$

$

Currently unavailable

24

Cub Cadet 71710-115N-0000

Safety Belt Assy (R)

$94.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 90692-115-0003

Collar Bushing 8×25×36×7

Note: (NLA)

$

$

Not available

26

Cub Cadet n/a

Cushion 8.5×22×1.2

$

$

Currently unavailable

27

Cub Cadet 90691-102-0002

Cushion 10.5×25×3
(Superseded to 503-00407)

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 71137-119H-0000

Seat Spring Pressure-plate

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 71135-119H-0000

Seat Locker Spring

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 71264-119H-0000

Seat Locker Lever

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 71262-119H-0000

Seat Locker Body

$4.99

$

Usually ships in 3-6 days

0
