Challenger 500 Yellow (37AW7CKD010) - Cub Cadet 4x4 Utility Vehicle Air Filter Parts Diagram

4x4 Utility Vehicle

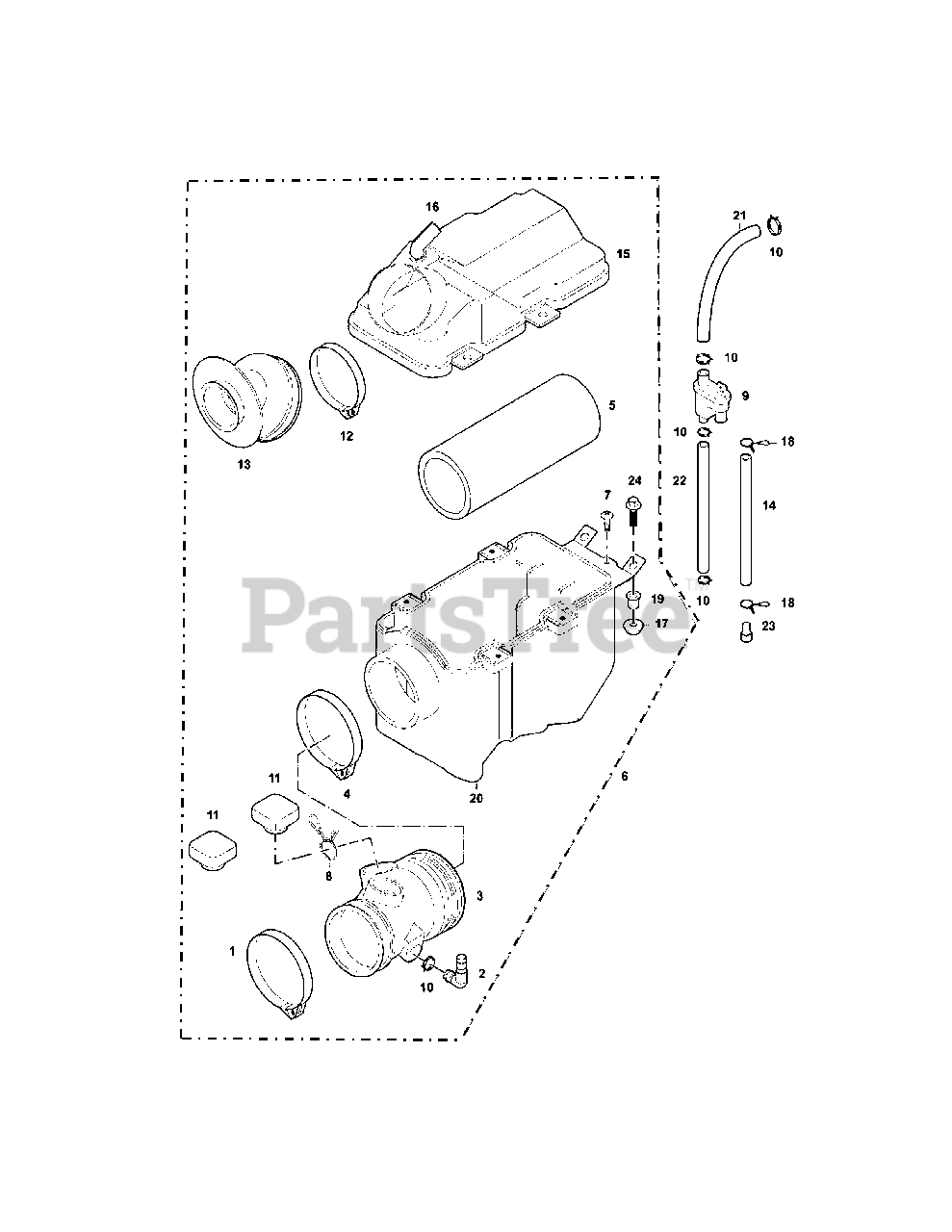

Air Filter Parts Diagram

  • Title
1

Cub Cadet 90751-116-0005

Screw Hoop 60-80
(Superseded to 503-00704)

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16514-115-0036

Rubber Pipe III 11x15x50-50

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 17106-115-0000

Air-Out Pipe
(Superseded to 503-00705)

$59.99

$

In Stock, only 1 left!

0

4

Cub Cadet 90751-116-0005

Clamp IV
(Superseded to 503-00704)

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 17104-115-0000

Air Filter Element
(Superseded to 503-00707)

$90.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 17100-115-0000

Air Filter Assy
(Superseded to 17100-115-0100P)

$194.99

$

Usually ships in 3-6 days

0

7

Cub Cadet B19-M5X12-22

Cross Recessed Plate Head Screw M5x12
(Superseded to PB19-M5X12-22)

$7.49

$

Usually ships in 3-6 days

0

$2.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 17120-104-0000

Oil & Air Separator
(Superseded to 503-00711)

$16.99

$

In Stock, only 3 left!

0

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 17109-115-0000

Connecting Pipe, Muffler
(Superseded to 503-00705)

$59.99

$

In Stock, only 1 left!

0

12

Cub Cadet 90751-116-0005

Clamp IV
(Superseded to 503-00704)

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 17110-115-0000

Primary Air Filter Outlet Pipe
(Superseded to 503-00714)

$39.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 17123-104-0000

Used Oil Collection Pipe

$

$

Not available

15

Cub Cadet 17102-115-0000

Air Filter Cover

$32.99

$

Usually ships in 3-6 days

0

16

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet B22-M6-27

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 17124-104-0000

Steel Clip 12
(Superseded to 90752-115-0004)

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 90692-115-0002

Bushing 6.5x9x22x6.5

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 17101-115-0000

Air Filter Shell
(Superseded to 503-00718)

$98.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 16514-115-0003

Rubber Pipe 11x15x140-90

$14.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 16514-115-0004

EGR Tube 11x15x100
(Superseded to 503-00721)

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 17125-104-0000

Block, Used Oil Pipe

$

$

Not available

24

Cub Cadet B05-M6X20-57

Hexagon Flange Bolt M6x20
(Superseded to 503-00004)

$6.49

$

Usually ships in 3-6 days

0
