Challenger 500 Yellow (37AW7CKD010) - Cub Cadet 4x4 Utility Vehicle 500UTV Engine Throttle Assembly Parts Diagram

4x4 Utility Vehicle

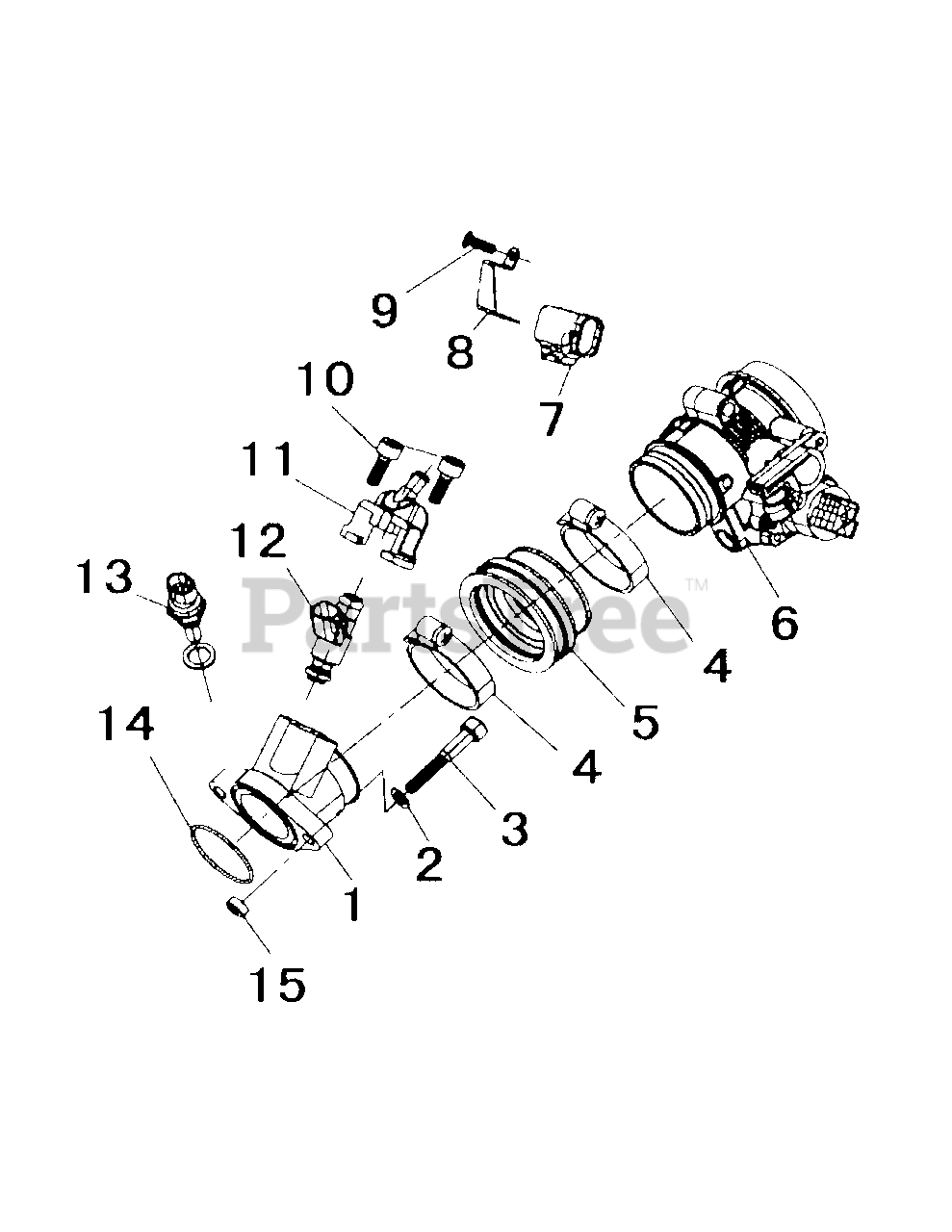

500UTV Engine Throttle Assembly Parts Diagram

  • Title

1

Cub Cadet 14800-004C-0000

Inlet Pipe

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 90611-003-0000

Washer

$2.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 93432-0805-0060

Screw-Hex Head M8 X 50

$1.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 90402-007-0000

Clamp

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 14801-007C-0000

Joint Inlet Pipe

$57.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 16100-004E-0000

Throttle Asm-D46-5

$442.99

$

In Stock, only 1 left!

0

7

Cub Cadet 16723-010-0000

Pressure Sensor-Intake 28086011

$262.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 16701-010-0000

Press Plate-Tmap

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 93404-0400-8060

Screwm 4X8

$1.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 93432-0602-0060

Screw-Cylinder M6 X 20 Inner

$2.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 16431-004C-0000

Seat-Fuel Injection
(Superseded to 759-05903)

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 16400-004C-0000

Fuel Injector-28160355
(Superseded to 16400-004C-000P)

$131.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 36540-010-0000

Sensor-Water Temperature

$59.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 91207-002-0000

O-Ring 44X2

$2.99

$

In Stock, only 1 left!

0

15

Cub Cadet 14811-004C-0000

Bush-Inlet Pipe

$5.49

$

Usually ships in 3-6 days

0
