Challenger 500 Camo (37AW7CLD710) - Cub Cadet 4x4 Utility Vehicle Front Headlight Parts Diagram

4x4 Utility Vehicle

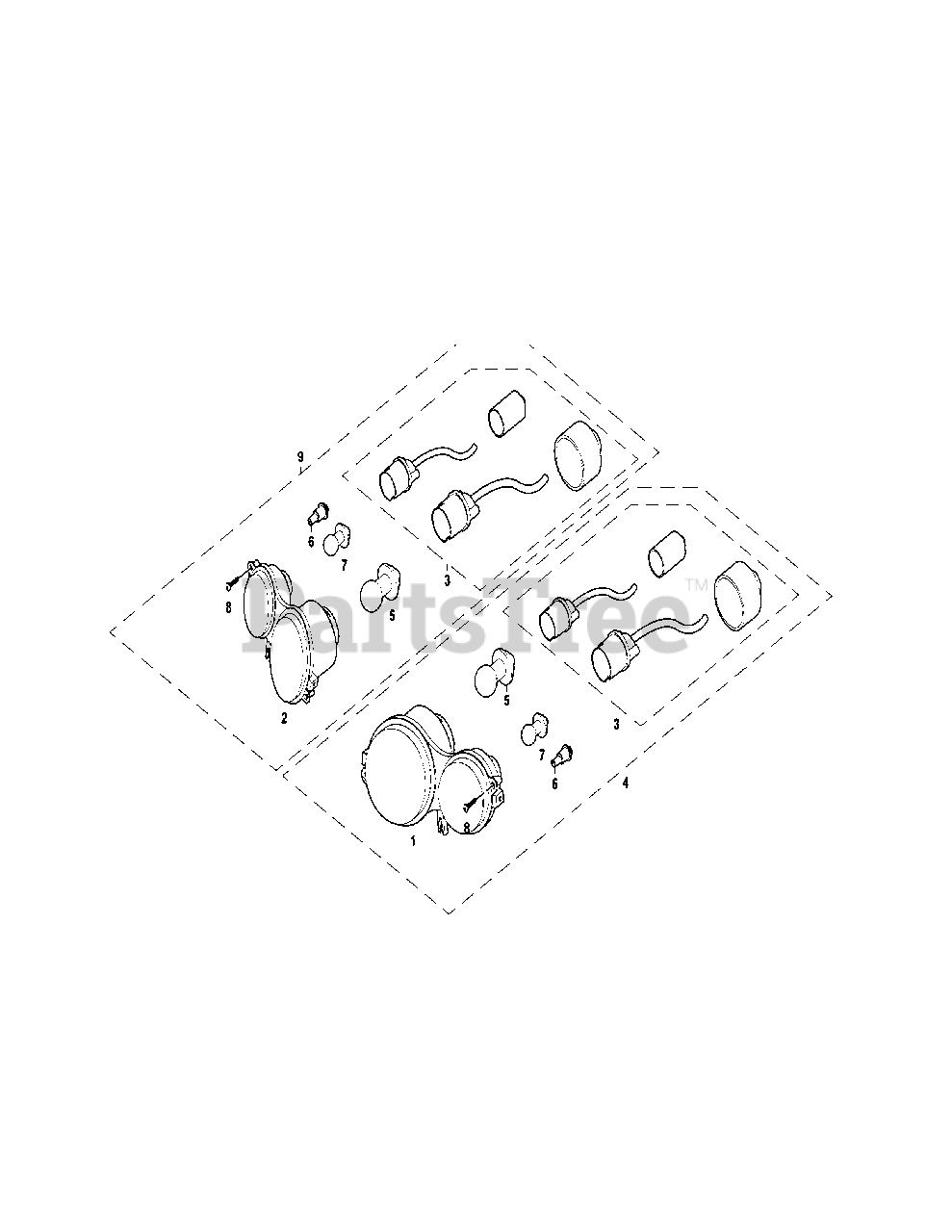

Front Headlight Parts Diagram

  • Title

1

Cub Cadet 35168-115-0100

Lamp Housing (L)
(Superseded to 503-00502)

$120.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 35181-115-0100

Lamp Housing (R)
(Superseded to 503-00503)

$120.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 35164-115-0000

Headlight Cable

$39.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 35160-115N-0100

Left Headlight Assy (Model A)
(Superseded to 503-00502)

$120.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 35163-115-0000

Front Headlight Bulb (12V 35W/35W)
(Superseded to 35163-115-0000P)

$27.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 35171-115-0000

Position Light Bulb (12V 5W)
(Superseded to 35171-115-0000P)

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 35375-115-0000

Front Turninglight Bulb (12V 10W)
(Superseded to 35375-115-0000P)

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet N/A

Cross Recessed Plate Head Tapping Screws ST3.5×9.5

Note: (purchase locally)

$

$

Currently unavailable

9

Cub Cadet 35180-115N-0100

Right Headlight Assy (Model A)
(Superseded to 503-00503)

$120.99

$

Usually ships in 3-6 days

0
