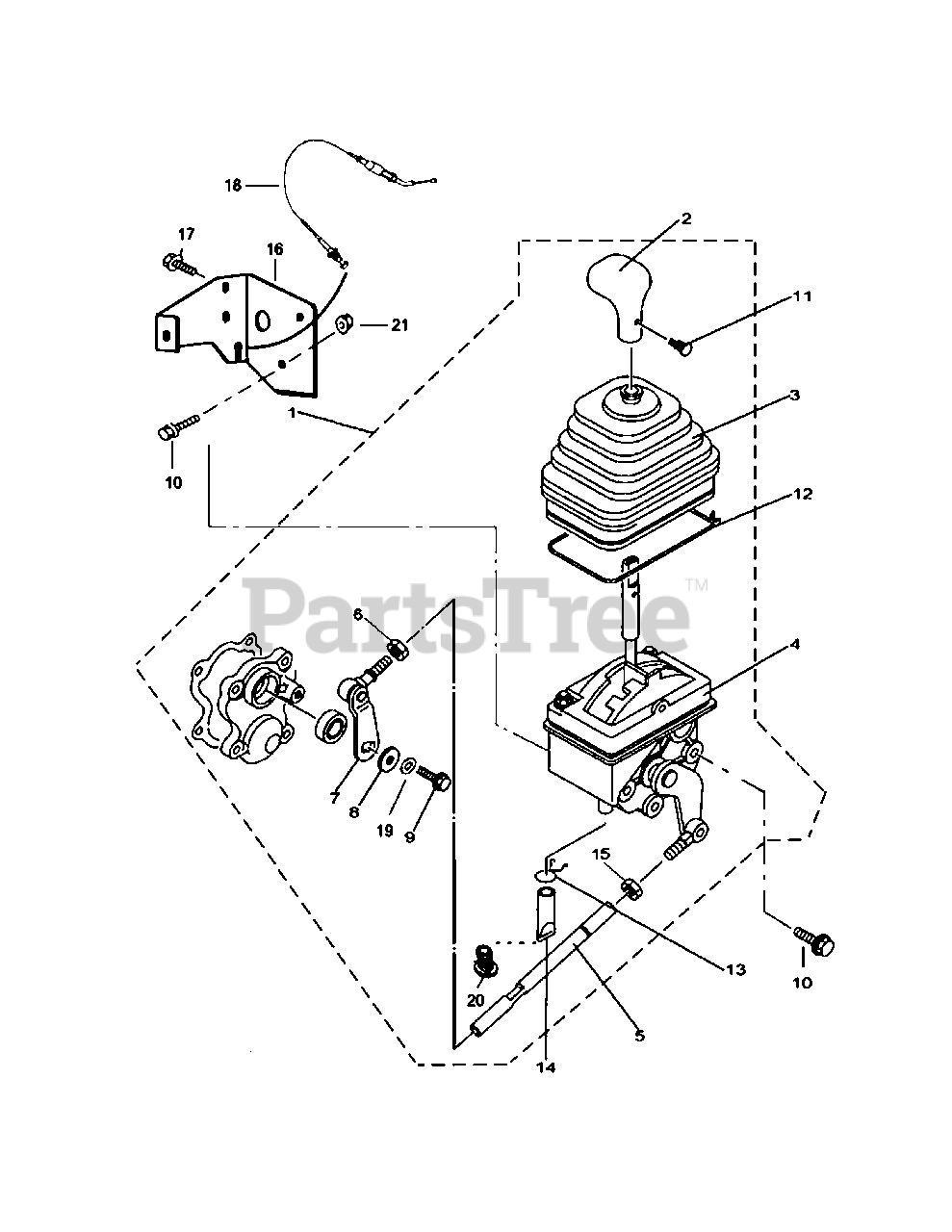

Challenger 500 Camo (37AW7CLD010) - Cub Cadet 4x4 Utility Vehicle Shift Operating System Parts Diagram

4x4 Utility Vehicle

Shift Operating System Parts Diagram

  • Title

1

Cub Cadet 23500-115-0000

Gear Shifter Assembly

$210.99

$

In Stock, only 1 left!

0

2

Cub Cadet 23515-115-0000

Gearshift Knob

$9.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 23518-115-0000

Gearshift Boot

$46.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 23519-115-0000

Gearshift Assy

$295.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 23520-115-0000

Gear Shift Rod

$36.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 93300-0800-0047

Adjust Nut M8

$

$

Not available

7

Cub Cadet 2352A-115-0000

Gearshift Tie Assy

$50.99

$

Usually ships in 3-6 days

0

8

Cub Cadet B03-6-B7

Washer6×18×1.6
(Superseded to 503-00019)

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet B05-M6X16-57

Hexagon Flange Bolt M6×16

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet B05-M8X16-57

Hexagon Flange Bolt M8×16

$2.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 23531-115-0000

Plastic Screw

$1.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 23532-115-0000

Rubber Cover Clamp

$2.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 23533-115-0000

Clip14

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 23534-115-0000

Water Leakage Pipe Cap

$1.99

$

Usually ships in 3-6 days

0

15

Cub Cadet N/A

Adjust Nut M8(L)

Note: (purchase locally)

$

$

Currently unavailable

16

Cub Cadet 54613-115-0000

Gear Shifting Support

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet B05-M6X12-57

Hexagon Flange Bolt M6×12

$2.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 61050-115-0000

Reverse Cable
(Superseded to 503-00012)

$81.99

$

Usually ships in 3-6 days

0

19

Cub Cadet B01-6-B7

Spring Washer -6
(Superseded to 503-00005)

$6.49

$

In Stock, only 4 left!

0

20

Cub Cadet 23535-115-0000

Plug

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet B22-M8-27

Nut M8
(Superseded to 503-00002)

$6.49

$

Usually ships in 3-6 days

0
