Challenger 500 Camo (37AW7CLD010) - Cub Cadet 4x4 Utility Vehicle Fuel Tank Parts Diagram

4x4 Utility Vehicle

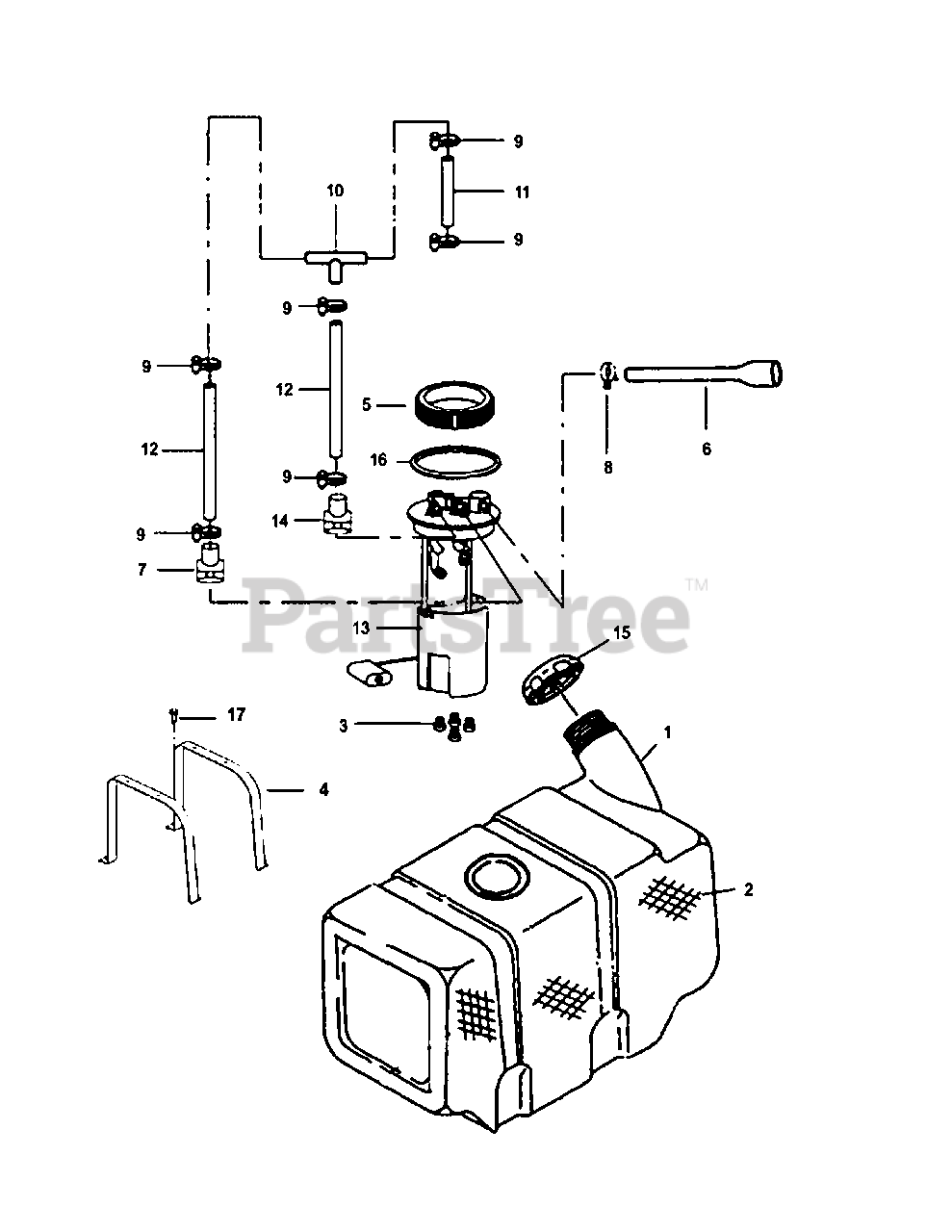

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 81140-115H-0100

Fuel Tank
(Superseded to 503-00357)

$419.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 04053710

Insulation Paper IX

$

$

Currently unavailable

3

Cub Cadet 94088-116-0000

Shock Absorber Cushion VIII

$

$

Not available

4

Cub Cadet 81201-115-0000

Binder Plate, Fuel Tank

$8.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 39505-115-0000

Cover, Fuel Pump(EFI Engine)
(Superseded to 503-00341)

$20.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 16513-115K-0001

Rubber Tube VI (EFI Engine)

$57.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 39582-116-0000

Plug For Fuel Outlet(EFI Engine)
(Superseded to 503-00343)

$23.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 90752-115-0003

Clip10
(Superseded to 503-00344)

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 62627-115-0000

Clip
(Superseded to 503-00387)

$18.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 81108-116-0000

Fuel Three-way Pipe
(Superseded to 503-00346)

$30.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 16511-115H-0002

High-pressure Fuel Pipe 8×14-885

$48.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 16511-110-0001

Fuel Pipe 8×14-330(EFI Engine)

$48.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 39500-115H-1000

Fuel Pump Assy(EFI Engine)
(Superseded to 503-00349B)

$450.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 39581-116-0000

Plug, Fuel Inlet(EFI Engine)
(Superseded to 503-00350)

$33.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 81132-115-0000

Fuel Tank Cap
(Superseded to 503-00351)

$20.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 94021-116-0000

Seal Gasket For Fuel Pump(EFI Engine)
(Superseded to 503-00352)

$13.99

$

In Stock, only 1 left!

0

17

Cub Cadet B05-M8X20-57

Hexagon Flange Bolt M8×20

$2.49

$

Usually ships in 3-6 days

0
