Challenger 500 Camo (37AW7CLD010) - Cub Cadet 4x4 Utility Vehicle Cargo Bed 1 Parts Diagram

4x4 Utility Vehicle

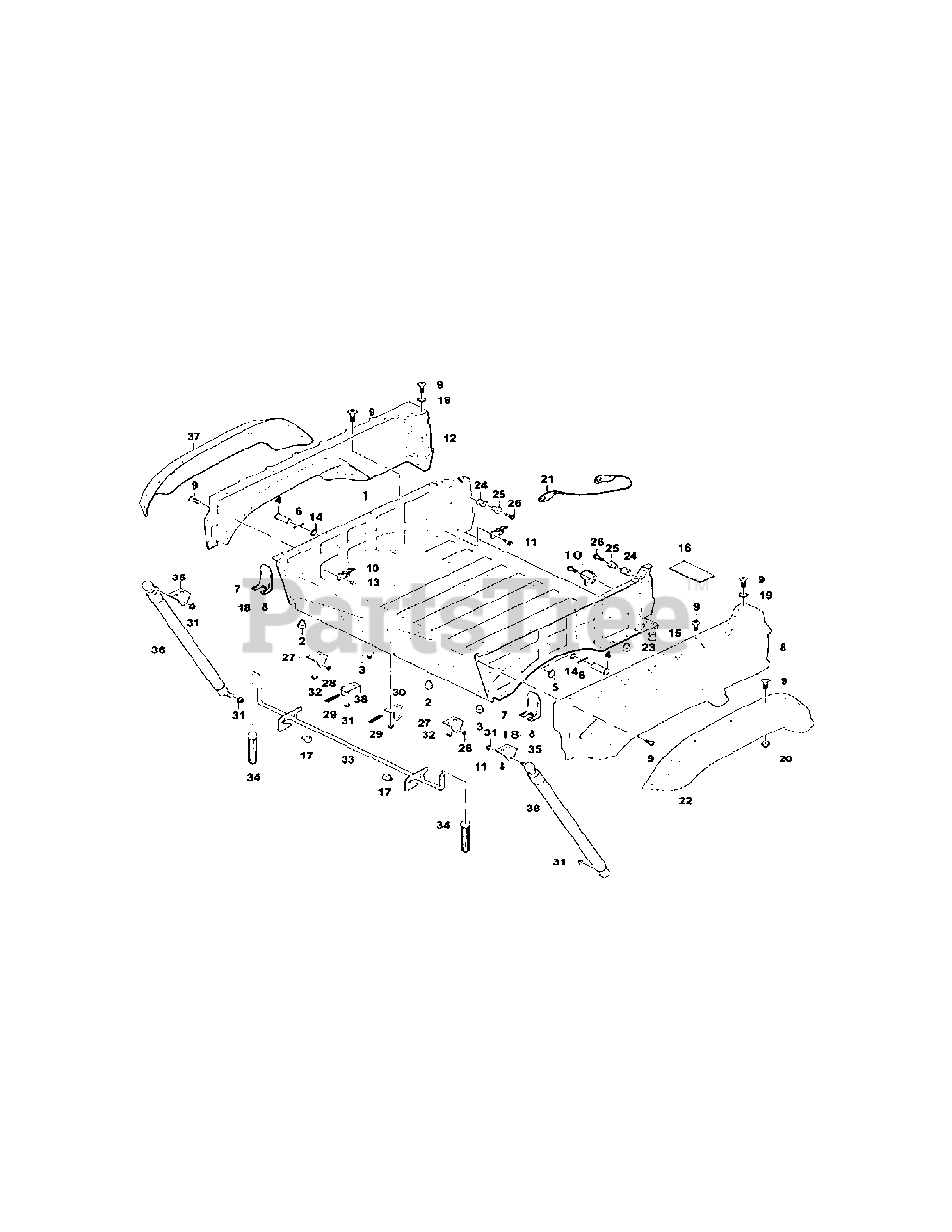

Cargo Bed 1 Parts Diagram

  • Title

1

Cub Cadet 7336A-115-0000

Rear Carrier Assy
(Superseded to 503-00599)

$966.99

$

Usually ships in 3-6 days

0

2

Cub Cadet n/a

Shock Absorber Cushion IV

$

$

Currently unavailable

3

Cub Cadet 94036-115-0000

Shock Absorber Cushion I

$

$

Not available

4

Cub Cadet 90694-115-0001

Pin 12×62
(Superseded to 503-00602)

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 94145-115-0001

Rubber Cushion III
(Superseded to 503-00603)

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 73382-112-0000

R Pin

$2.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 82209-115-0000

Invert Bracket Board, Carrier
(Superseded to 503-00605)

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 73334-115-0127

Left Side Board Assy, Carrier Yellow

$148.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 73334-115-0143

Left Side Board Assy, Carrier Camo
(Superseded to 503-00609)

$244.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 90531-102-0000

Cross large plate head screw M6×16
(Superseded to 503-00091)

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 73345-115-0000

Drawstring Pothook
(Superseded to 503-00611)

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet B05-M6X12-57

Hexagon Flange Bolt M6×12

$2.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 73335-115-0127

Right Side Board Assy, Carrier Yellow

$148.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 73335-115-0143

Right Side Board Assy, Carrier Camo
(Superseded to 503-00616)

$244.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 90442-115-0002

Cap Nut M6×17
(Superseded to 503-00617)

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 90691-112-0005

Wahser13×24×1.5

$5.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 94141-115-0004

I-Shaped Rubber Ring IV
(Superseded to 503-00619)

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 73349-115-0000

Rubber Cushion,Carrier

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 82022-115-0001

Nylon Bushing IV

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet B18ST4.8X16C-W7

Bolt 4.8×16

$2.49

$

In Stock, only 4 left!

0

19

Cub Cadet B03-6-B7

Washer6×18×1.6
(Superseded to 503-00019)

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet B09-M6-27

Hexagon Flange Self-Lock Nuts M6
(Superseded to 503-00007)

$6.49

$

In Stock, Qty 5

0

21

Cub Cadet 73320-115-0000

Trunk Cable
(Superseded to 503-00625)

$8.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 73338-115-0000

Cargo Bed Left Decoration Plate
(Superseded to 503-00626)

$73.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 94142-115-0002

Shock Absorber Cushion III
(Superseded to 503-00401)

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 94141-115-0003

I-Shaped Rubber Ring
(Superseded to 503-00628)

$7.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 90692-115-0001

Bushing 6.5×9×22×17
(Superseded to 503-00082)

$14.99

$

In Stock, only 1 left!

0

26

Cub Cadet B05-M6X40-57

Hexagon flange bolt M6×40
(Superseded to 503-00864)

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 73348-115-0000

Left Invert Bracket Support Lug
(Superseded to 503-00631)

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 94141-115-0002

I-Shaped Rubber Ring IV
(Superseded to 503-00632)

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 95081-115-0002

Tension Spring III
(Superseded to 503-00633)

$7.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 73346-115-0000

Left Mounting Board, Invert Bracket
(Superseded to 503-00634)

$5.49

$

Usually ships in 3-6 days

0

31

Cub Cadet B09-M8-27

Hexagon Flange Lock Nut M8 (Metallic Insert)
(Superseded to B35-M8-57)

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet B22-M6-27

Hexagon Flange Nut M6
(Superseded to 503-01350)

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 7335A-115-0000

Invert Bracket Assy, Carrier
(Superseded to 503-00637)

$59.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 94068-115-0000

Handle Sheath II
(Superseded to 503-00638)

$3.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 54636-115-0000

Gas Spring Mounting Plate

$42.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 73380-115-0000

Gas Spring Assy
(Superseded to 503-00640)

$90.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 73339-115-0000

Cargo Bed Right Decoration Plate
(Superseded to 503-00641)

$75.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 73347-115-0000

Right Mounting Plate, Invert Bracket Assy
(Superseded to 503-00601)

$5.99

$

Usually ships in 3-6 days

0
