Challenger 400LX Yellow (37BV3AHK210) - Cub Cadet 4x2 Utility Vehicle (2019) Seat Parts Diagram

4x2 Utility Vehicle

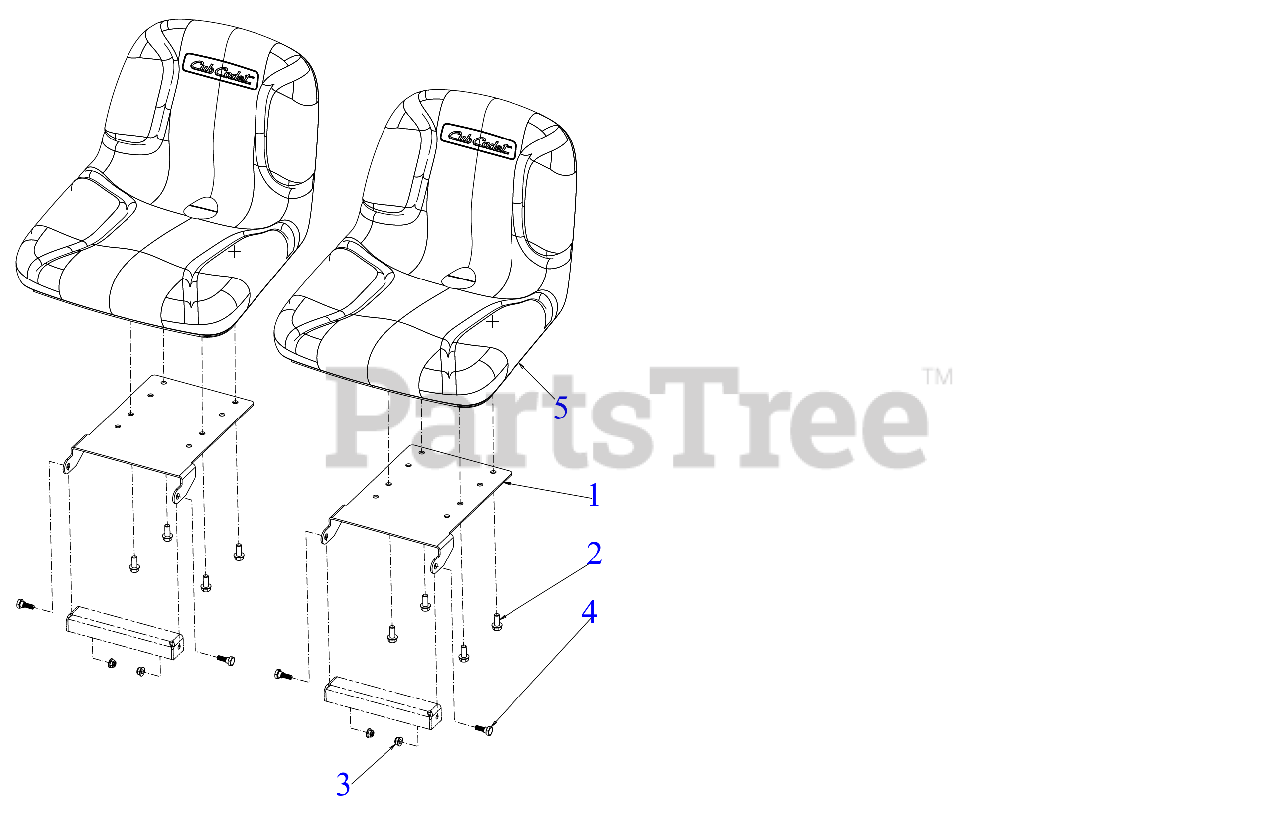

Seat Parts Diagram

  • Title

1

Cub Cadet 707-06146

SEAT PLATE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06146-0637

BRACKET-SEAT PLATE - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 938-0296

SHOULDER SCREW .437 DIA x .265
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 757-04053A

HIGH BACK SEAT (CUB)

$313.99

$

Usually ships in 3-6 days

0
