Challenger 400LX Yellow (37BV3AHK210) - Cub Cadet 4x2 Utility Vehicle (2019) Operator Protection System (OPS) Parts Diagram

4x2 Utility Vehicle

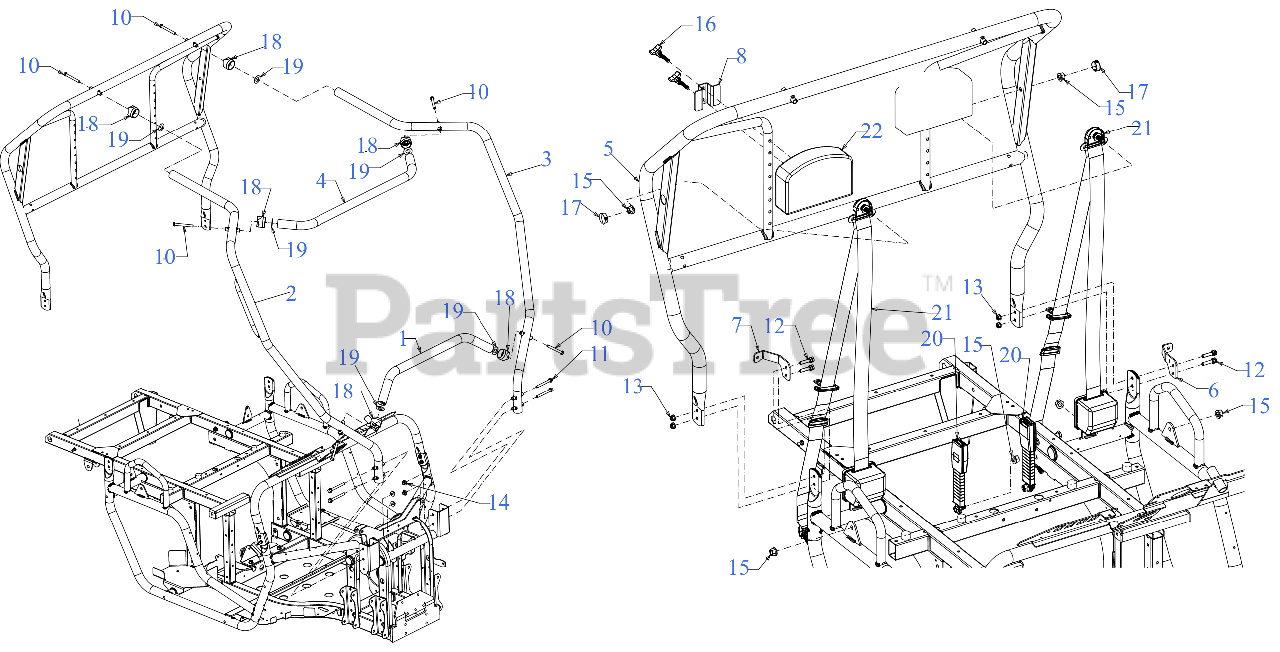

Operator Protection System (OPS) Parts Diagram

  • Title

1

Cub Cadet 649-05058

FRONT OPS ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05058-0637

OPS ASM-XBAR FRONT - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-05063

FRONT OPS ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05063-0637

OPS ASM-FRONT RH - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 649-05064

FRONT OPS ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05064-0637

OPS ASM-FRONT LH - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 649-05110

TOP CROSS BAR

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05110-0637

OPS:TOP CROSS BAR - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

$92.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 649-05127

HEADREST FRAME ASSEMBLY (REAR)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05127-0637

BLACK REAR HEADREST F - POWDER BLACK (0637)

$242.99

$

Usually ships in 3-6 days

0

$242.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-06094A

FENDER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06094A-0637

BRACKET-FENDER LH - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-06099A

FENDER BRACKET MOUNT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06099A-0637

BRACKET-FENDER MT - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-06750

HEADREST MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06750-0637

BLACK HEADREST MOUNTI - POWDER BLACK (0637)

$3.49

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-06484

HEX CAP SCREW 3/8-16:3.25

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06530

HEX FLANGE BOLT 3/8-16:3.50

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 12

0

15

Cub Cadet 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 720-05146

KNOB ASSEMBLY (5/16-18 x 2.00)

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-11225

PANEL PLUG

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-12129

TUBE COLLAR

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 757-05036

3-POINT SEAT BELT

$34.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 757-05037

3-POINT SEAT BELT

$62.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 757-05072

HEADREST PAD

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0
