Challenger 400LX Yellow (37BV3AHK210) - Cub Cadet 4x2 Utility Vehicle (2019) Engine Accessories Parts Diagram

4x2 Utility Vehicle

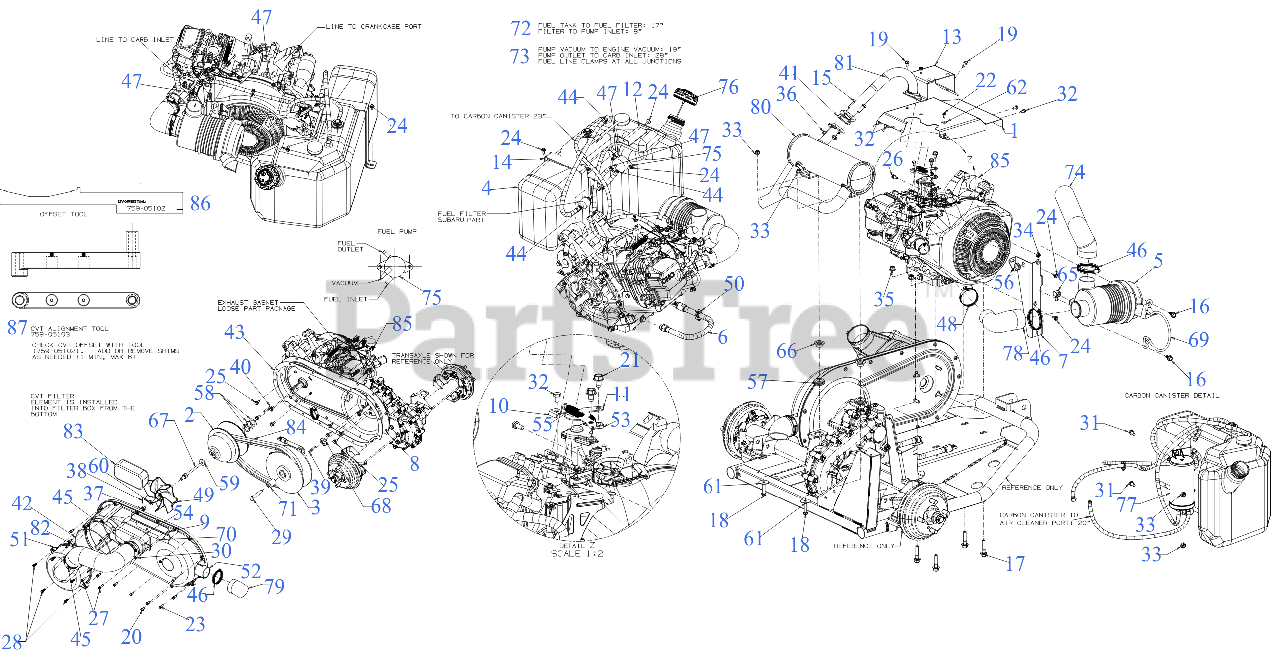

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 607E05151

ENGINE COVER ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07242

CVT DRIVER CLUTCH ASSEMBLY

$864.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-07245

CVT DRIVEN CLUTCH ASSEMBLY

$777.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 651-05356B

FUEL TANK ASSEMBLY (5 GALLON)

$592.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$35.99

$

In Stock, only 2 left!

0

4

Cub Cadet 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 751-15349

FUEL PICKUP GROMMET

Note: (Not Shown)

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 02002253

GROMMET-FUEL TANK

Note: (Not Shown)

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet 951-05361A

AIR CLEANER FILTER ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751-10376

AIR FILTER (CAT/DIESEL)

Note: (Not Shown)

$75.99

$

In Stock, only 4 left!

0

5

Cub Cadet 751-3197

DUST VALVE

Note: (Not Shown)

$37.99

$

In Stock, only 4 left!

0

6

Cub Cadet 651-05527A

OIL DRAIN HOSE ASSEMBLY (M14-1.5MM)

$53.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 721-04929

SEAL WASHER 14MM

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-06490B

AIR FILTER MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06490B-0637

AIR FILTER MOUNTIN - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-06491

BACK COVER PLATE

$136.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707E06589A

CVT INTAKE TUBE SUPPORT

$30.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 707Z06590

SPRING RETENSION BRACKET

$23.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 707Z06608B

THROTTLE MOUNTING BRACKET

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 707E06635A

FUEL TANK TOP BRACKET

$15.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 707E06642A

AIR INLET COVER

$52.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 707-06692

BRKT:STRAP: FUEL TANK

$

$

Currently unavailable

15

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-04640

SCREW 3/8-18 x 1.75 GR5

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 19

0

19

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

22

Cub Cadet 710-06085

SCREW M5-.8X10MM SLOT/TORX

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-06115

SCREW-TT 1/4-20 x .875

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

25

Cub Cadet 710-06525

HEX FLANGE BOLT 5/16-24:0.75

$3.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0788

SCREW 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

28

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

29

Cub Cadet 710-1018

SCREW 1/2-20 x 2.75 GR8

$11.99

$

In Stock, Qty 19

0

30

Cub Cadet 710-1206

SCREW 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

31

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3209

SCREW M6-1.0X10MM GR8.8

$8.49

$

In Stock, Qty 13

0

33

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

37

Cub Cadet 912-3012

HEX NUT CASTLE
(Superseded to 712-3012A)

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 914-0111

COTTER PIN-3/32 DIA x 1.00
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

39

Cub Cadet 714-0139

SQUARE KEY 3/16 x 3/16 x 2

$9.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 714-05029

KEY 1/4 x 3/16

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet BS-692236

EXHAUST GASKET

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet 921-04859

O-RING 7.98 x 8.137 x 0.103

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 921-04871

CVT COVER SEAL

$71.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 726-04080

HOSE CLAMP

$11.99

$

In Stock, Qty 10

0

46

Cub Cadet 726-0476

HOSE CLAMP 2-3"

$12.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 726-05093

HOSE CLAMP 0.470

$2.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 726-05192

ADJUSTABLE HOSE CLAMP 1.31-2.25"

$6.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 731-04275

IMPELLER

$35.99

$

In Stock, only 4 left!

0

50

Cub Cadet 731-10746A

DRAIN HOSE CLIP

$7.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 731-12055

CVT FAN COVER

$22.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 731-12099

CVT COVER
(Superseded to 731-12099A)

$53.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 731-12266

CONTROL PANEL COVER

$5.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 731-12440

CVT FILTER HOUSING

$23.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 732-04973

EXTENSION SPRING

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 735-0225

GROMMET

$3.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 735-05178

GROMMET .75 x 1.063 x .4375

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 936-0163

FLAT WASHER
(Superseded to 736-0163)

$

$

Not available

59

Cub Cadet 736-0247

FLAT WASHER

$9.49

$

In Stock, Qty 12

0

60

Cub Cadet 936-0272

FLAT WASHER .510X.995
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, only 4 left!

0

62

Cub Cadet 736-04424

WASHER

$6.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 737-05062

90 DEGREE FITTING

$6.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 738-05088

SHOULDER SPACER .750 x .145

$4.49

$

In Stock, only 1 left!

0

67

Cub Cadet 738-05193

THREADED FAN ROD

$34.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 738-05196

SHOULDER SPACER

$38.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 747-06691

AIR FILTER STRAP ROD

$19.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 750-04783

SPACER

$3.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 750-06595

CVT DRIVEN SPACER

$11.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 751-10349-28

FUEL HOSE LOW PERMEATION 28"

$41.99

$

In Stock, only 1 left!

0

73

Cub Cadet 751-10750-62

FUEL HOSE LO PERMEATION 62"

$78.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 751-10995

AIR INLET HOSE

$49.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 751-14134

ENGINE FUEL PUMP
(Superseded to 751-14134A)

$49.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-14767

FUEL CAP W/TETHER VENTED
(Superseded to 751P15242A)

$38.99

$

In Stock, only 1 left!

0

77

Cub Cadet 951-14861

CARBON CANISTER

$72.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 751-15289

AIR FILTER INTAKE HOSE

$42.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 751-15306

CVT EXHAUST HOSE

$26.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 751-15344

MUFFLER

$320.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 751-15346

EXHAUST PIPE

$63.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 751-15358

CVT INTAKE TUBE

$85.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15417

CVT INLET FILTER

$20.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 954-05142

CVT BELT 4X2

$157.99

$

Usually ships in 3-6 days

0

85

Cub Cadet SB-EX400VP6100

COMPLETE ENGINE LTV

$2587.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 759-05102

TOOL - CVT OFFSET

$19.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 759-05103

TOOL - CVT ALIGNMENT
(Superseded to 627-00100)

$169.99

$

Usually ships in 3-6 days

0

OIL:SAE 10W30

$

$

Not available
