Challenger 400LX Yellow (37BV3AHK210) - Cub Cadet 4x2 Utility Vehicle (2019) Axle-Rear (Breakdown) Parts Diagram

4x2 Utility Vehicle

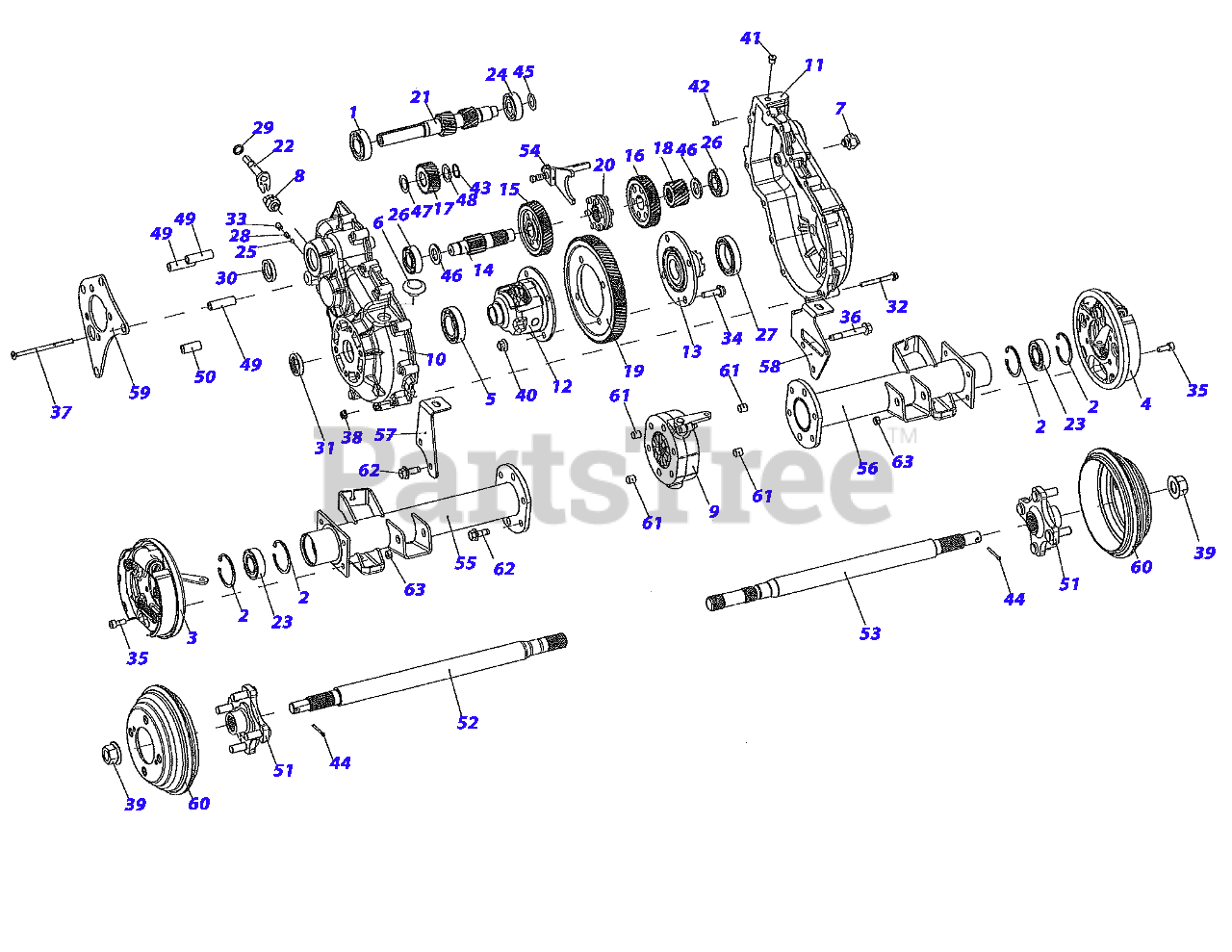

Axle-Rear (Breakdown) Parts Diagram

  • Title

1

Cub Cadet DC-585965

BALL BEARING

$19.99

$

Usually ships in 3-6 days

0

2

Cub Cadet DC-840293

RETAINING RING

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet DC-4171051

BRAKE ASSEMBLY (RH)

$444.99

$

Usually ships in 3-6 days

0

4

Cub Cadet DC-4171052

BRAKE ASSEMBLY (LH)

$444.99

$

Usually ships in 3-6 days

0

5

Cub Cadet DC-002HD111

BALL BEARING

$26.99

$

Usually ships in 3-6 days

0

6

Cub Cadet DC-002HG101

PLUG

$15.99

$

Usually ships in 3-6 days

0

7

Cub Cadet DC-002SJ100

SWITCH

$69.99

$

Usually ships in 3-6 days

0

8

Cub Cadet DC-002SJ101

SWITCH

$79.99

$

Usually ships in 3-6 days

0

9

Cub Cadet DC-012CB109X

DIFF LOCK HOUSING ASSEMBLY

$419.99

$

Usually ships in 3-6 days

0

10

Cub Cadet DC-012CH345X

HOUSING AND SHAFT ASSEMBLY

$311.99

$

Usually ships in 3-6 days

0

11

Cub Cadet DC-012CH416

CASE HOUSING RH

$202.99

$

Usually ships in 3-6 days

0

12

Cub Cadet DC-012DA121X

DIFFERENTIAL ASSEMBLY

$518.99

$

Usually ships in 3-6 days

0

13

Cub Cadet DC-012DC123

FLANGE 1/2-DIFF CA

$206.99

$

Usually ships in 3-6 days

0

14

Cub Cadet DC-012GS200

INTERMEDIATE SHAFT

$105.99

$

Usually ships in 3-6 days

0

15

Cub Cadet DC-012GS202X

FORWARD GEAR ASSEMBLY

$177.99

$

Usually ships in 3-6 days

0

16

Cub Cadet DC-012GS204X

REVERSE GEAR ASSEMBLY

$238.99

$

Usually ships in 3-6 days

0

17

Cub Cadet DC-012GS207XD

IDLER GEAR ASSEMBLY

$159.99

$

Usually ships in 3-6 days

0

18

Cub Cadet DC-012GS215

PINION GEAR

$80.99

$

Usually ships in 3-6 days

0

19

Cub Cadet DC-012GS216

RING GEAR

$231.99

$

Usually ships in 3-6 days

0

20

Cub Cadet DC-012GS302

GEAR-CLUTCH

$132.99

$

Usually ships in 3-6 days

0

21

Cub Cadet DC-012GS307

INPUT SHAFT

$375.99

$

Usually ships in 3-6 days

0

22

Cub Cadet DC-012GV194X

SHIFT ACTUATOR ASSEMBLY

$62.99

$

Usually ships in 3-6 days

0

23

Cub Cadet DC-012HD106

BALL BEARING

$32.99

$

Usually ships in 3-6 days

0

24

Cub Cadet DC-012HD111

BALL BEARING

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet DC-012HD123

DETENT BALL

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet DC-012HD129

BALL BEARING

$34.99

$

Usually ships in 3-6 days

0

27

Cub Cadet DC-012HD142

BALL BEARING

$77.99

$

Usually ships in 3-6 days

0

28

Cub Cadet DC-012HE101

COMPRESSION SPRING

$8.49

$

Usually ships in 3-6 days

0

29

Cub Cadet DC-012HH122

OIL SEAL

$4.49

$

In Stock, only 1 left!

0

30

Cub Cadet DC-012HH128

OIL SEAL

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet DC-012HH139

OIL SEAL

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet DC-012HM110-1

FLANGE SCREW

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet DC-012HM112

SET SCREW 5/16-18 x .500

$7.49

$

Usually ships in 3-6 days

0

34

Cub Cadet DC-012HM129

HEX BOLT

$5.49

$

Usually ships in 3-6 days

0

35

Cub Cadet DC-012HM130-1

CAP SCREW M8 x 1.15 x 10

$5.99

$

Usually ships in 3-6 days

0

36

Cub Cadet DC-012HM137

FLANGE HD CA SCREW

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet DC-012HM158

CAP SCREW

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet DC-012HN120

LOCK NUT

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet DC-012HN127

HEX FLANGE NUT 3/4-16

$10.99

$

Usually ships in 3-6 days

0

40

Cub Cadet DC-012HN138

LOCK NUT

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet DC-012HN140

VENT

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet DC-012HP120

DOWEL PIN

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet DC-012HR128

RETAINING RING

$3.99

$

Usually ships in 3-6 days

0

44

Cub Cadet DC-012HR130

COTTER PIN 1/8 x 1.15

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet DC-012HS120-15

SHIM WASHER

$11.99

$

Usually ships in 3-6 days

0

46

Cub Cadet DC-012HS121

FLAT SPACER

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet DC-012HS125

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

48

Cub Cadet DC-012HS126

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet DC-012HS142-1

MOUNTING COVER SPACER

$20.99

$

Usually ships in 3-6 days

0

50

Cub Cadet DC-012HS142-2

MOUNTING COVER SPACER

$20.99

$

Usually ships in 3-6 days

0

51

Cub Cadet DC-012HU143X

WHEEL HUB ASSEMBLY

$80.99

$

Usually ships in 3-6 days

0

52

Cub Cadet DC-012SR170-1

AXLE SHAFT ASSEMBLY

$170.99

$

Usually ships in 3-6 days

0

53

Cub Cadet DC-012SR171-1

REAR AXLE SHAFT ASEMBLY

$196.99

$

Usually ships in 3-6 days

0

54

Cub Cadet DC-012SV118X

SHIFT FORK ASSEMBLY

$152.99

$

Usually ships in 3-6 days

0

55

Cub Cadet DC-012TA485X

TUBE ASSEMBLY (LH)

$360.99

$

Usually ships in 3-6 days

0

56

Cub Cadet DC-012TA486X

TUBE ASSEMBLY (RH)

$414.99

$

Usually ships in 3-6 days

0

57

Cub Cadet DC-012TF329

EXHAUST BRACKET

$66.99

$

Usually ships in 3-6 days

0

58

Cub Cadet DC-012TF330

DIFF LOCK BRACKET

$68.99

$

Usually ships in 3-6 days

0

59

Cub Cadet DC-012TH101

CVT COVER ASSEMBLY

$162.99

$

Usually ships in 3-6 days

0

60

Cub Cadet DC-012WA135

BRAKE DRUM

$133.99

$

Usually ships in 3-6 days

0

61

Cub Cadet DC-026HP100

LOCATING BUSHING

$4.99

$

Usually ships in 3-6 days

0

62

Cub Cadet DC-070HM282

FLANGE SCREW

$3.99

$

Usually ships in 3-6 days

0

63

Cub Cadet DC-070HN218

LOCK NUT

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet DC-X4171050

BRAKE PAD KIT (SET OF 4)
(Superseded to DC-X4171299)

$270.99

$

Usually ships in 3-6 days

0

Cub Cadet DC-4171021

BRAKE PAD (SINGLE SHOE)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07231

REAR TRANSAXLE ASSEMBLY

$4257.99

$

Usually ships in 3-6 days

0
