Challenger 400 Yellow (37CV3BHK010) - Cub Cadet 4x4 Utility Vehicle (2020) Fuel Accessories Parts Diagram

4x4 Utility Vehicle

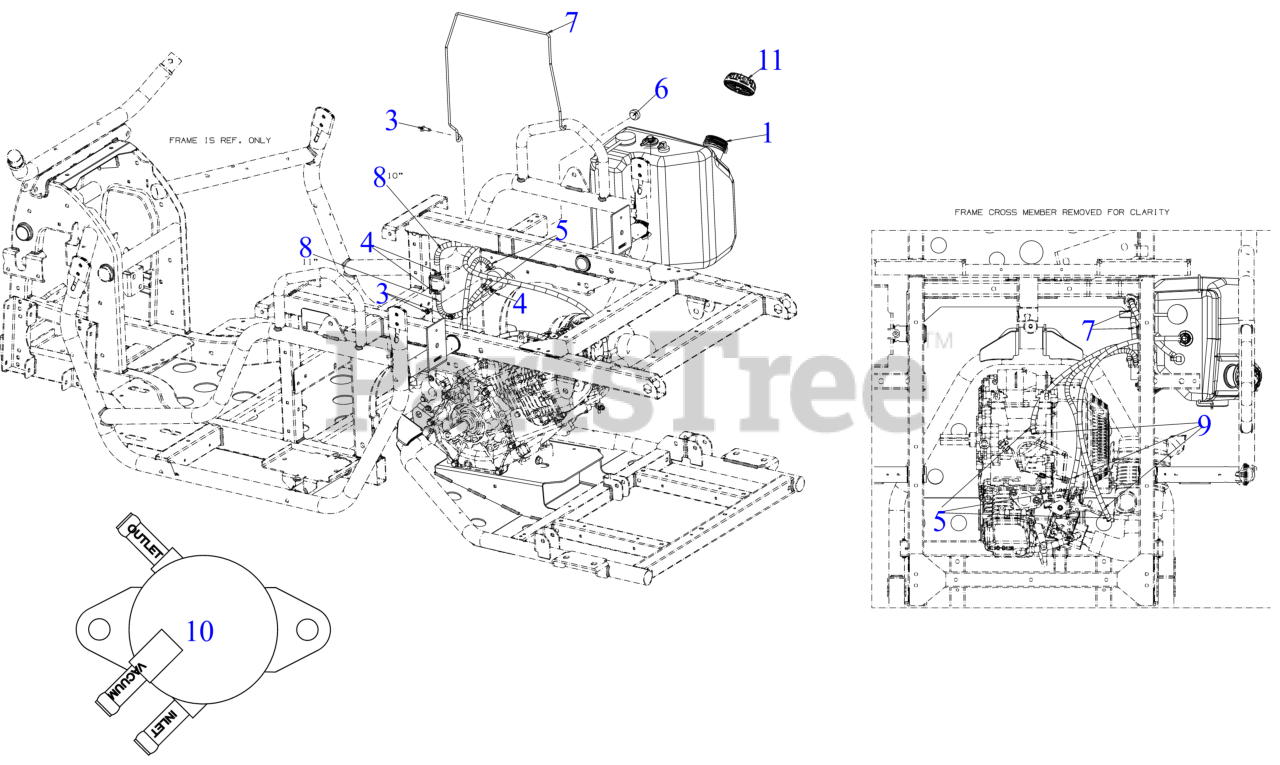

Fuel Accessories Parts Diagram

  • Title
1

Cub Cadet 651P06555

FUEL TANK (3.9GAL)

Note: (See Separate Breakdown)

$135.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-05093

HOSE CLAMP 0.470

$2.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 747E07000

FUEL TANK RETENTION ROD

$19.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 751-10349-22

FUEL HOSE LOW PERMEATION 22"

$25.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-10750-62

FUEL HOSE LO PERMEATION 62"

$78.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 751-14134

ENGINE FUEL PUMP
(Superseded to 751-14134A)

$49.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-14767

FUEL CAP W/TETHER VENTED
(Superseded to 751P15242A)

$38.99

$

In Stock, only 1 left!

0
