Challenger 400 Yellow (37BV3BHK010) - Cub Cadet 4x4 Utility Vehicle (2019) Steering Parts Diagram

4x4 Utility Vehicle

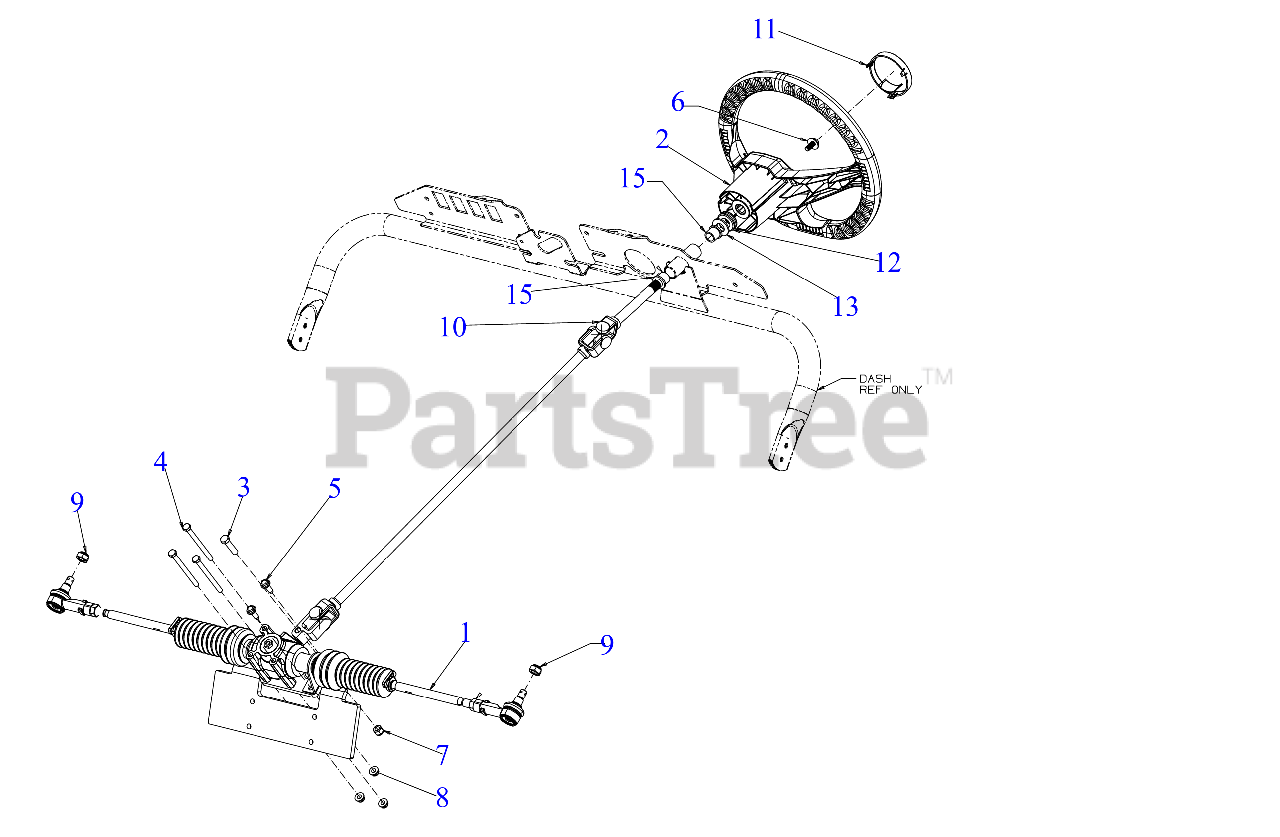

Steering Parts Diagram

  • Title

1

Cub Cadet 917-05062

STEERING GEARBOX ASSEMBLY

$400.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-05102A

STEERING WHEEL

$91.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet 710-05410

SCREW 5/16-18 x 4.00 GR5

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0602

SCREW 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-06154B

SCREW 5/16-24 x .85 GR5

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet 712-0130

HEX NUT INS L-3/8-16

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04086

NUT

$8.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 917-05420

STEERING SHAFT ASSEMBLY

$121.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-13494

STEERING WHEEL CAP

$27.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 735-0277A

RUBBER GROMMET

Note: (If Applicable)

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-04586

FLAT WASHER .656 x 1.312 x .097

Note: (If Applicable)

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 941-0353

FLANGE BEARING
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

Cub Cadet 759-05116

BALL JOINT TIE ROD END

Note: (Not Shown)

$38.99

$

In Stock, only 2 left!

0

Cub Cadet 759-05112

STEERING BOOT LTV

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

7" CABLE TIE

Note: (Not Shown)

$3.99

$

In Stock, only 2 left!

0
