Challenger 400 Yellow (37BV3BHK010) - Cub Cadet 4x4 Utility Vehicle (2018) Engine Accessories Parts Diagram

4x4 Utility Vehicle

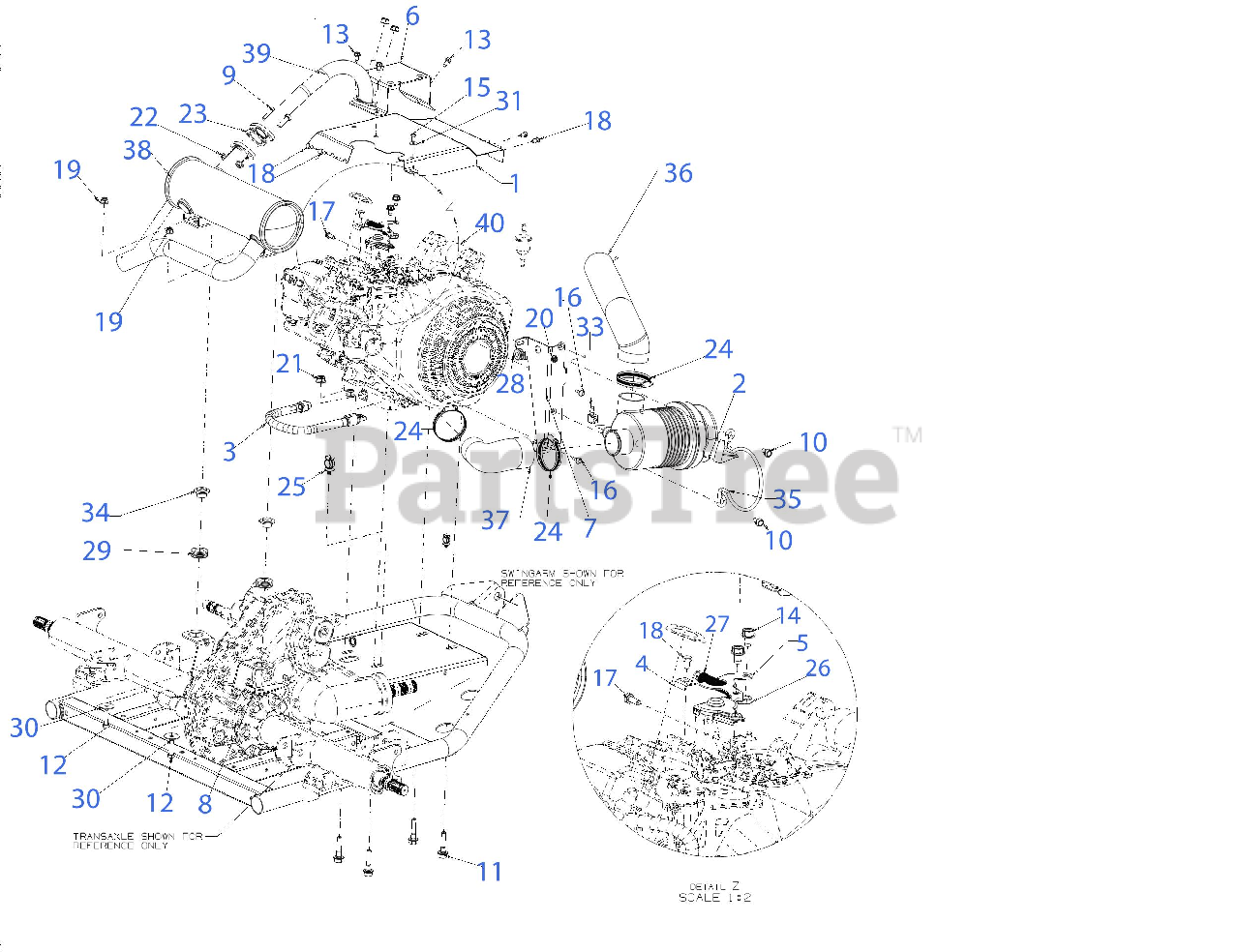

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 607E05151

ENGINE COVER ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-05361A

AIR CLEANER FILTER ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 751-10376

AIR FILTER (CAT/DIESEL)

Note: (Not Shown)

$75.99

$

In Stock, only 4 left!

0

2

Cub Cadet 751-3197

DUST VALVE

Note: (Not Shown)

$37.99

$

In Stock, only 4 left!

0

3

Cub Cadet 651-05527

OIL DRAIN HOSE ASSEMBLY M14-1.5MM

$53.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 721-04929

SEAL WASHER 14MM

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707Z06590

SPRING RETENSION BRACKET

$23.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707Z06608B

THROTTLE MOUNTING BRACKET

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707E06642A

AIR INLET COVER

$52.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-06803

AIR CLEANER MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06803-0637

BLACK AIR CLEANER MOU - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707E06944

THROTTLE MOUNTING BRACKET

$16.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-04640

SCREW 3/8-18 x 1.75 GR5

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

15

Cub Cadet 710-06085

SCREW M5-.8X10MM SLOT/TORX

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3209

SCREW M6-1.0X10MM GR8.8

$8.49

$

In Stock, Qty 13

0

19

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-692236

EXHAUST GASKET

$5.49

$

In Stock, Qty 20+

0

24

Cub Cadet 726-0476

HOSE CLAMP 2-3"

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-10746A

DRAIN HOSE CLIP

$7.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-12266

CONTROL PANEL COVER

$5.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-04973

EXTENSION SPRING

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 735-0225

GROMMET

$3.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 735-05178

GROMMET .75 X 1.063 X .4375

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, Qty 7

0

31

Cub Cadet 736-04424

WASHER

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 737-05062

90 DEGREE FITTING

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-05088

SHOULDER SPACER .750 x .145

$4.49

$

In Stock, only 1 left!

0

35

Cub Cadet 747-06691

AIR FILTER STRAP ROD

$19.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-10995

AIR INLET HOSE

$49.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 751-15289

AIR FILTER INTAKE HOSE

$42.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 751-15344

MUFFLER

$320.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 751-15346

EXHAUST PIPE

$63.99

$

Usually ships in 3-6 days

0

40

Cub Cadet SB-EX400VP6100

COMPLETE ENGINE

$2587.99

$

Usually ships in 3-6 days

0

OIL:SAE 10W30

$

$

Not available

Cub Cadet 759-05102

CVT OFFSET TOOL

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-05103

CVT ALIGNMENT TOOL
(Superseded to 627-00100)

$169.99

$

Usually ships in 3-6 days

0
