Challenger 400 Yellow (37BV3BHK010) - Cub Cadet 4x4 Utility Vehicle (2018) Axle-Rear Parts Diagram

4x4 Utility Vehicle

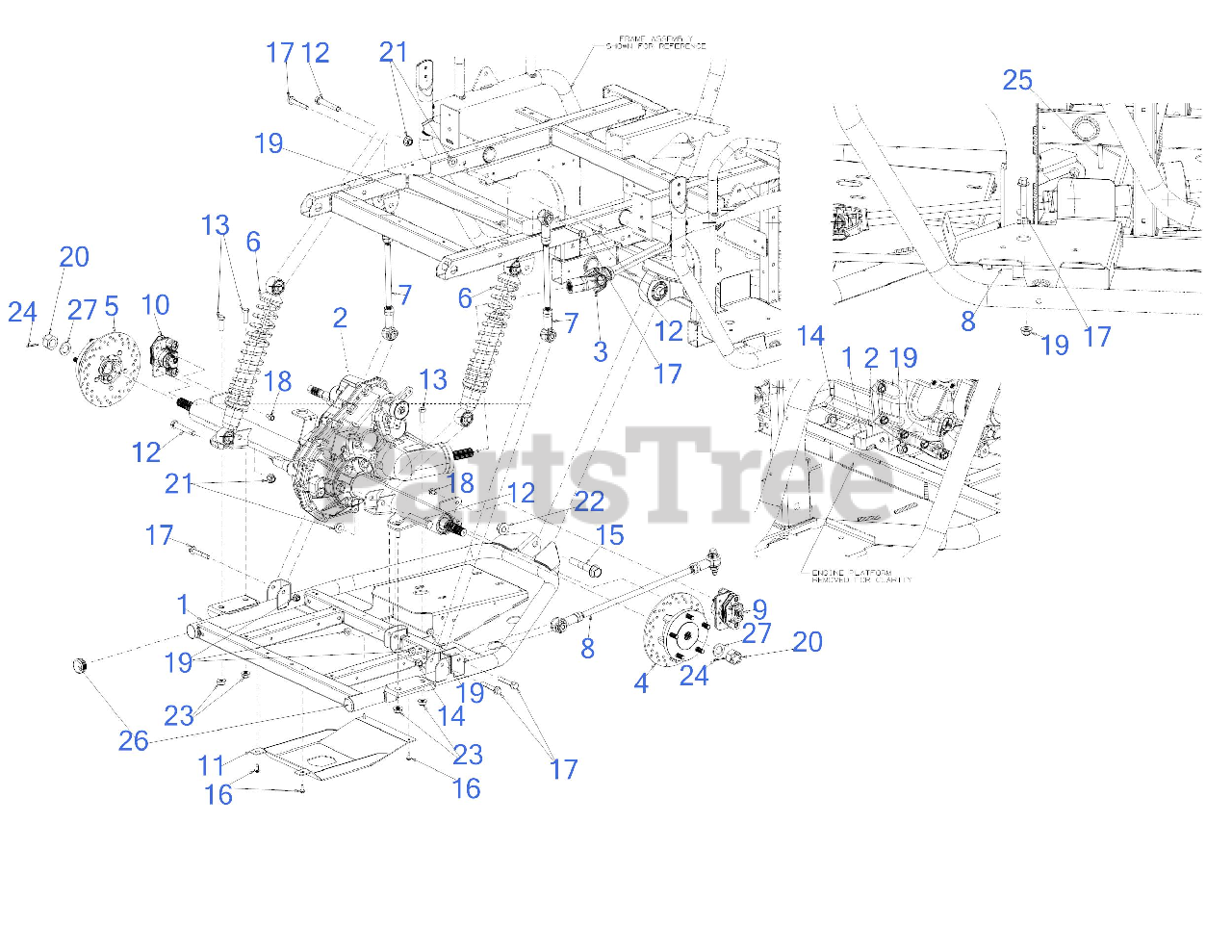

Axle-Rear Parts Diagram

  • Title
1

Cub Cadet 607-05185

SWING ARM FRAME

Variations

Cub Cadet 607-05185-0637

BLACK SWING ARM FRAME - POWDER BLACK (0637)

$651.99

$

Usually ships in 3-6 days

0

$566.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07359

TRANSMISSION ASSEMBLY 4X4

Note: (See Separate Breakdown)

$3801.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-07393

REAR DRIVE SHAFT ASSEMBLY

$435.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-07411

WHEEL HUB ASSEMBLY (RIGHT REAR)

$130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-06937

DISK BRAKE (8.00X.188)

$74.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

Note: (Not Shown)

$6.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0433

SCREW 1/4-20 x .62 SPEC GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 918-07513

WHEEL HUB ASSEMBLY (LEFT REAR)

$149.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-06937

DISK BRAKE (8.00X.188)

$74.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

Note: (Not Shown)

$6.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0433

SCREW 1/4-20 x .62 SPEC GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 941-00106

SHOCK ABSORBER ASSEMBLY (REAR)

$220.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 947-05103

LOWER SWAY ROD ASSEMBLY

$113.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 923-05038

BALL JOINT 5/8 X 5/8-18 X 1.5

Note: (Not Shown)

$108.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

Note: (Not Shown)

$4.99

$

In Stock, Qty 13

0

8

Cub Cadet 947-05106

RADIAL ROD ASSEMBLY

$121.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 923-05038

BALL JOINT 5/8 X 5/8-18 X 1.5

Note: (Not Shown)

$108.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

Note: (Not Shown)

$4.99

$

In Stock, Qty 13

0

9

Cub Cadet 961-04043

FRONT BRAKE CALIPER ASSEMBLY (RH)

$151.99

$

In Stock, only 1 left!

0

9

Cub Cadet 918-04489

WHEEL HUB ASSEMBLY

Note: (Not Shown)

$178.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 759-05065

HOUSING

Note: (Not Shown)

$339.99

$

In Stock, only 3 left!

0

9

Cub Cadet 707-04436A

BRAKE DISC 8.00 x .188
(Superseded to 707-06937)

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 961-04064

BRAKE PAD KIT

Note: (Not Shown)

$104.99

$

In Stock, Qty 14

0

9

Cub Cadet 741-04166

DOUBLE ROW BEARING

Note: (Not Shown)

$276.99

$

In Stock, only 1 left!

0

10

Cub Cadet 961-04044

FRONT BRAKE CALIPER ASSEMBLY (LH)

$151.99

$

In Stock, only 3 left!

0

10

Cub Cadet 918-04489

WHEEL HUB ASSEMBLY

Note: (Not Shown)

$178.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 759-05065

HOUSING

Note: (Not Shown)

$339.99

$

In Stock, only 3 left!

0

10

Cub Cadet 707-04436A

BRAKE DISC 8.00 x .188
(Superseded to 707-06937)

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 961-04064

BRAKE PAD KIT

Note: (Not Shown)

$104.99

$

In Stock, Qty 14

0

10

Cub Cadet 741-04166

DOUBLE ROW BEARING

Note: (Not Shown)

$276.99

$

In Stock, only 1 left!

0

11

Cub Cadet 707E06823

TRANSMISSION SHIELD BRACKET

$64.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 X 3.00

$7.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-04070

HEX SCREW 7/16-14 x 1.25

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-04640

SCREW 3/8-18 x 1.75 GR5

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-04747

HEX FLANGE BOLT 5/8-11:3.75

$24.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 7

0

17

Cub Cadet 710-06535

HEX FLANGE BOLT 5/16-16:2.5

$9.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-06653

FLANGE BOLT (1.25 x 16 x 8.8)

$4.99

$

Usually ships in 3-6 days

0

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04109

SLOTTED NUT22X1.5

$52.99

$

Usually ships in 3-6 days

0

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 14

0

23

Cub Cadet 712-05165

HEX FLANGE LOCK NUT 7/16-14

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 914-0470

COTTER PIN
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 715-05085

ROLL PIN (5/16-1.75)

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-05368

BUMPER CAP

$5.99

$

In Stock, Qty 10

0

27

Cub Cadet 936-0291

THRUST WASHER
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0
