CH940-3004 - Kohler Command PRO Engine, Basic Version, 32.5hp, 999cc 06 Blower Housing Parts Diagram

Command PRO Engine, Basic Version, 32.5hp, 999cc

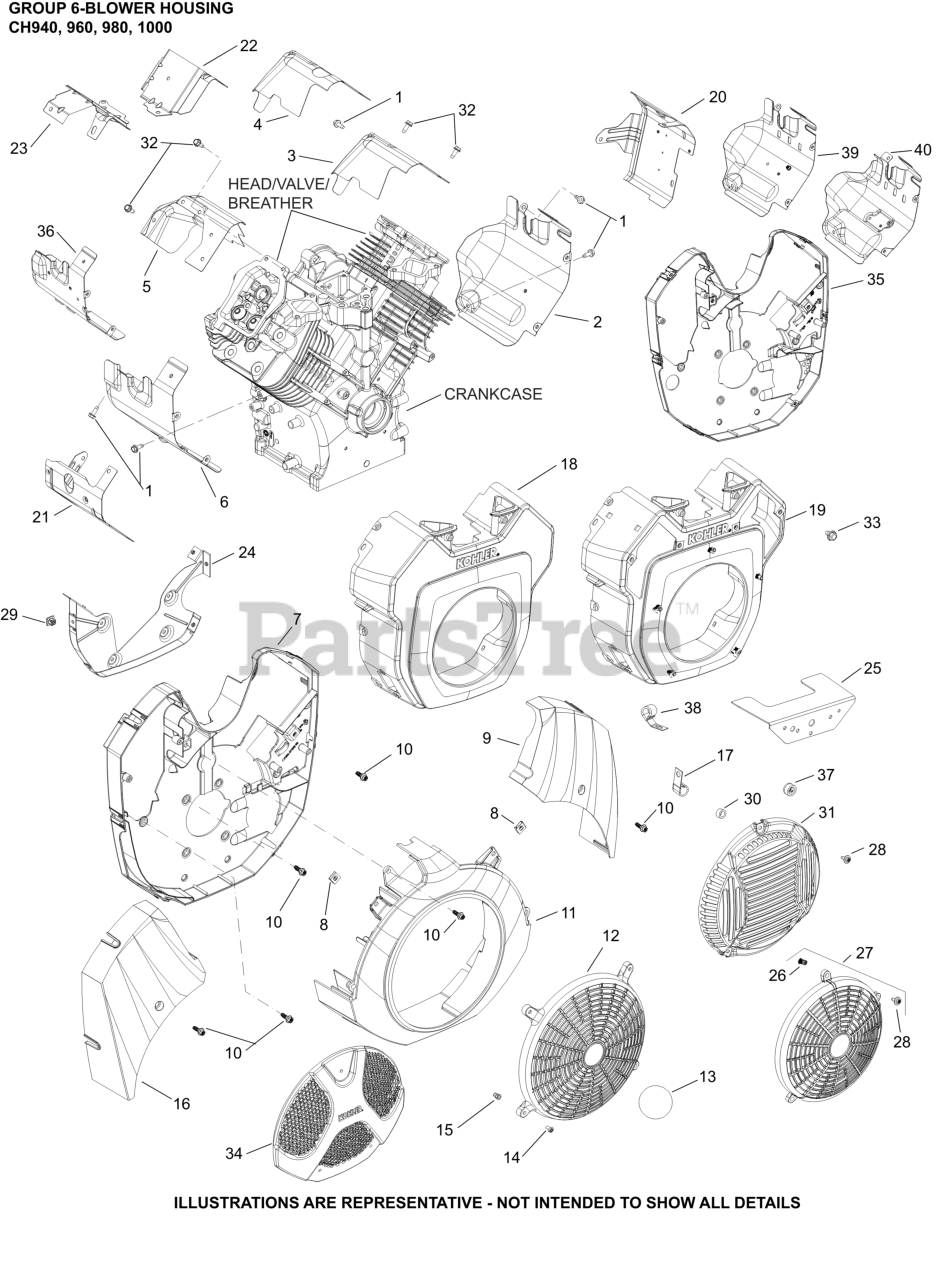

06 Blower Housing Parts Diagram

  • Title

1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 14

0

4

Kohler 62 063 37-S

BAFFLE, VALLEY #1 CYLINDER

$62.99

$

Usually ships in 2-5 days

0

5

Kohler 62 063 38-S

BAFFLE, VALLEY #2 CYL-USE 62 063 40-S
(Superseded to 62 063 40-S)

$62.99

$

Usually ships in 2-5 days

0

6

Kohler 62 063 32-S

BAFFLE, BARREL (#2 CYL)

$67.99

$

Usually ships in 2-5 days

0

7

Kohler 62 424 29-S

SHROUD AND CLIP ASSEMBLY

$39.99

$

Usually ships in 2-5 days

0

8

Kohler 25 154 37-S

CLIP, BAFFLE MOUNTING

$2.49

$

In Stock, Qty 12

0

9

Kohler 62 424 17-S

SHROUD, #1 CYLINDER

$11.99

$

In Stock, only 1 left!

0

10

Kohler 62 086 10-S

SCREW, SHD THD FRM

$2.99

$

In Stock, only 4 left!

0

11

Kohler 62 027 18-S

KIT, BLOWER HOUSING

$47.99

$

Usually ships in 2-5 days

0

12

Kohler 62 755 01-S

KIT, FIXED GUARD

$58.99

$

In Stock, only 1 left!

0

14

Kohler 24 086 35-S

SCREW, LBD SCKT PAN M5X0.8X10

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 62 424 18-S

SHROUD, #2 CYLINDER

$11.99

$

In Stock, only 1 left!

0

26

Kohler 25 332 19-S

INSERT, THREADED (M5)

$3.49

$

In Stock, Qty 5

0

40

Kohler 62 063 48-S

BAFFLE, BARREL (#1 CYL)

$21.99

$

Usually ships in 2-5 days

0

NI

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0
