CH750-0036 - Kohler Command PRO Engine, Made for Cgc-Steiner, 27hp, 747cc Cylinder Head/ Breather 4-24-579 Parts Diagram

Command PRO Engine, Made for Cgc-Steiner, 27hp, 747cc

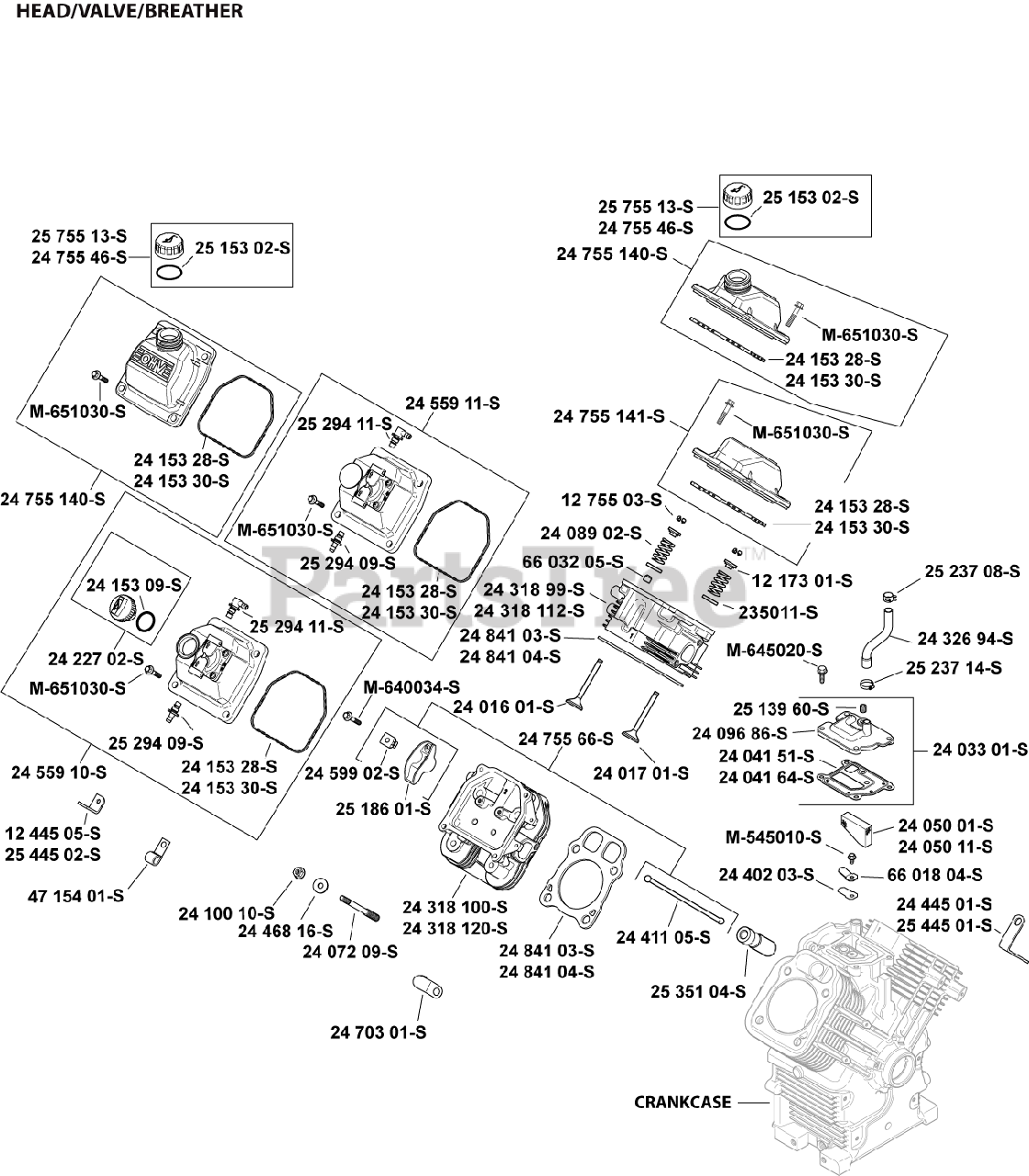

Cylinder Head/ Breather 4-24-579 Parts Diagram

  • Title

2432694-S

Kohler 24 326 94-S

HOSE, BREATHER

$5.49

$

Usually ships in 2-5 days

0

2523714-S

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

M-645020-S

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

2403301-S

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

Note: (includes 6-8)

$31.99

$

In Stock, only 2 left!

0

2513960-S

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

2409686-S

Kohler 24 096 86-S

COVER, BREATHER -USE 24 033 01-S
(Superseded to 24 033 01-S)

$31.99

$

In Stock, only 2 left!

0

2404151-S

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

6601804-S

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 6

0

2440203-S

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 7

0

2444501-S

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

2535104-S

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

Note: (includes 25 357 14-S)

$23.99

$

In Stock, only 4 left!

0

2441105-S

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 9

0

2484103-S

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S
(Superseded to 24 841 04-S)

Note: (includes Head Mounting Hardware & 24 041 49-S, 24 041 01-S)

$45.99

$

In Stock, Qty 20+

0

2518601-S

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

2459902-S

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

M-640034-S

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

2407209-S

Kohler 24 072 09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

2446816-S

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

2410010-S

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

M-651030-S

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

24755140-S

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

Note: (includes 27 [qnty 1], 29 [qnty 4])

$36.99

$

In Stock, only 1 left!

0

2575513-S

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

Note: (includes 36)

$13.99

$

In Stock, only 1 left!

0

2515302-S

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

2475566-S

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 15, 19, 20)

$45.99

$

In Stock, only 3 left!

0

2401701-S

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

2401601-S

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

6603205-S

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, only 2 left!

0

235011-S

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

2408902-S

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

1217301-S

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

1275503-S

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

24755141-S

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 27 [qnty 1], 29 [qnty 4])

$35.99

$

In Stock, only 2 left!

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

Note: NOT ILLUSTRATED

$

$

Not available

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: NOT ILLUSTRATED

$15.99

$

In Stock, only 3 left!

0

2405011-S

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

Usually ships in 2-5 days

0

24318120-S

Kohler 24 318 120-S

KIT, CYLINDER HEAD #2 USE 24 318 153-S
(Superseded to 24 318 209-S)

Note: (includes 25 072 04-S, M-645016-S [qnty 1], M-645020-S [qnty 1])

$251.99

$

Usually ships in 2-5 days

0

2415330-S

Kohler 24 153 30-S

O-RING (YELLOW), VALVE COVER
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

24318112-S

Kohler 24 318 112-S

KIT, CYLINDER HEAD #1 - USE 24 318 147-S
(Superseded to 24 318 208-S)

Note: (includes 25 072 04-S, M-645016 [qnty 1], M-645020-S [qnty 1]_

$247.99

$

Usually ships in 2-5 days

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED (SERVICES 1 HEAD. QUANTIEIS LISTED ARE FOR BOTH HEADS) (includes items 15, 19-21, 38, 39, 41-45)

$96.99

$

In Stock, only 3 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2404149-S

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 20+

0

2404101-S

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 7

0

2507204-S

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 3 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 15

0

M-645020-S

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0
