CH750-0036 - Kohler Command PRO Engine, Made for Cgc-Steiner, 27hp, 747cc Crankcase Group 2-24-245 Parts Diagram

Command PRO Engine, Made for Cgc-Steiner, 27hp, 747cc

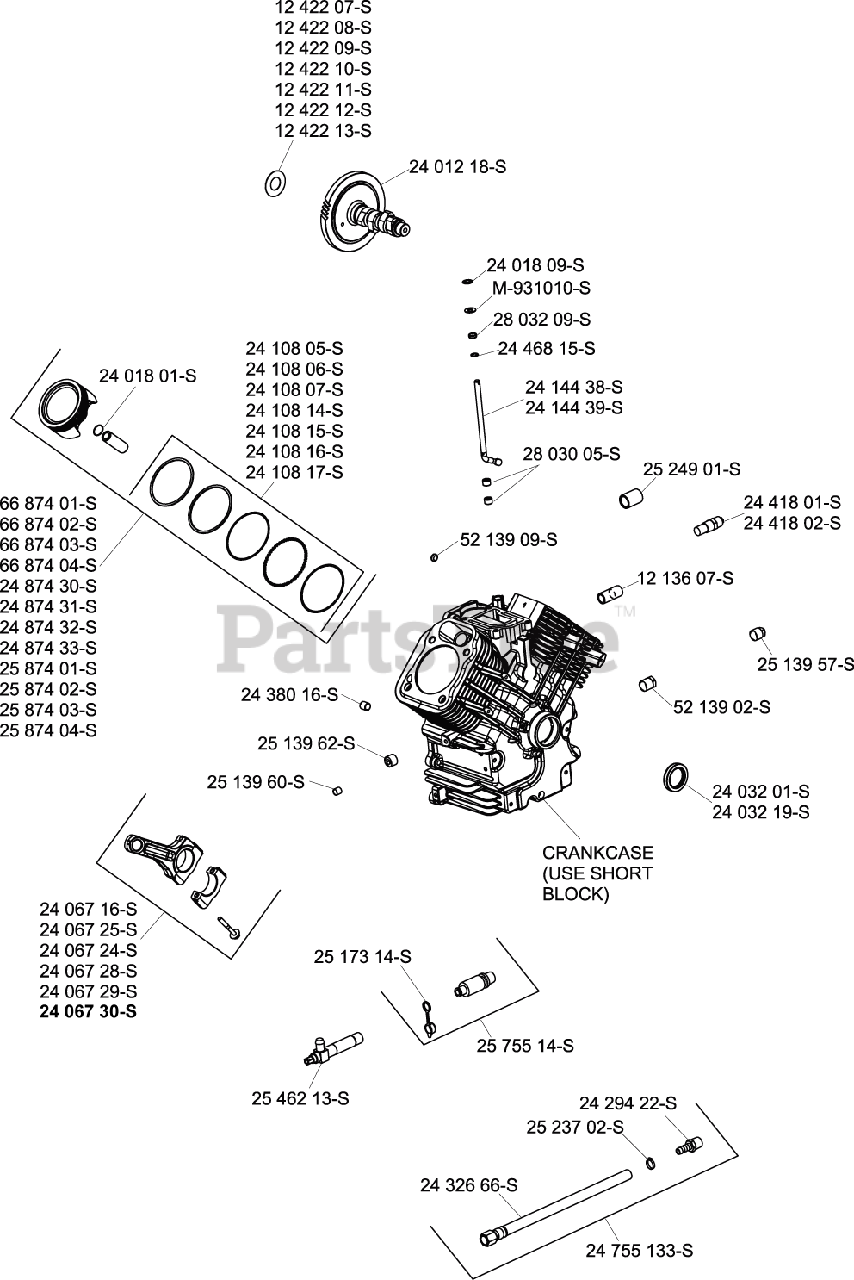

Crankcase Group 2-24-245 Parts Diagram

  • Title

CRANKCASE (USE SHORT BLOCK)

$

$

Not available

2438016-S

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

2401801-S

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

2401218-S

Kohler 24 012 18-S

KIT, CAMSHAFT

Note: (includes 25 357 14-S)

$

$

Not available

2401809-S

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

M-931010-S

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

2803209-S

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

2446815-S

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

2414438-S

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

5213909-S

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

2513957-S

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

2403219-S

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

2406724-S

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

2487430-S

Kohler 24 874 30-S

PISTON W/RINGS (STYLE A)(STD) - RING SET 24 108 14-S
(Superseded to 25 874 14-S)

Note: (includes 11, 12)

$174.99

$

In Stock, Qty 8

0

2487431-S

Kohler 24 874 31-S

PISTON W/RINGS (STYLE A)(.08) - RING SET 24 108 15-S
(Superseded to 25 874 10-S)

Note: (includes 11, 12)

$206.99

$

Usually ships in 2-5 days

0

2487432-S

Kohler 24 874 32-S

PISTON W/RINGS (STYLE A)(.25)-RING SET 24 108 16-S (#2587411S)
(Superseded to 25 874 11-S)

Note: (includes 11, 12)

$253.99

$

In Stock, only 1 left!

0

2487433-S

Kohler 24 874 33-S

PISTON W/RINGS (STYLE A)(.50) - RING SET 24 108 17-S - USE 25 874 04-S
(Superseded to 25 874 17-S)

Note: (includes 11, 12)

$261.99

$

Usually ships in 2-5 days

0

2410814-S

Kohler 24 108 14-S

DISC USE PISTON ASSY PER SPEC-RING SET(STD)STYLE A-1.5mm Tp RING THICK - Discontinued

$

$

Not available

2410815-S

Kohler 24 108 15-S

RING SET(.08)STYLE A-1.5mm Tp RING THICK

$103.99

$

In Stock, only 3 left!

0

2410816-S

Kohler 24 108 16-S

RING SET(.25)STYLE A-1.5mm Tp RING THICK

$103.99

$

In Stock, only 2 left!

0

2410817-S

Kohler 24 108 17-S

RING SET(.50)STYLE A-1.5mm Tp RING THICK

$

$

Not available

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
