CH745-0006 - Kohler Command PRO EFI Engine, Made for Las Tec, 28hp, 20.9kW Exhaust Group 11-24-147 Parts Diagram

Command PRO EFI Engine, Made for Las Tec, 28hp, 20.9kW

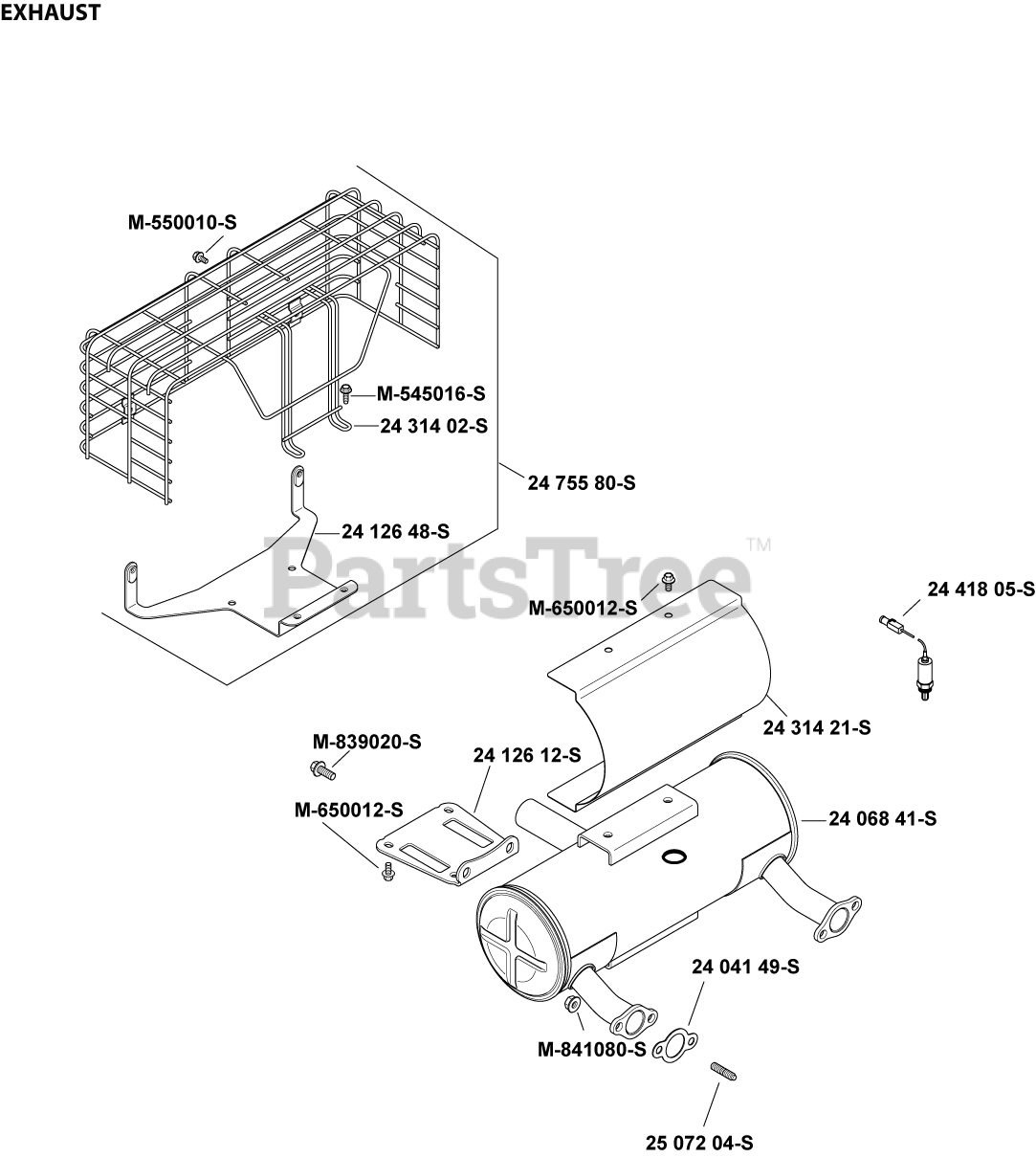

Exhaust Group 11-24-147 Parts Diagram

  • Title

2404149-S

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

2406841-S

Kohler 24 068 41-S

MUFFLER, CENTER OUTLET EFI USE 24 068 138-S
(Superseded to 24 068 138-S)

$318.99

$

Usually ships in 2-5 days

0

2507204-S

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, Qty 14

0

M-841080-S

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

2412612-S

Kohler 24 126 12-S

BRACKET, MUFFLER

$15.99

$

Usually ships in 2-5 days

0

2441805-S

Kohler 24 418 05-S

SENSOR, OXYGEN

$191.99

$

Usually ships in 2-5 days

0

M-650012-S

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

M-839020-S

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

2412648-S

Kohler 24 126 48-S

BRACKET, EXHAUST GUARD

$95.99

$

Usually ships in 2-5 days

0

2431402-S

Kohler 24 314 02-S

GUARD, MUFFLER

$153.99

$

Usually ships in 2-5 days

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

2475580-S

Kohler 24 755 80-S

KIT, MUFFLER GUARD

$245.99

$

Usually ships in 2-5 days

0

2431421-S

Kohler 24 314 21-S

SHIELD, HEAT USE 24 314 56-S
(Superseded to 24 314 56-S)

$82.99

$

Usually ships in 2-5 days

0
