CH745-0005 - Kohler Command PRO EFI Engine, Made for Western Arial, 28hp, 20.9kW Ignition/Electrical 5-24-684 Parts Diagram

Command PRO EFI Engine, Made for Western Arial, 28hp, 20.9kW

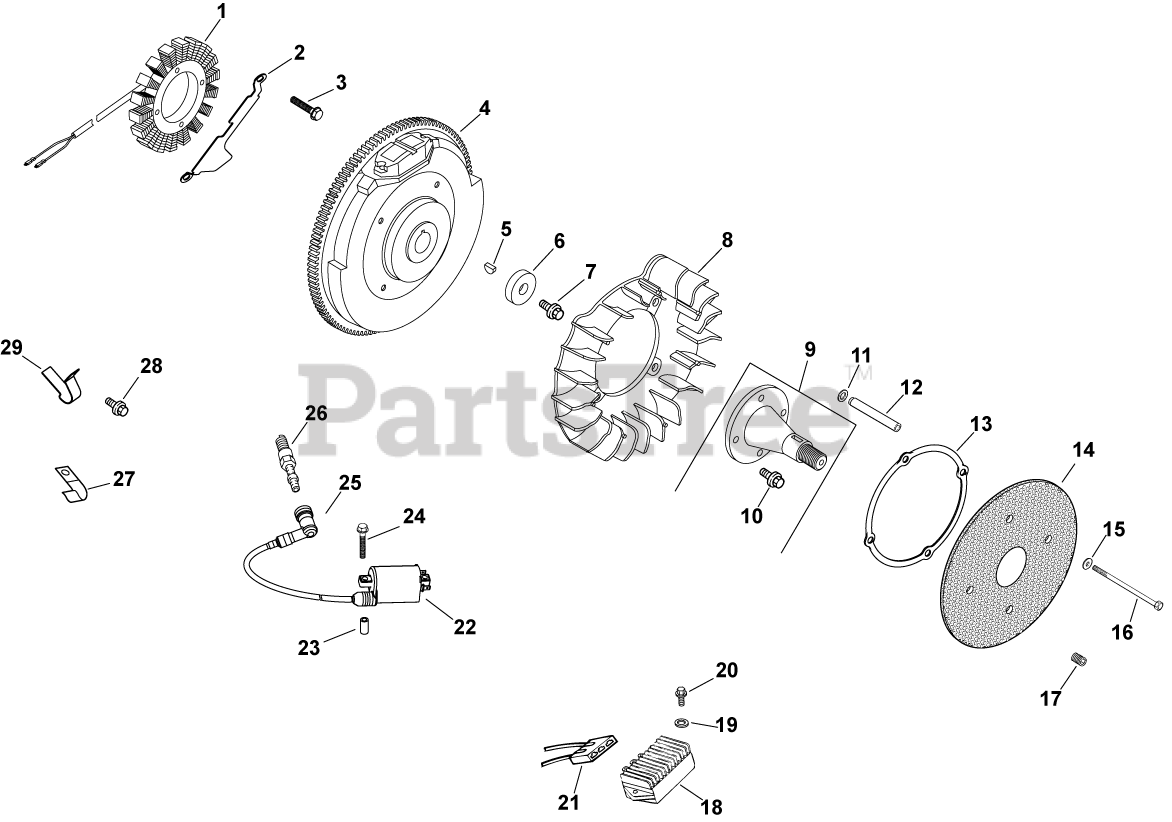

Ignition/Electrical 5-24-684 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

4

Kohler 24 025 30-S

FLYWHEEL, PAINTED-USE 24 025 23-S
(Superseded to 24 025 23-S)

$283.99

$

Usually ships in 2-5 days

0

5

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

6

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

7

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

8

Kohler 24 157 04-S

FAN

$79.99

$

Usually ships in 2-5 days

0

9

Kohler 24 755 08-S

KIT, FRONT DRIVE SHAFT

Note: (includes 10)

$174.99

$

Usually ships in 2-5 days

0

10

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

13

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

14

Kohler 24 162 38-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

15

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

16

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

17

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 25 403 08-S

REG-RECTIFIER (25 AMP)-USE 25 403 21-S
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

19

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

20

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

22

Kohler 24 519 02-S

COIL, IGNITION

$180.99

$

In Stock, only 1 left!

0

23

Kohler 24 112 16-S

SPACER

$29.99

$

Usually ships in 2-5 days

0

24

Kohler 24 086 48-S

SCREW,WSH HD TAP 1/4-14X1 1/2"

$

$

Not available

25

Kohler 24 131 02-S

BOOT, SPARK PLUG

$57.99

$

Usually ships in 2-5 days

0

26

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

27

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

28

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

29

Kohler 25 237 06-S

CLAMP, INSULATED
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

24755144-S

Kohler 24 755 144-S

KIT, FULL WAVE CONVERSION

Note: NOT ILLUSTRATED (includes 18, 25 452 01-S, 24 518 12-S & 25 155 41-S)

$165.99

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2510037-S

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 7

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2515541-S

Kohler 25 155 41-S

CONNECTOR

Note: NOT ILLUSTRATED

$24.99

$

In Stock, only 1 left!

0
