CH740-3375 - Kohler Command PRO Engine, Basic Version, 25hp, 725cc 08 Fuel System Parts Diagram

Command PRO Engine, Basic Version, 25hp, 725cc

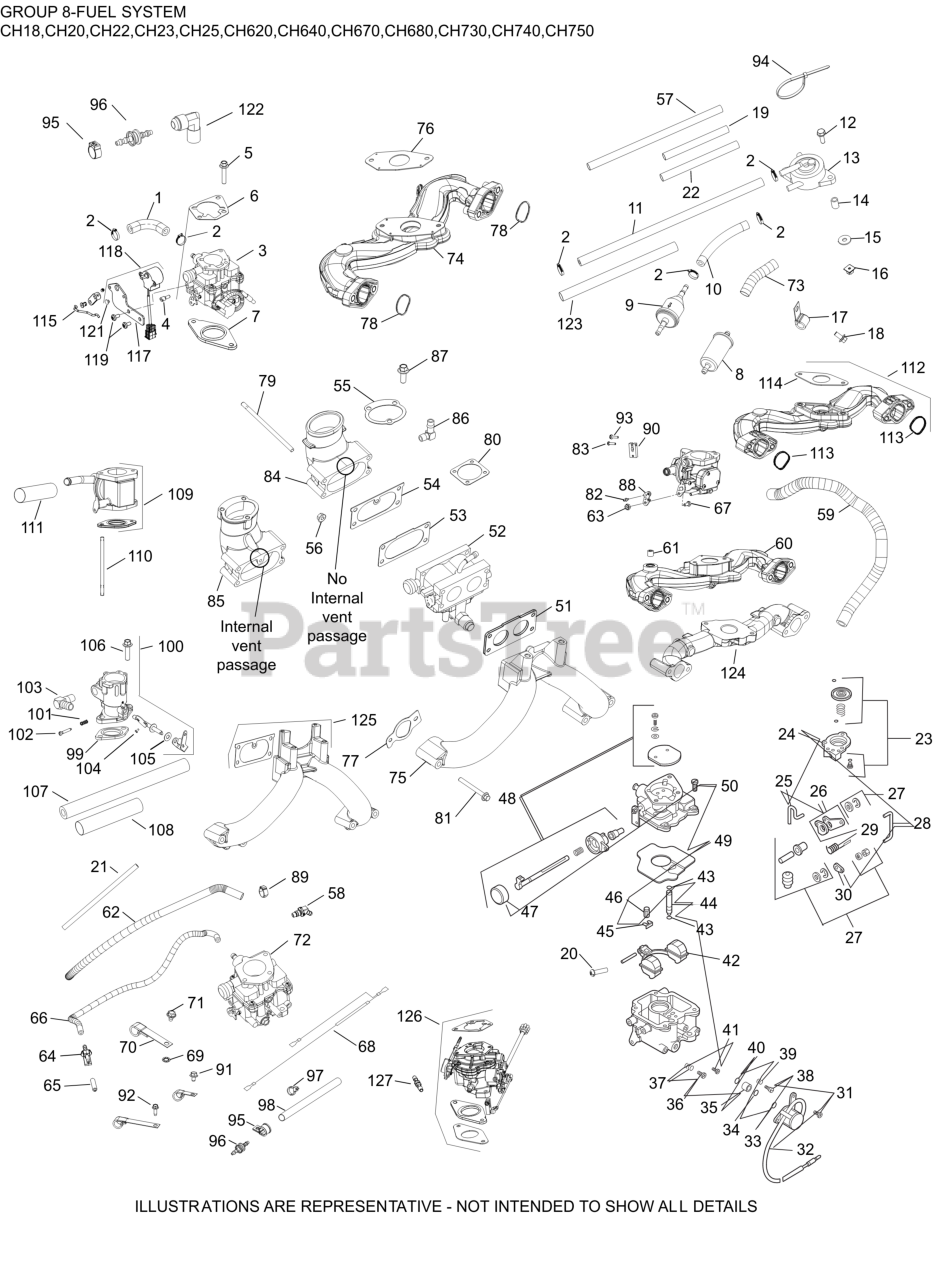

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

9

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

19

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

68

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0

69

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

72

Kohler 24 853 334-S

KIT, CARBURETOR COMPLETE

$286.99

$

Usually ships in 2-5 days

0

112

Kohler 24 164 275-S

INTAKE MANIFOLD W/GASKETS

$70.99

$

Usually ships in 2-5 days

0

113

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

Usually ships in 2-5 days

0

114

Kohler 24 041 92-S

GASKET, CARBURETOR (PIM, CH)

$5.99

$

Usually ships in 2-5 days

0

133

Kohler 24 111 98-S

FUEL HOSE, LOW-PERMEATION (FORMED)

$19.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 421-S

KIT, HIGH ALTITUDE (4000-8000 FEET)

$76.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 424-S

KIT, HIGH ALTITUDE (8000+ FEET)

$76.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 81-S

KIT, CARB OVERHAUL ACCEL PUMP NIKKI NDK

$178.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 83-S

KIT, CARB CHOKE REP ACCEL PUMP NIKKI NDK

$160.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 84-S

KIT, CARB ACCEL PUMP REPAIR NIKKI NDK

$102.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 85-S

KIT, CARB FUEL SOLENOID NIKKI NDK

$135.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 86-S

KIT, CARB FLOAT REPAIR NIKKI NDK

$79.99

$

Usually ships in 2-5 days

0
