CH740-3145 - Kohler Command PRO Engine, Made for Scag, 25hp, 725cc Air Intake/Filtration 10-24-359 Parts Diagram

Command PRO Engine, Made for Scag, 25hp, 725cc

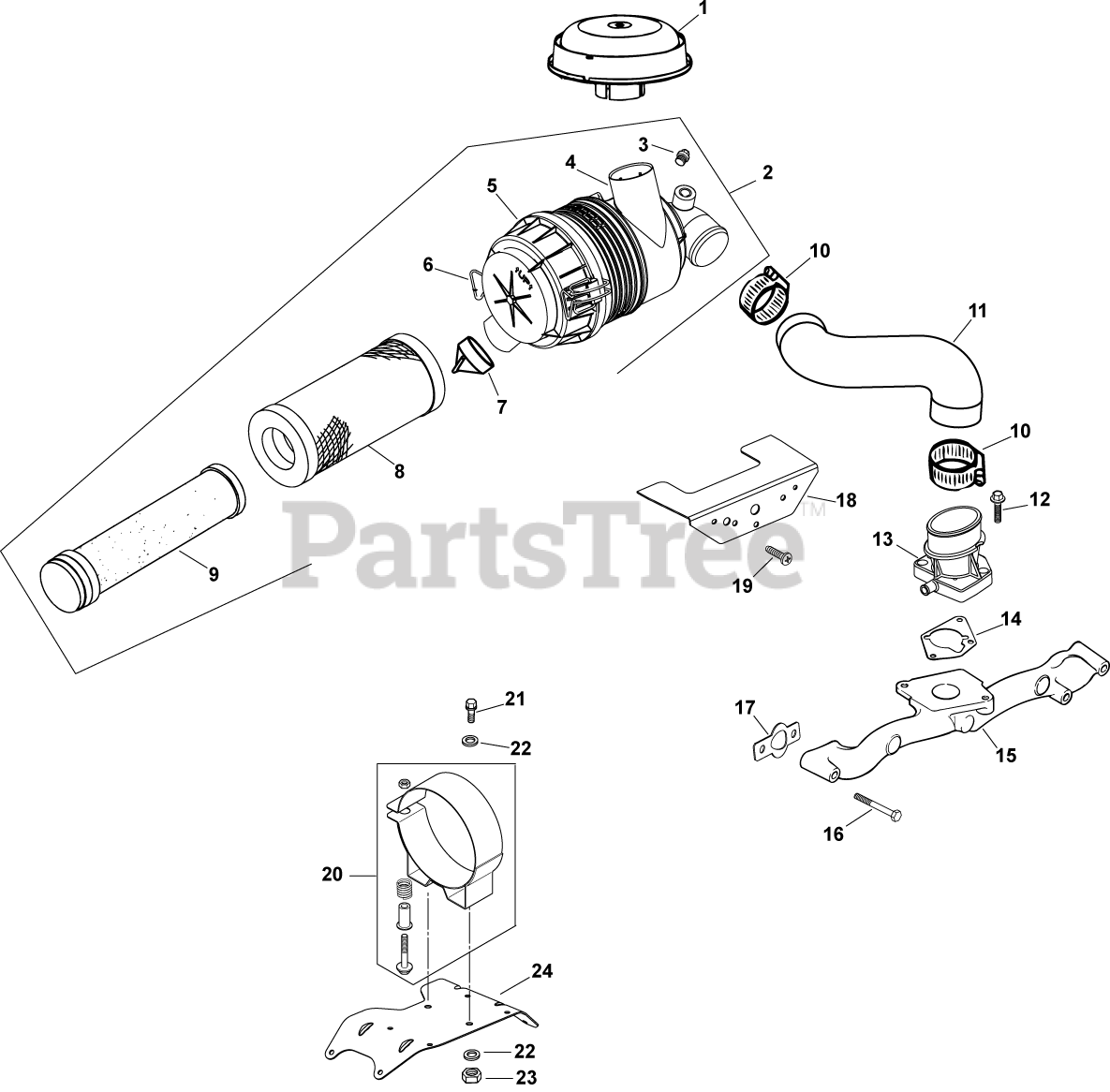

Air Intake/Filtration 10-24-359 Parts Diagram

  • Title
1

Kohler 25 324 04-S

HOOD, INLET

$49.99

$

In Stock, only 1 left!

0

2

Kohler 25 048 11-S

AIR CLNR, CANISTER-USE 25 048 17-S
(Superseded to 25 048 17-S)

Note: (includes 3-9)

$143.99

$

Usually ships in 2-5 days

0

3

Kohler 25 139 20-S

PLUG, PIPE

$8.99

$

Usually ships in 2-5 days

0

4

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

5

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

$87.99

$

In Stock, only 1 left!

0

6

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$13.99

$

In Stock, Qty 12

0

7

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 2 left!

0

8

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$32.99

$

In Stock, Qty 20+

0

9

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

10

Kohler 25 237 07-S

CLAMP, HOSE-USE 25 237 21-S
(Superseded to 25 237 21-S)

$7.99

$

In Stock, only 2 left!

0

11

Kohler 24 326 71-S

HOSE, AIR CLEANER

$22.99

$

Usually ships in 2-5 days

0

12

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

13

Kohler 24 029 82-S

KIT, REMOTE AIR CLEANER ADAPTER

$18.99

$

In Stock, only 2 left!

0

14

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

15

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

17

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

18

Kohler 24 314 25-S

SHIELD, DEBRIS

$44.99

$

Usually ships in 2-5 days

0

19

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

20

Kohler 24 126 191-S

BRACKET, AIR CLEANER

$62.99

$

Usually ships in 2-5 days

0

21

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

22

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

23

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 3 left!

0

24

Kohler 24 126 146-S

BRACKET, AIR CLEANER

$20.99

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2517334-S

Kohler 25 173 34-S

CAP, MASKING

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
