CH740-3137 - Kohler Command PRO Engine, Made for Toro, 25hp, 725cc Fuel System 8-24-788 CH18-750 Parts Diagram

Command PRO Engine, Made for Toro, 25hp, 725cc

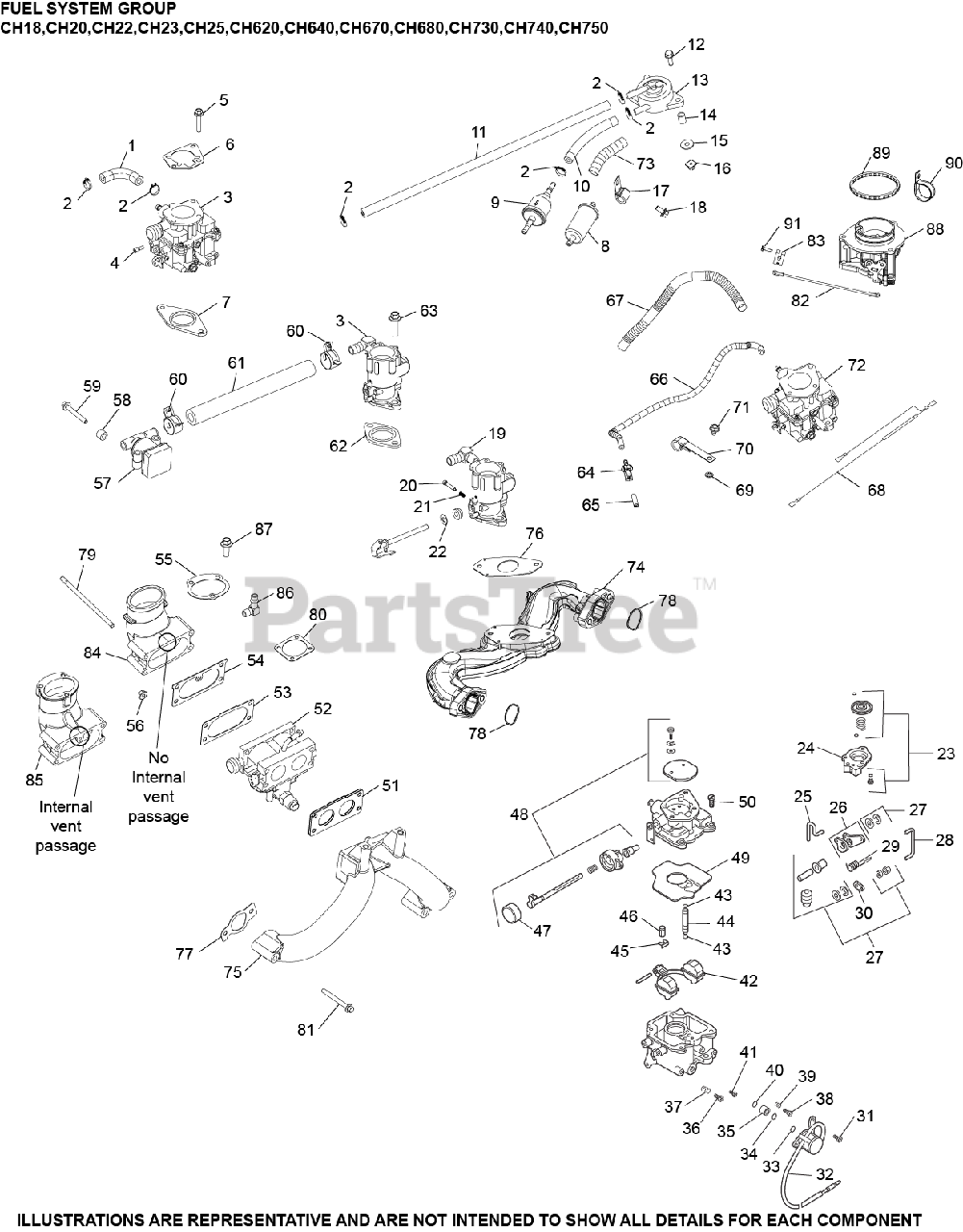

Fuel System 8-24-788 CH18-750 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 162-S

KIT, CARBURETOR (TIER III) USE 24 853 258-S
(Superseded to 24 853 307-S)

$337.99

$

Usually ships in 2-5 days

0

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

6

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

7

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 12

0

8

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

66

Kohler 25 326 28-S

HOSE, EVAPORATIVE

$4.49

$

In Stock, Qty 6

0

68

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0

69

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

73

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

74

Kohler 24 164 93-S

KIT, INTAKE MANIFOLD
(Superseded to 24 164 276-S)

$184.99

$

Usually ships in 2-5 days

0

76

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 7

0

78

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0
