CH740-3137 - Kohler Command PRO Engine, Made for Toro, 25hp, 725cc Engine Controls 9-24-440 CH18-750 Parts Diagram

Command PRO Engine, Made for Toro, 25hp, 725cc

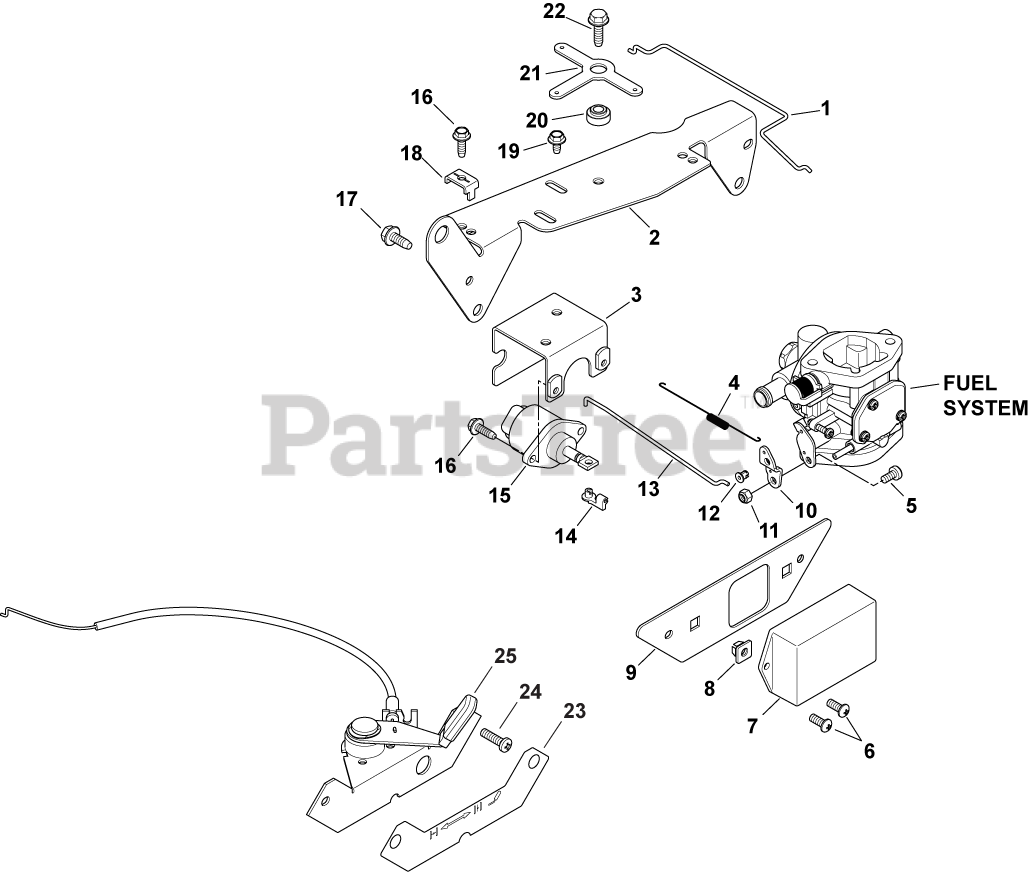

Engine Controls 9-24-440 CH18-750 Parts Diagram

  • Title

1

Kohler 24 079 18-S

LINKAGE, CHOKE

$13.99

$

Usually ships in 2-5 days

0

2

Kohler 24 126 114-S

BRACKET, CONTROLS
(Superseded to 24 126 268-S)

$39.99

$

Usually ships in 2-5 days

0

3

Kohler 24 126 115-S

BRACKET, ACTUATOR
(Superseded to 24 126 269-S)

$18.99

$

Usually ships in 2-5 days

0

4

Kohler 24 089 54-S

SPRING, LINKAGE

$15.99

$

In Stock, only 1 left!

0

5

Kohler 24 086 35-S

SCREW, LBD SCKT PAN M5X0.8X10

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 2 left!

0

7

Kohler 24 584 59-S

MODULE, ELEC GOVERNOR-USE 24 584 81-S
(Superseded to 24 584 81-S)

$290.99

$

Usually ships in 2-5 days

0

8

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 24 378 01-S

PANEL, FRONT CONTROL

$13.99

$

Usually ships in 2-5 days

0

10

Kohler 24 029 78-S

ADAPTER, CARB LEVER-USE 24 029 108-S
(Superseded to 24 029 108-S)

$27.99

$

Usually ships in 2-5 days

0

11

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

12

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

13

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 5

0

14

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

15

Kohler 24 179 02-S

KIT ACTUATOR, LINEAR-DIGITAL USE 25 179 01-S
(Superseded to 25 179 01-S)

$148.99

$

In Stock, only 1 left!

0

16

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

17

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

18

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

19

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

20

Kohler 15 112 08-S

SPACER

$2.99

$

Usually ships in 2-5 days

0

21

Kohler 24 090 39-S

LEVER, CHOKE
(Superseded to 24 090 77-S)

$7.49

$

Usually ships in 2-5 days

0

22

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

23

Kohler 24 113 127-S

DECAL, CONTROL PANEL

$13.99

$

In Stock, only 2 left!

0

24

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

25

Kohler 24 225 06-S

CABLE, CONTROL ASSEMBLY - USE 24 225 12-S
(Superseded to 24 225 12-S)

$47.99

$

Usually ships in 2-5 days

0

2510025-S

Kohler 25 100 25-S

NUT, 3/8-24 GRADE 2

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
