CH740-3136 - Kohler Command PRO Engine, Made for Toro, 25hp, 725cc Ignition/Electrical 5-24-1128 Parts Diagram

Command PRO Engine, Made for Toro, 25hp, 725cc

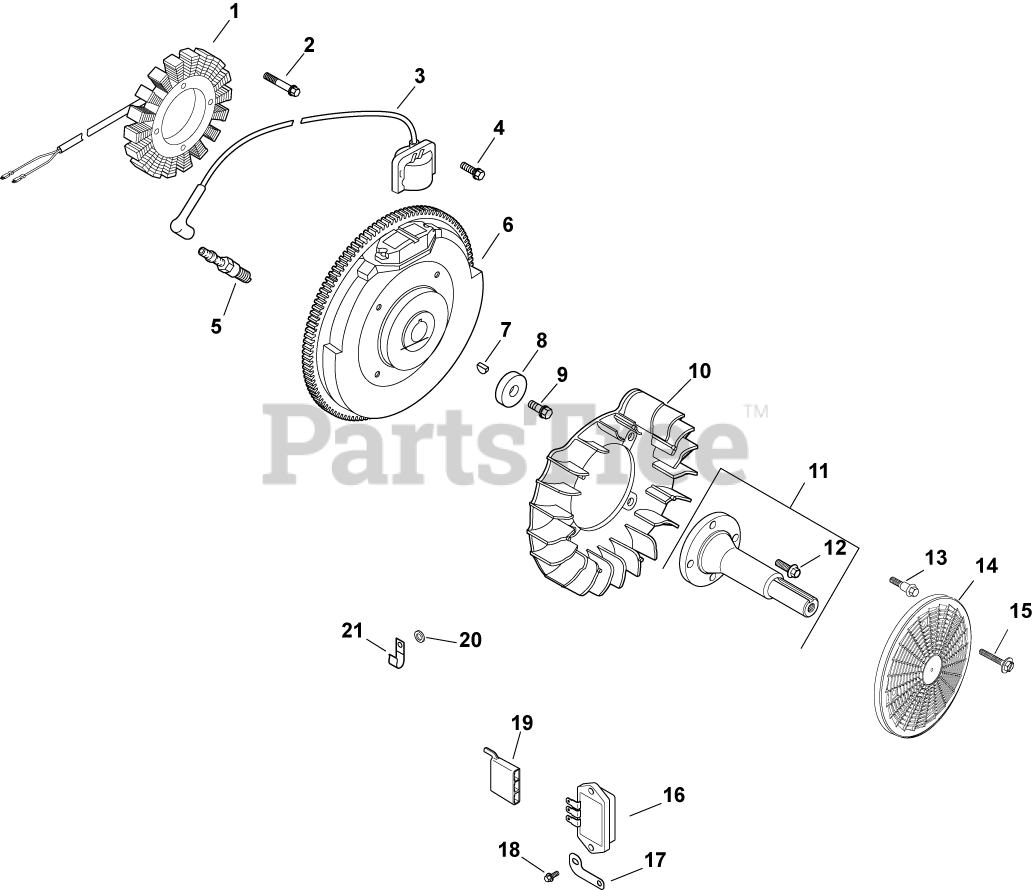

Ignition/Electrical 5-24-1128 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 010S)

$149.99

$

In Stock, Qty 8

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

3

Kohler 25 584 104-S

MODULE, MAGNETO DIGITAL IGNITION USE 25 584 14-S
(Superseded to 25 584 14-S)

$91.99

$

In Stock, only 2 left!

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

6

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

11

Kohler 24 144 13-S

SHAFT, FRONT DRIVE

Note: (includes 12)

$135.99

$

Usually ships in 2-5 days

0

12

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

14

Kohler 24 162 45-S

SCREEN, GRASS

$21.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, only 4 left!

0

16

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$

$

Not available

17

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

Usually ships in 2-5 days

0

18

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

19

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

20

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

21

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

24176193-S

Kohler 24 176 193-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$56.99

$

Usually ships in 2-5 days

0

2551839-S

Kohler 25 518 39-S

LEAD, DUPLEX ASSEMBLY

Note: NOT ILLUSTRATED

$15.99

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
