CH740-0094 - Kohler Command PRO Engine, Made for Vermeer, 25hp, 725cc Ignition/Electrical 5-24-1017 Parts Diagram

Command PRO Engine, Made for Vermeer, 25hp, 725cc

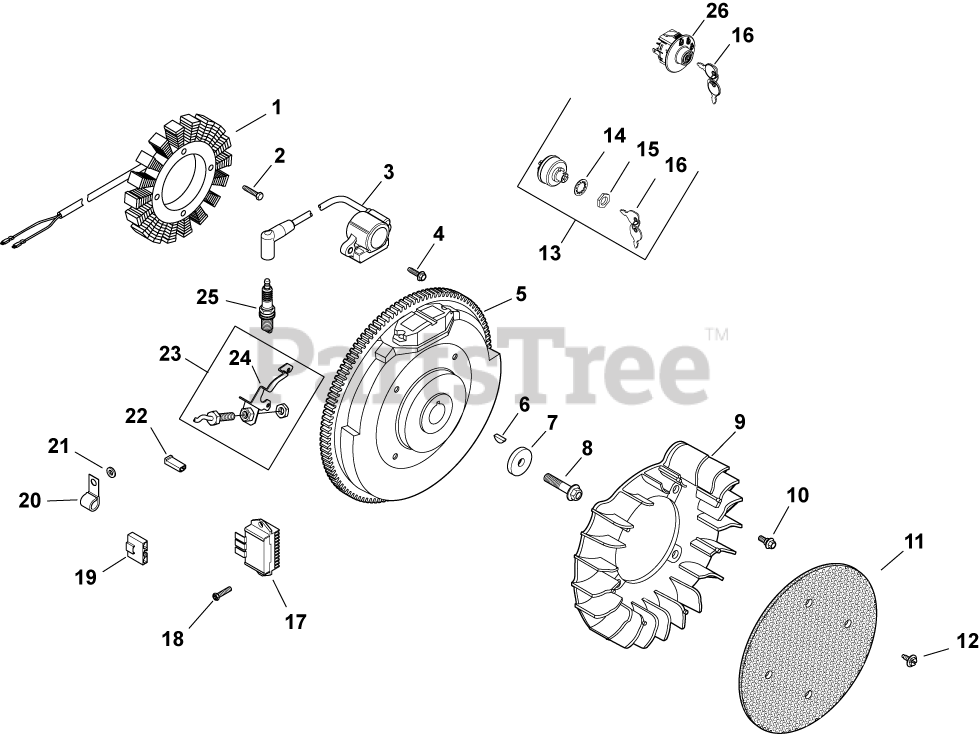

Ignition/Electrical 5-24-1017 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 52-S

MODULE, SPARK ADV -USE 24 584 89-S
(Superseded to 24 584 89-S)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 5

0

5

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 7

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 5

0

10

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

11

Kohler 24 162 35-S

SCREEN,GRASS LOW PRFLE W/O HOLE

$24.99

$

Usually ships in 2-5 days

0

12

Kohler 25 086 126-S

SCREW, SEMS DOG POINT

$5.49

$

In Stock, only 3 left!

0

13

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (Before S/N 3816800011)(includes 14-16)

$63.99

$

In Stock, only 4 left!

0

14

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

Note: (Before S/N 3816800011)

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 48 100 01-S

NUT, KEY SWITCH

Note: (Before S/N 3816800011)

$4.49

$

In Stock, only 1 left!

0

16

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

17

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

18

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

19

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

20

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

22

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

23

Kohler 24 418 14-S

KIT, SPEED SENSOR

Note: (includes 24)

$250.99

$

Usually ships in 2-5 days

0

24

Kohler 24 126 171-S

BRACKET, SENSOR MOUNTING

$65.99

$

Usually ships in 2-5 days

0

25

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

26

Kohler 25 099 30-S

KIT, KEY SWITCH (SNAP-IN)

Note: (After S/N 3816800001)

$36.99

$

In Stock, Qty 7

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

24176130-S

Kohler 24 176 130-S

HARNESS, DSAI WIRING

Note: NOT ILLUSTRATED

$33.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

24176142-S

Kohler 24 176 142-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$45.99

$

Usually ships in 2-5 days

0
