CH740-0087 - Kohler Command PRO Engine, Made for Exmark, 25hp, 725cc 03 Lubrication Parts Diagram

Command PRO Engine, Made for Exmark, 25hp, 725cc

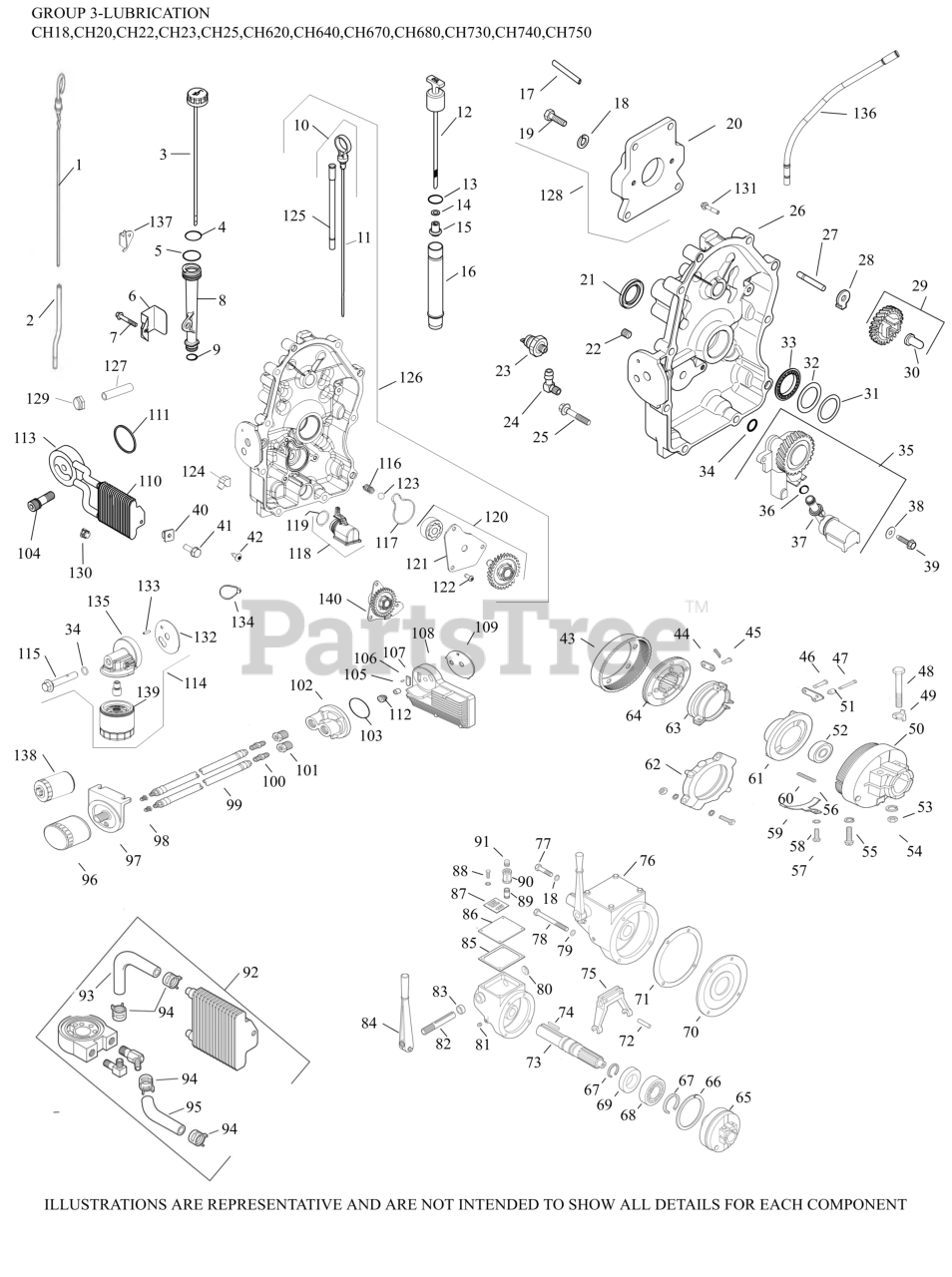

03 Lubrication Parts Diagram

  • Title

10

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$35.99

$

In Stock, Qty 6

0

11

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, only 4 left!

0

21

Kohler 25 032 06-S

OIL SEAL

$10.99

$

In Stock, Qty 16

0

23

Kohler 24 099 03-S

SENSOR, OIL PSI
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

24

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

25

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

27

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

28

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

29

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 10

0

30

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

34

Kohler 24 153 08-S

O-RING

Note: Before S/N 4327400011

$6.99

$

In Stock, only 2 left!

0

35

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: Pump discontinued order closure plate

$

$

Not available

36

Kohler 24 153 01-S

O-RING, OIL PICK-UP

Note: Before S/N 4327400011

$2.49

$

In Stock, Qty 8

0

37

Kohler 24 381 04-S

PICK-UP, OIL

Note: Before S/N 4327400011

$34.99

$

In Stock, only 1 left!

0

38

Kohler M-631005-S

WASHER, FLAT 6 MM

Note: Before S/N 4327400011

$2.49

$

In Stock, only 1 left!

0

39

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

Note: Before S/N 4327400011

$2.49

$

In Stock, only 2 left!

0

40

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

42

Kohler 25 086 49-S

SCREW, TAPPING
(Superseded to 24 086 12-S)

$

$

Not available

93

Kohler 24 326 17-S

KIT, HOSE 140MM

$16.99

$

In Stock, only 2 left!

0

96

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

104

Kohler 24 136 08-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

110

Kohler 24 594 57-S

COOLER, OIL & DIVERTER ASSEMBLY
(Superseded to 24 594 69-S)

$209.99

$

In Stock, only 1 left!

0

111

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 6

0

113

Kohler 24 029 80-S

ADAPTER, OIL FILTER (CV EFI)

$

$

Not available

116

Kohler 24 089 74-S

SPRING, COMPRESSION

Note: After S/N 4327400001

$2.49

$

In Stock, only 2 left!

0

117

Kohler 24 153 33-S

SEAL, OIL PUMP COVER

Note: After S/N 4327400001

$2.99

$

Usually ships in 2-5 days

0

118

Kohler 24 381 13-S

PICK-UP ASSEMBLY, OIL

Note: After S/N 4327400001

$7.49

$

Usually ships in 2-5 days

0

119

Kohler 24 153 34-S

O-RING, OIL PICK-UP

Note: After S/N 4327400001

$2.49

$

In Stock, only 1 left!

0

120

Kohler 24 393 70-S

PUMP ASSEMBLY, OIL

Note: After S/N 4327400001

$32.99

$

In Stock, only 2 left!

0

121

Kohler 24 096 151-S

COVER, OIL PUMP

Note: After S/N 4327400001

$2.49

$

In Stock, only 2 left!

0

122

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

Note: After S/N 4327400001

$2.49

$

In Stock, only 2 left!

0

123

Kohler 25 194 03-S

PRESSURE RELIEF BALL

Note: After S/N 4327400001

$2.49

$

In Stock, only 2 left!

0

126

Kohler 24 009 238-S

KIT, CLOSURE PLATE ASSY

Note: After S/N 4327400001

$406.99

$

Usually ships in 2-5 days

0

126

Kohler 24 009 83-S

CLOSURE PLATE USE 24 009 167-S
(Superseded to 24 009 238-S)

Note: Before S/N 4327400011

$406.99

$

Usually ships in 2-5 days

0

130

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

$4.49

$

In Stock, only 4 left!

0

131

Kohler 25 086 317-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 2 left!

0
