CH730-3276 - Kohler Command PRO Engine, Made for Canada Power, 23.5hp, 17.5kW Cylinder Head/Breather Group 4-24-653 Parts Diagram

Command PRO Engine, Made for Canada Power, 23.5hp, 17.5kW

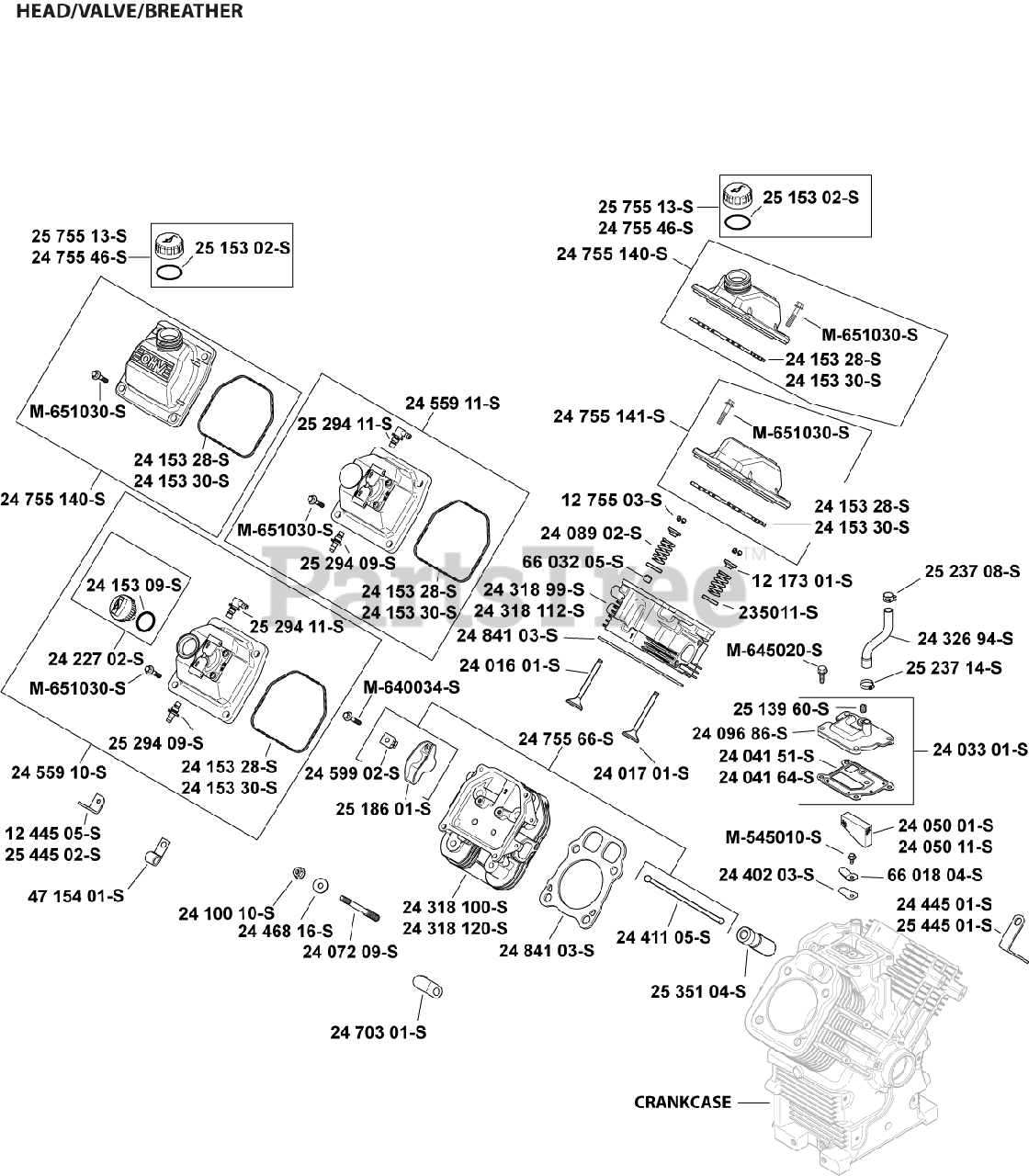

Cylinder Head/Breather Group 4-24-653 Parts Diagram

  • Title

2484104-S

Kohler 24 841 04-S

KIT, CYLINDER HEAD GASKET

Note: NOT ILLUSTRATED

$45.99

$

In Stock, Qty 14

0

2407209-S

Kohler 24 072 09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

2410010-S

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

24318106-S

Kohler 24 318 106-S

KIT, CYLINDER HEAD #1 - (#24318143S)
(Superseded to 24 318 143-S)

Note: NOT ILLUSTRATED

$235.99

$

In Stock, only 2 left!

0

24318114-S

Kohler 24 318 114-S

KIT, CYLINDER HEAD #2 USE 24 318 149-S
(Superseded to 24 818 02-S)

Note: NOT ILLUSTRATED

$237.99

$

In Stock, only 1 left!

0

2446816-S

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

2401701-S

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 13

0

6603205-S

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 20+

0

2401601-S

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, Qty 12

0

235011-S

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

1275503-S

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 7

0

2408902-S

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 4 left!

0

2441105-S

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

Usually ships in 2-5 days

0

2459902-S

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

2517328-S

Kohler 25 173 28-S

CAP, VALVE SPRING

Note: NOT ILLUSTRATED

$8.49

$

In Stock, only 3 left!

0

2518601-S

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 1 left!

0

2535110-S

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC - (#2535111S)
(Superseded to 25 351 11-S)

Note: NOT ILLUSTRATED

$23.99

$

In Stock, only 1 left!

0

M-640034-S

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

2575513-S

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

$13.99

$

In Stock, only 1 left!

0

24755140-S

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

$36.99

$

In Stock, only 1 left!

0

2415330-S

Kohler 24 153 30-S

O-RING (YELLOW), VALVE COVER
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

2422702-S

Kohler 24 227 02-S

CAP ASSY, OIL FILL (YELLOW)

$7.99

$

In Stock, Qty 6

0

2455910-S

Kohler 24 559 10-S

KIT, VALVE COVER-FUEL PUMP

$168.99

$

In Stock, Qty 11

0

25086395-S

Kohler 25 086 395-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2529409-S

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

2529411-S

Kohler 25 294 11-S

KIT, 90 DEG. FITTING

$11.99

$

In Stock, only 2 left!

0

2544502-S

Kohler 25 445 02-S

STRAP, LIFTING

$2.99

$

In Stock, only 1 left!

0

2544503-S

Kohler 25 445 03-S

STRAP, LIFT

Note: NOT ILLUSTRATED

$

$

Not available

M-651030-S

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

2405011-S

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

In Stock, Qty 7

0

2440203-S

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, only 1 left!

0

6601804-S

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 4 left!

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

2404167-S

Kohler 24 041 67-S

GASKET, BREATHER

Note: NOT ILLUSTRATED

$13.99

$

In Stock, Qty 18

0

2403301-S

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

2432696-S

Kohler 24 326 96-S

HOSE, BREATHER

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0

25086396-S

Kohler 25 086 396-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

2523708-S

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

2523714-S

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0
