CH730-0123 - Kohler Command PRO Engine, Made for Gen Mobile, 23.5hp, 17.5kW Air Intake/Flitration 10-24-9 CH18-750 Parts Diagram

Command PRO Engine, Made for Gen Mobile, 23.5hp, 17.5kW

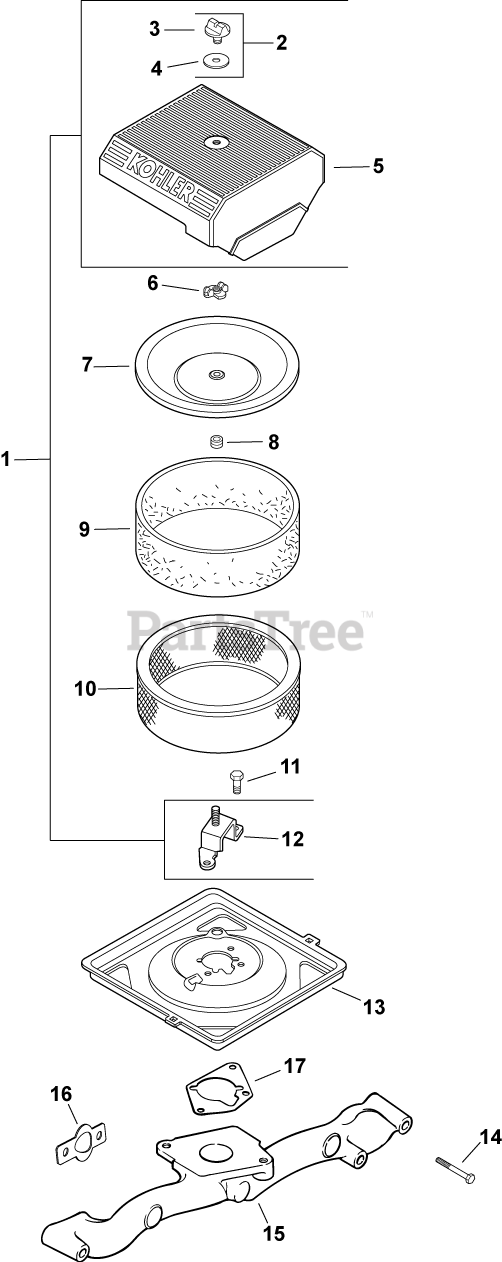

Air Intake/Flitration 10-24-9 CH18-750 Parts Diagram

  • Title

1

Kohler 24 743 05-S

KIT, AIR CLEANER COVER

Note: (includes 2-5,12)

$90.99

$

In Stock, only 1 left!

0

2

Kohler 54 755 01-S

KIT, KNOB W/SEAL

$9.49

$

In Stock, only 2 left!

0

3

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 67-S

COVER, AIR CLEANER

$47.99

$

In Stock, only 1 left!

0

6

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 1 left!

0

7

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

8

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

9

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

$6.99

$

In Stock, only 2 left!

0

10

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

In Stock, only 4 left!

0

11

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.49

$

In Stock, Qty 6

0

12

Kohler 24 126 88-S

BRACKET, AIR CLEANER-USE 24 126 210-S
(Superseded to 24 126 226-S)

$13.99

$

In Stock, only 2 left!

0

13

Kohler 24 094 37-S

BASE, AIR CLEANER -USE 24 094 88-S
(Superseded to 24 094 88-S)

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0
