CH730-0112 - Kohler Command PRO Engine, Made for Cushman, 23.5hp, 17.5kW Oil Pan/Lubrication 3-24-217 Parts Diagram

Command PRO Engine, Made for Cushman, 23.5hp, 17.5kW

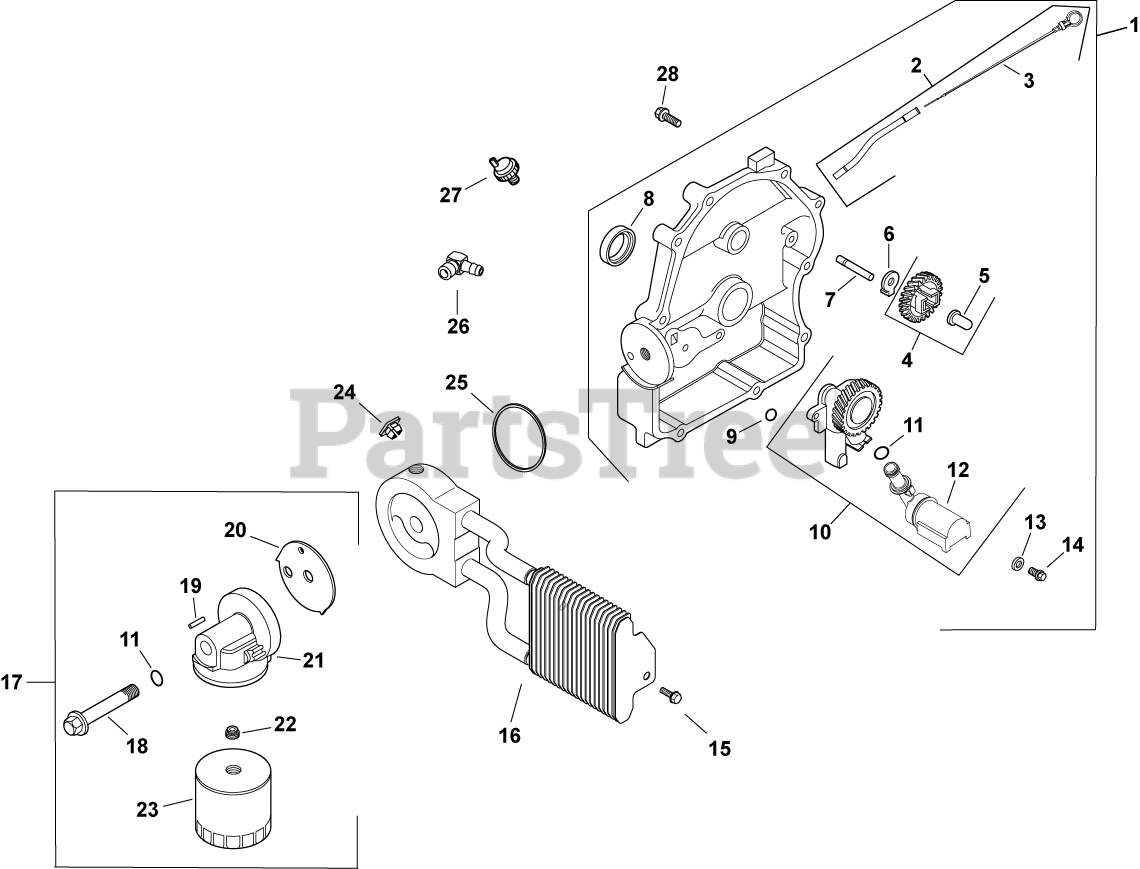

Oil Pan/Lubrication 3-24-217 Parts Diagram

  • Title

1

Kohler 24 009 150-S

CLOSURE PLATE ASSEMBLY USE 24 009 237-S
(Superseded to 24 009 237-S)

Note: (includes 2-14)

$609.99

$

In Stock, only 1 left!

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (includes 3)

$35.99

$

In Stock, Qty 6

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 5)

$68.99

$

In Stock, Qty 10

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

6

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

8

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 15

0

9

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

10

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 11, 12)

$

$

Not available

11

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

12

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 1 left!

0

13

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

14

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

16

Kohler 24 594 33-S

KIT, OIL COOLER - DISCONTINUED

$

$

Not available

17

Kohler 24 702 01-S

KIT, OIL FILTER BASE(ROT)

Note: (includes 11, 18-23)

$251.99

$

Usually ships in 2-5 days

0

18

Kohler 24 211 01-S

BOLT, OIL FILTER ADAPTER

$127.99

$

Usually ships in 2-5 days

0

19

Kohler 24 380 09-S

PIN, ROLL

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 24 041 29-S

GASKET, OIL FILTER ADAPTER USE 24 041 88-S
(Superseded to 24 041 88-S)

$5.49

$

In Stock, Qty 8

0

21

Kohler 24 029 01-S

ADAPTER, OIL FILTER-USE 24 029 77-S
(Superseded to 24 029 77-S)

$136.99

$

Usually ships in 2-5 days

0

22

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

23

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

24

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

25

Kohler 24 153 25-S

O-RING

$6.99

$

In Stock, only 2 left!

0

26

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

27

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

28

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0
