CH730-0111 - Kohler Command PRO Engine, Made for Rayco, 23.5hp, 17.5kW Air Intake/Filtration Parts Diagram

Command PRO Engine, Made for Rayco, 23.5hp, 17.5kW

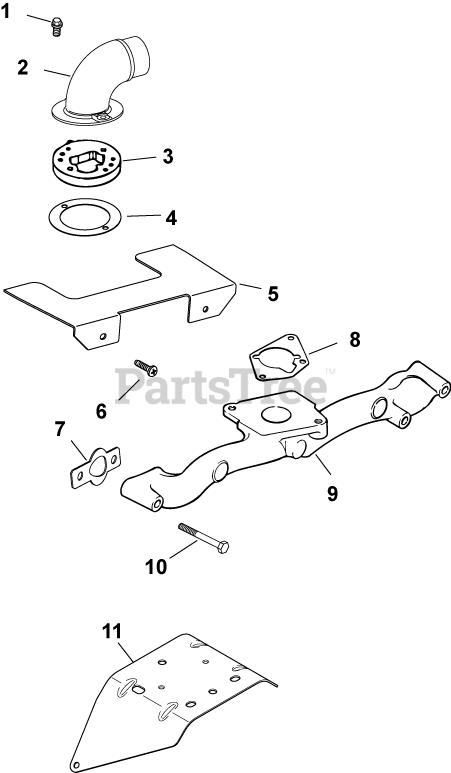

Air Intake/Filtration Parts Diagram

  • Title

1

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 7

0

2

Kohler 24 029 21-S

ADAPTER, REMOTE AIR CLEANER

$139.99

$

Usually ships in 2-5 days

0

3

Kohler 24 029 64-S

ADAPTER ASSEMBLY (CH730)-USE 24 029 96-S
(Superseded to 24 029 96-S)

$395.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 34-S

GASKET, ADAPTER

$3.49

$

Usually ships in 2-5 days

0

5

Kohler 24 314 29-S

SHIELD, DEBRIS

$20.99

$

Usually ships in 2-5 days

0

6

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

7

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

8

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

9

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

11

Kohler 24 126 146-S

BRACKET, AIR CLEANER

$20.99

$

Usually ships in 2-5 days

0

2474321-S

Kohler 24 743 21-S

KIT, AIR CLEANER ELBOW

Note: NOT ILLUSTRATED

$528.99

$

Usually ships in 2-5 days

0
